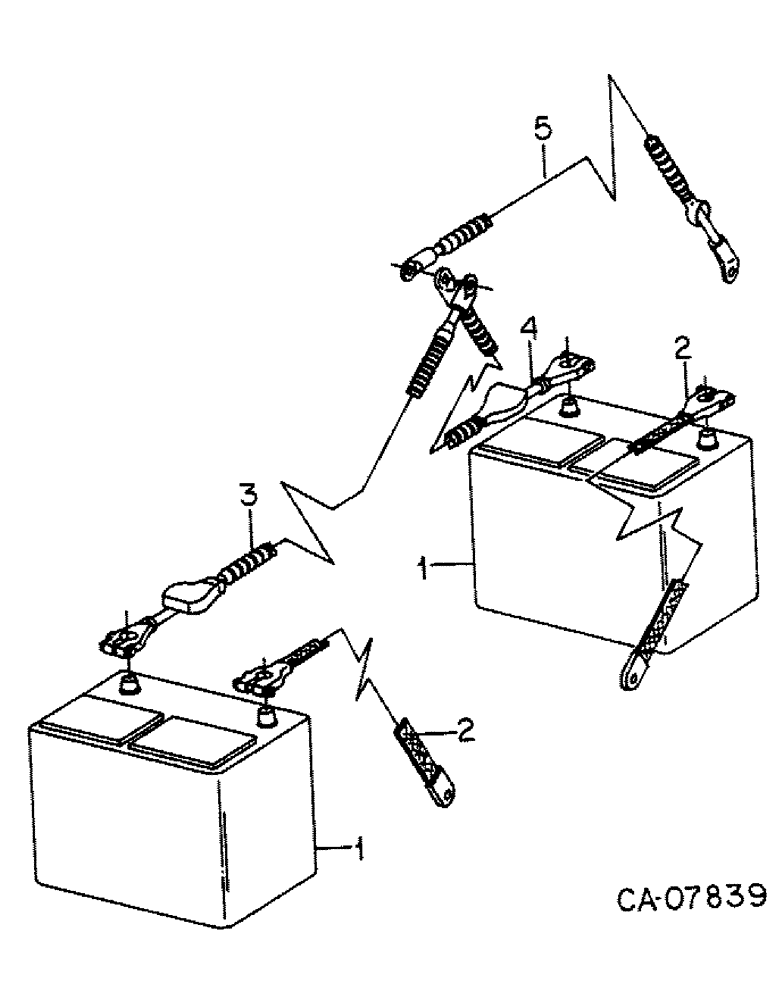

Запчасти Case IH 5488 (08-18) - ELECTRICAL, BATTERY AND CONNECTIONS (06) - ELECTRICAL

1

121787C1

DRY BATTERY

12 volt maintenance free

2шт.

2

1251928C1

STRAP

ASSY, Serial Range: battery-ground

2шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal, Furnished as part of strap assy, 1251928C1

2шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

2шт.

933965R1

LOCK WASHER,M10

2шт.

3

148621C1

CABLE

ASSY, RH battery to cranking motor

1шт.

383619R1

COVER

battery cable terminal large, Furnished as part of cable assy, 148621C1

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal, Furnished as part of cable assy, 148621C1

1шт.

4

148621C1

CABLE

ASSY, LH battery to cranking motor

1шт.

383619R1

COVER

battery cable terminal large, Furnished as part of cable assy, 148621C1

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal, Furnished as part of cable assy, 148621C1

1шт.

5

1251611C3

CABLE

ASSY, junction block to cranking motor

1шт.

364910R1

BOOT

COVER, battery terminal, Furnished as part of cable assy, 1251611C3

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, Used on cranking motor solenoid switch, S, terminal, used only w/harness, 245182C1

1шт.

107410C1

INSULATOR

terminal cover boot, Used on, bat, terminal

1шт.
