Запчасти Case IH 5488 (08-13) - ELECTRICAL, FRONT FLOOD LIGHT MOUNTING, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

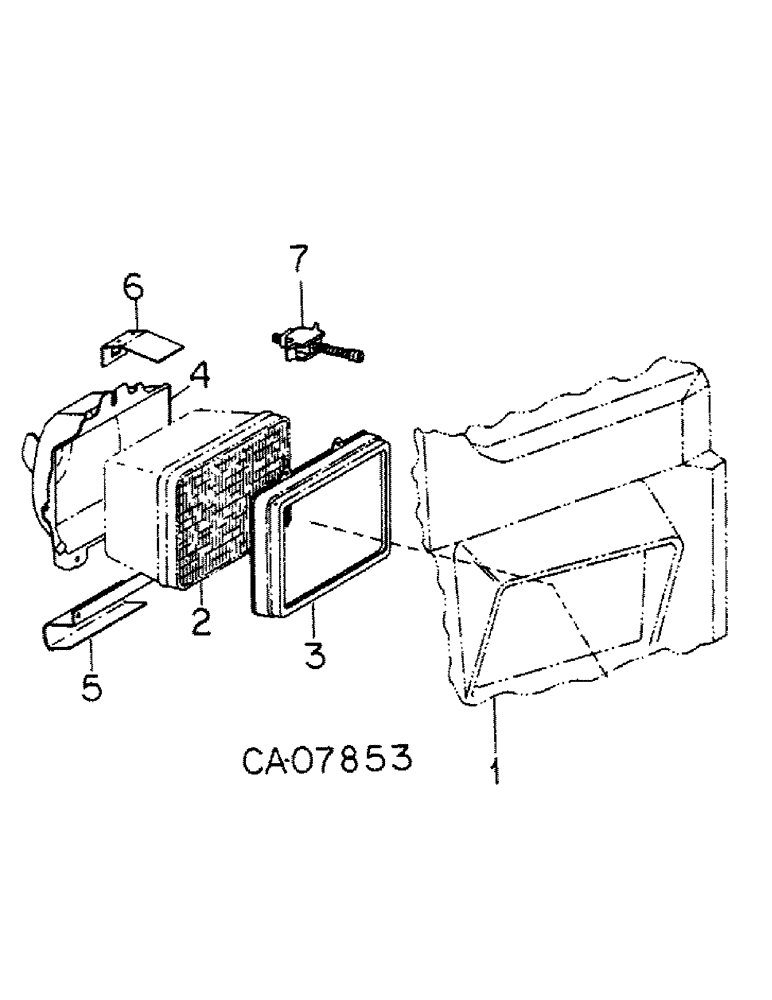

Схема запчастей Case IH 5488 - (08-13) - ELECTRICAL, FRONT FLOOD LIGHT MOUNTING, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL
6
2
7
5
1
3
4

Артикул

Название

Примечание

Количество

1

PANEL, front lower, Refer to deluxe control center, group 13

1шт.

2

146479C1

HEADLIGHT

LIGHT, rectangular front flood, Refer to tractor flood and head lights, this group

2шт.

146479C1 - if dlr looking for rubber boot, per qual comments order 131227C92 light assembly

1шт.

131277C92 light now subs to 146479C1 and 334740A1 mount

1шт.

3

146478C1

RING

retaining

2шт.

4

146477C1

RING

front flood light mounting, LH

1шт.

4

146476C1

RING

front flood light mounting, RH

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

8шт.

5

143275C1

SUPPORT

front flood light mtg

2шт.

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

8-18 x 1/2 phc p/hd cr/rec tap

8шт.

6

143276C1

SUPPORT

front flood light aiming

2шт.

7

143279C1

SCREW

ASSY, flood light aiming

2шт.

Выбрано товаров: 12
