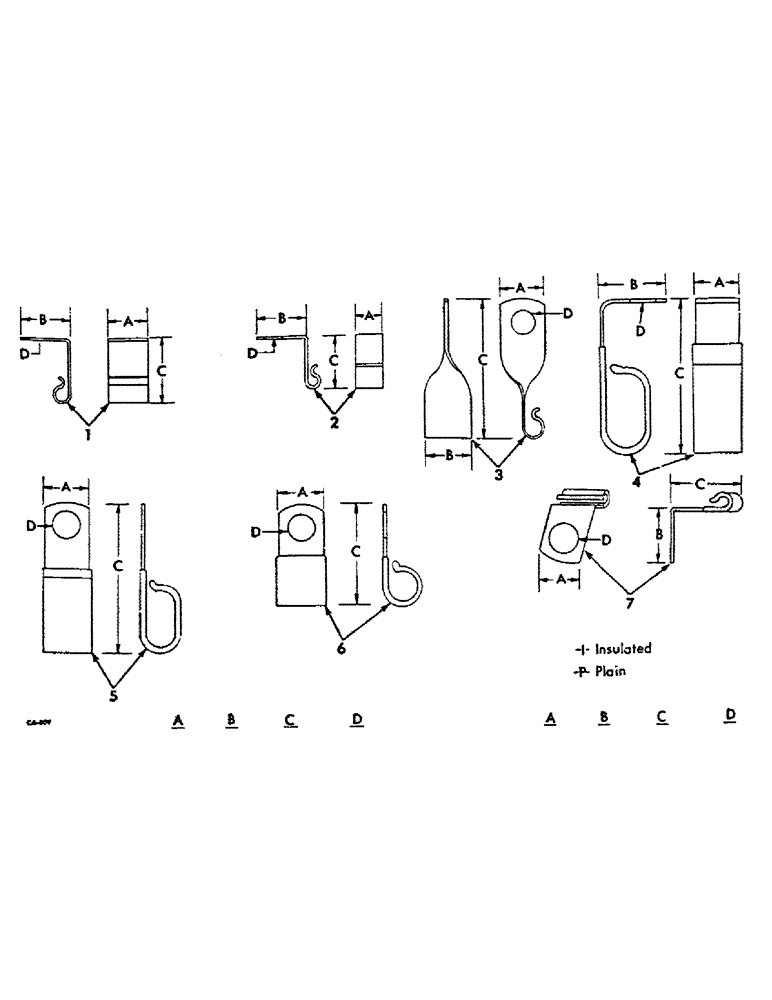

Запчасти Case IH 5488 (08-12) - ELECTRICAL, CLIPS (06) - ELECTRICAL

1

365584R1

CLIP

cranking motor, S, term cable, Insulated, 3/4, 1, 1, 13/32

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

495-21044

WASHER,3/8"

(.438 x 1.000 x .064 pln) 3/8"

2шт.

1

370383R1

CLIP

rear light harness, Insulated, 3/4, 15/16, 1-3/4, 15/32

2шт.

1

370383R1

CLIP

fender harness, LH, Insulated, 3/4, 15/16, 1-3/4, 15/32

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

363660R1

CLIP

engine harness, Insulated, 3/4, 3/4, 2-5/8, 13/32

1шт.

363660R1

CLIP

main harness, twisted, Insulated, 3/4, 3/4, 2-5/8, 13/32

2шт.

931466R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

M8 x 12 phc class 8.8

2шт.

934309R1

LOCK WASHER,M8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

384554R1

CLIP

hi-lo switch cables, Insulated, 3/4, 1-35/64, 13/32

1шт.

6

362123R1

CLIP

headlight and horn cable, Insulated, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

harness, Insulated, 3/4, 2-1/8, 15/32

2шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

6

384554R1

CLIP

ether solenoid cable, Insulated, 3/4, 1-35/64, 13/32

1шт.

6

670043C1

CLIP

neutral start cable, Insulated, 3/4, 3-5/8, 13/32

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, solenoid switch cables, Insulated, 3/4, 3-5/8, 13/32

2шт.

6

362123R1

CLIP

engine harness rear, Insulated, 3/4, 2-1/8, 15/32

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

6

366460R1

CABLE CLIP

CLIP, flood light harness, Insulated, 3/4, 1-1/4, 13/32

2шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

2шт.

934309R1

LOCK WASHER,M8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

6

362126R1

CLIP

air compressor cables, Insulated, 3/4, 3-5/8, 9/32

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 class 8.8

1шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

6

362122R1

CLIP

shift pressure switch cables, Insulated, 3/4, 15/16, 1-7/8, 13/32

2шт.

6

362667R1

CLIP

auxiliary lighting cable, Insulated, 3/4, 1-61/64, 15/32

3шт.

6

366460R1

CABLE CLIP

CLIP, all wheel drive junction to switch harness, Insulated, 3/4, 1-1/4, 13/32

1шт.

6

362121R1

CLIP

all wheel drive junction to switch harness, Insulated, 3/4, 1-9/16, 9/32

1шт.

6

358986R1

CABLE CLIP

CLIP, tail light cable, Mount on flood light stud, Insulated, 1-15/16, 17/32

2шт.

6

1251744C2

CLAMP

CLIP, fender harness, RH, Insulated, 2-5/16, 7/16

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

104393C2

CLAMP

CLIP, main cable harness

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

1шт.

104389C1

CLIP

instrument light cables

2шт.

1251721C1

CLAMP

CLIP, twisted main harness

1шт.

104389C1

CLIP

dimmer switch cables

1шт.

1255746C1

CLAMP

CLIP, engine harness

1шт.

1255747C1

CLAMP

CLIP, engine harness

1шт.
