Запчасти Case IH 5488 (08-06) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL

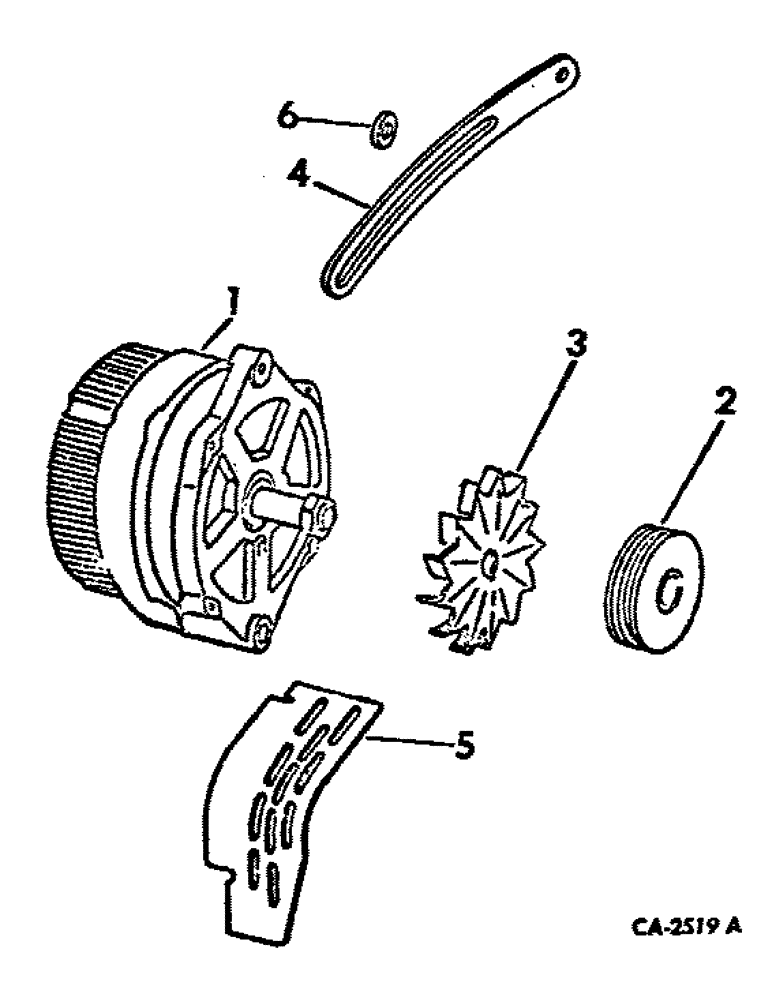

Схема запчастей Case IH 5488 - (08-06) - ELECTRICAL, ALTERNATOR-GENERATOR MOUNTING (06) - ELECTRICAL
3
5
1
4
6
2

Артикул

Название

Примечание

Количество

1

1105164

ALTERNATOR

ALTERNATOR-GENERATOR, 61 ampere, For tractors w/ROPS, Replaces 1103183, or

1шт.

1

107560C91

ALTERNATOR

ALTERNATOR-GENERATOR, 62 amp Motorola, For tractors w/ROPS

1шт.

1

1105178

ALTERNATOR

ALTERNATOR-GENERATOR, 72 ampere, replaces 1103184, For tractors w/air conditioned cab attachment

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New PN 1105178

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 63 Amp Alternator

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 100 Amp Alternator

1шт.

1

1105538

GENERATOR

ALTERNATOR-GENERATOR, 105 ampere, For tractors w/deluxe air conditioned cab attachment, Replaces 1101440

1шт.

For components see list of parts under details of alternator generator.

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 105 ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103808A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103808A1R

REMAN-ALTERNATOR

Reman For New PN 1105538

1шт.

1

103808A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

107241C91

GENERATOR

ALTERNATOR-GENERATOR, Heavy duty 100-amp, For tractors operating in high debris conditions

1шт.

1

107241C91R

REMAN-ALTERNATOR

5088, 5288, 5488, 12 Volt 100 Amp

1шт.

1

107241C91C

CORE-ALTERNATOR

Return Number

1шт.

For components see list of parts under details of alternator generator.

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

2

131042C1

PULLEY

PULLEY, alternator-generator, double groove, Optional w/1252602C1

1шт.

2

1252602C1

X

PULLEY, alternator-generator double groove, Optional w/131042C1

1шт.

3

221425R1

FAN

FAN, alternator-generator, Used w/1103183 and 1103184, 107241C91 and 1105164

1шт.

3

1978026

FAN

FAN, alternator-generator, Used w/1101440 and 1105538

1шт.

4

146489C1

BRACE

BRACE, alternator-generator, For alternator-generators, 146487C91 and 1105538

1шт.

4

532418R1

BRACE

BRACE, alternator-generator, For alternator-generators, 146580C91 107241C91, 1105164 and 107560C91

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm phc

1шт.

931103R1

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

BOLT, M8 x 35 pln class 8.8

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

LOCK NUT, M8 phc p/t class 10

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

SEE HARDWARE LISTED UNDER ALTERNATOR BRACE

1шт.

A184600

BRACKET

link adjusting

1шт.

A184601

BRACKET

brochett

1шт.

Выбрано товаров: 49
