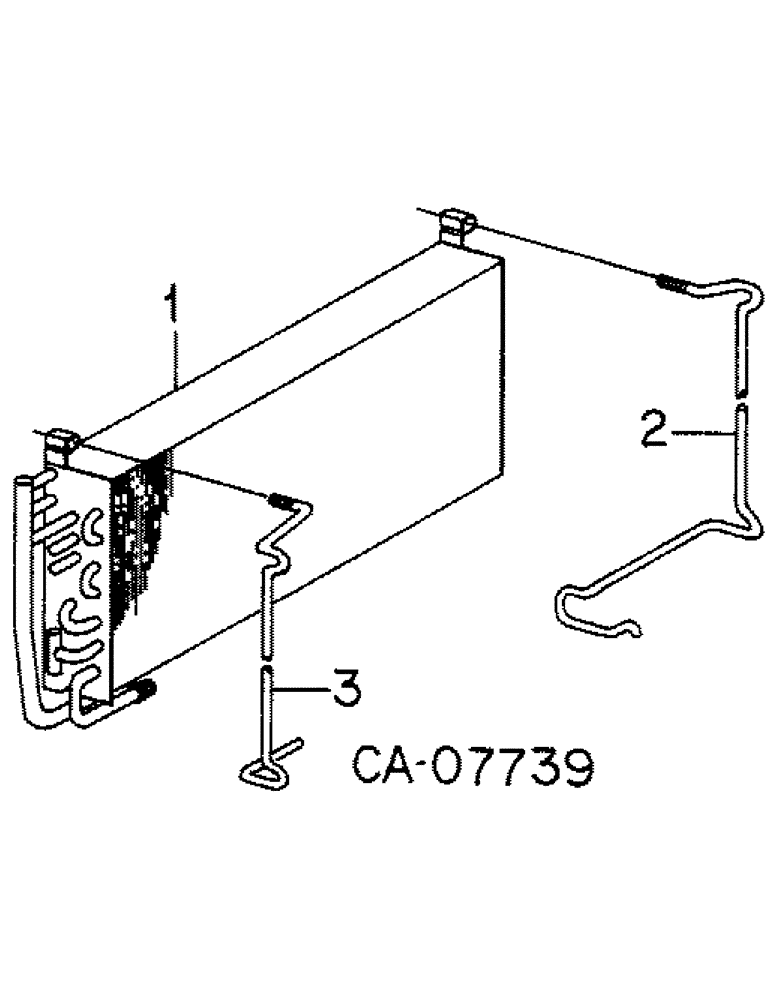

Запчасти Case IH 5488 (13-37) - SUPERSTRUCTURE, CONDENSER AND MOUNTING (05) - SUPERSTRUCTURE

1

143022C1

CONDENSER

ASSY

1шт.

2

1250466C1

BRACKET

condenser mtg LH

1шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

M8 x 20 phc class 10.9

4шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5 mm phc

8шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

2шт.

934900R1

WING NUT

M8 znp wing

2шт.

3

143178C1

BRACKET

condenser mtg RH

1шт.
