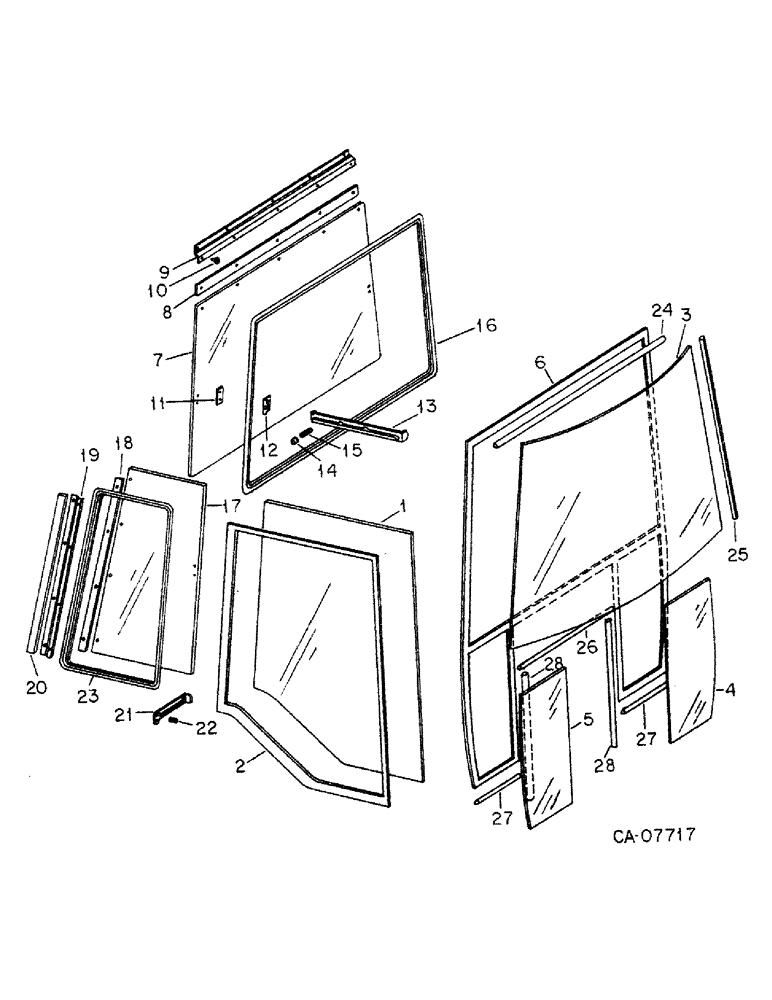

Запчасти Case IH 5488 (13-33) - SUPERSTRUCTURE, CAB GLASS (05) - SUPERSTRUCTURE

1

109584C2

GLASS

door window

2шт.

2

109578C2

DOOR SEAL

door window glass LH

1шт.

2

109579C2

DOOR SEAL

door window glass RH

1шт.

3

109133C3

GLASS

upper windshield

1шт.

4

109131C2

GLASS

lower windshield LH

1шт.

5

109132C2

GLASS

lower windshield RH

1шт.

6

111611C2

SEAL

windshield

1шт.

7

109318C2

GLASS

rear window

1шт.

8

109586C1

PAD

rear window hinge

1шт.

9

117673C1

HINGE

ASSY, rear window

1шт.

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW, 1/4 x 3/4 polyseal p/hdcr tap

8шт.

115109

WASHER,1/4"

1/4"

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

5шт.

111626C1

NUT

1/4-20 nylon insert

5шт.

10

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

21шт.

11

109587C1

PAD

sector arm pivot

4шт.

12

109588C1

BRACKET

sector arm pivot

4шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW W/WASHER, 1/4-20 x 3/4

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

8шт.

111626C1

NUT

1/4-20 nylon insert lt-thn, lc-stl, phc, lock

8шт.

13

111353C2

ARM

rear window sector LH

1шт.

13

111354C2

ARM

rear window sector RH

1шт.

27930R1

PIN

3/8 x .500 n/d phc type 1 hd

2шт.

14

118140C1

NUT

FASTENER, push-on

8шт.

15

109590C1

SPRING

sector arm compression

4шт.

111365C1

CONE WASHER

coned

8шт.

16

SEAL, rear window glass, Use 148 inches from a bulk 25 ft roll marked 64518C1

1шт.

17

1250436C2

GLASS

quarter window

2шт.

18

109592C1

PAD

quarter window hinge

2шт.

19

109478C1

HINGE

quarter window

2шт.

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW, 1/4 x 1 polyseal p/h cr tap

8шт.

115109

WASHER,1/4"

1/4"

8шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW W/WASHER, 1/4-20 x 3/4

12шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

8шт.

111626C1

NUT

1/4-20 znd nylon insert

8шт.

20

118122C1

SEAL

quarter window hinge

4шт.

21

111412C1

ARM

quarter window sector LH

1шт.

21

111413C1

ARM

quarter window sector RH

1шт.

27931R1

PIN

3/8 x 1 n/d phc type 1 hd

2шт.

22

109585C1

SPRING

pivot compression

2шт.

23

SEAL, quarter window, Use 88.1 inches from a bulk 25 ft roll marked 64518C1

2шт.

24

LOCK, windshield glass seal header, Use 48.06 inches from a bulk 50 ft roll marked 64514C1

1шт.

25

LOCK, windshield glass seal side, Use 58.02 inches from a bulk 50 ft roll marked 64514C1

2шт.

26

LOCK, windshield glass seal center, Use 55.54 inches from a bulk 50 ft roll marked 64514C1

1шт.

27

LOCK, windshield glass seal bottom, Use 13.45 inches from a bulk 50 ft roll marked 64514C1

2шт.

28

LOCK, windshield glass seal inner LH, Use 21.35 inches from a bulk 50 ft roll marked 64514C1

1шт.

28

LOCK, windshield glass seal inner RH, Use 21.35 inches from a bulk 50 ft roll marked 64514C1

1шт.
