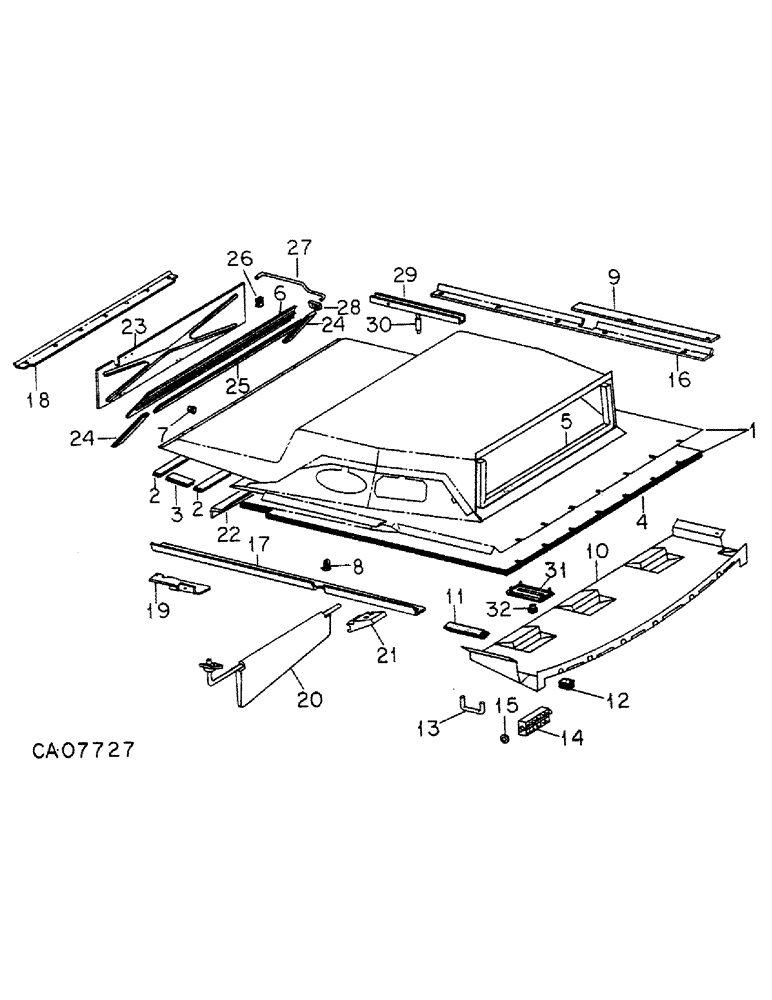

Запчасти Case IH 5488 (13-25) - SUPERSTRUCTURE, HEADLINER AND SUNVISORS (05) - SUPERSTRUCTURE

1

118184C94

DUCT

ASSY, headliner

1шт.

1

143151C93

DUCT

ASSY, headliner w/radio

1шт.

For cabs w/Western interior or burgundy interior

1шт.

1276096C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 polyseal p/hdcr tap

4шт.

1276098C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/8"

SCREW, 1/4 x 1-3/8 polyseal p/hdcr tap

2шт.

1250628C2

SPACER

spacer

6шт.

118151C1

CLIP

U-shaped spring

16шт.

143382C1

CLIP

U-shaped spring

8шт.

2

118144C1

SEAL

air intake rear long

2шт.

3

118145C1

SEAL

air intake rear short

2шт.

4

117632C4

SHEET

foam, panel

1шт.

For cabs w/standard interior

1шт.

4

1262101C1

SHEET

foam, panel

1шт.

For cabs w/Western interior or burgundy interior

1шт.

5

1250479C2

SEAL

duct front seal

1шт.

6

109282C1

GRILLE

recirculation

1шт.

7

111296C1

BUTTON

KNOB, grille retainer

6шт.

8

489348C1

RETAINER

rear headliner assy

2шт.

9

118155C2

STRIP

headliner, duct support

2шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 polyseal

4шт.

10

118194C2

PANEL

front headliner

1шт.

118520C2

SCREW

shoulder tap 10-16 phc

7шт.

28439R1

WASHER, .266 x .50 x .036 phc

7шт.

1276101C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal p/hdcr tap

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 x .625 x .051 phc

6шт.

11

118206C1

SEALING STRIP

front headliner, seal

2шт.

12

118207C1

SEALING STRIP

front air, seal

2шт.

13

SEAL, front headliner corner, discontinued for service

2шт.

14

109227C1

VENT

ASSY, air discharge, louver

3шт.

15

117611C2

SPACER

friction

6шт.

16

109505C1

RETAINER

headliner side LH

1шт.

For cabs w/standard interior

1шт.

16

118539C1

RETAINER

ASSY, headliner side LH

1шт.

For cabs w/Western interior or burgundy interior

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

5шт.

17

109506C1

RETAINER

headliner side RH

1шт.

For cabs w/standard interior

1шт.

17

118540C1

RETAINER

ASSY, headliner side RH

1шт.

For cabs w/Western interior or burgundy interior

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

5шт.

18

109460C1

SUPPORT

ASSY, headliner rear

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10-16 x 1/2 polyseal

7шт.

19

109507C1

SUPPORT

headliner corner LH

1шт.

19

109508C1

SUPPORT

headliner corner RH

1шт.

1276102C1

SELF-TAP SCREW,Cross Oval Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 polyseal o/hdcr tap

2шт.

20

118543C1

VISOR, SUN

VISOR ASSY, sun

2шт.

1276054C1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, no. 10 x 1/2 polyseal o/hdcr mach

8шт.

21

118537C1

RETAINER

visor arm

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10 x 3/8 polyseal p/hdcr mach

2шт.

118542C1

NUT

10-24 twin spring

1шт.

22

111666C2

SUPPORT

BRACKET, door support

1шт.

23

117621C2

DOOR

ASSY, recirculation

1шт.

118171C1

PACKAGE

KIT, fastener 2.0 long plastic, Consists of four fasteners

1шт.

24

111668C1

SEAL

recirculation door short

2шт.

25

111669C1

SEAL

recirculation door long

2шт.

26

118345C1

BUMPER

recirculation door

1шт.

27

111670C2

ROD

recirculation control

1шт.

28

428497C1

REINFORCEMENT

rod end

2шт.

29

117610C1

CHANNEL

ASSY, slide

1шт.

30

111675C1

STUD

control

1шт.

31

118183C1

PANEL

recirculation control trim

1шт.

1276099C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3 3/4"

SCREW, #8-18 x 2-3/4 polyseal o/hdcr tap

4шт.

32

111683C1

KNOB

air control

1шт.

117995C1

PACKAGE

KIT, trim panel fastener

1шт.
