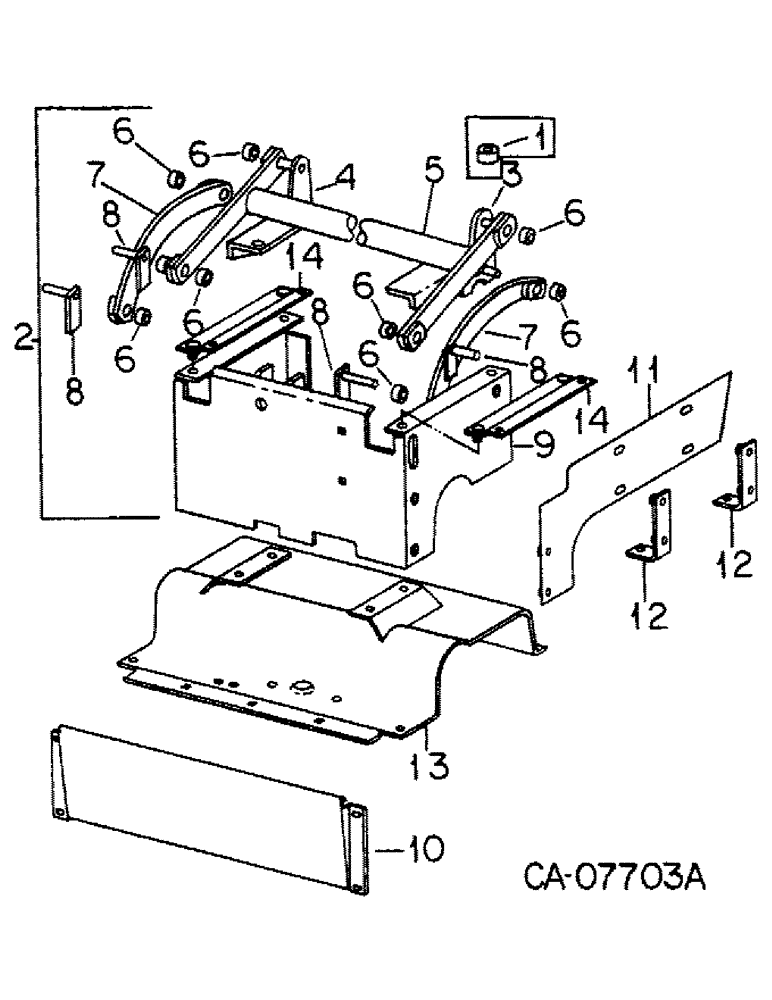

Запчасти Case IH 5488 (13-21) - SUPERSTRUCTURE, HYDRAULIC SEAT SUSPENSION, WITHOUT AIR-OIL SUSPENSION SEAT (05) - SUPERSTRUCTURE

1

120196C1

SPACER

5088 w/serial no. 3814 and below and 4931 and above, 5288 w/serial no. 2291 and below and 2531 and above, 5488 w/serial no. 518 and below and 1921 and above

4шт.

2

148617C93

SUPPORT

SUSPENSION ASSY, seat

1шт.

3

534388R3

SUPPORT

ASSY, seat suspension LH

1шт.

4

534389R3

SUPPORT

ASSY, seat suspension RH

1шт.

931834R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

5

144167C91

LINK

ASSY, seat upper

1шт.

6

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar

8шт.

7

534399R1

BAR

ASSY, seat lower link

2шт.

8

534402R1

PIN

ASSY, frt pivot

4шт.

9

148618C3

SUPPORT

ASSY, seat

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

2шт.

10

1251905C2

PANEL

front side seat suspension

1шт.

11

1251906C1

PANEL

side seat suspension

1шт.

12

1251908C1

BRACKET

BRACE ASSY, side seat panel

2шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

6шт.

13

143914C3

COVER

ASSY, seat support, seat w/o air-oil suspension

1шт.

13

1280462C1

COVER

ASSY, seat support, seat w/air-oil suspension

1шт.

130287C1

NUT

M8 x 1.25 cage

3шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

5шт.

14

1267297C1

BRACKET

SUPPORT ASSY, offset seat, 5088 w/serial no. 3815 thru 4930, 5288 w/serial no. 2292 thru 2530, 5488 w/serial no. 519 thru 1920

2шт.

14

1267402C1

BAR

ASSY, offset seat, 5088 w/serial no. 4931 and above, 5288 w/serial no. 2531 and above, 5488 w/serial no. 1921 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

21496R1

WASHER

.344 x .750 x .105

4шт.
