Запчасти Case IH 5288 (14-06) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, TRACTORS WITH ADJUSTABLE HIGH CAPACITY FRONT AXLE Suspension

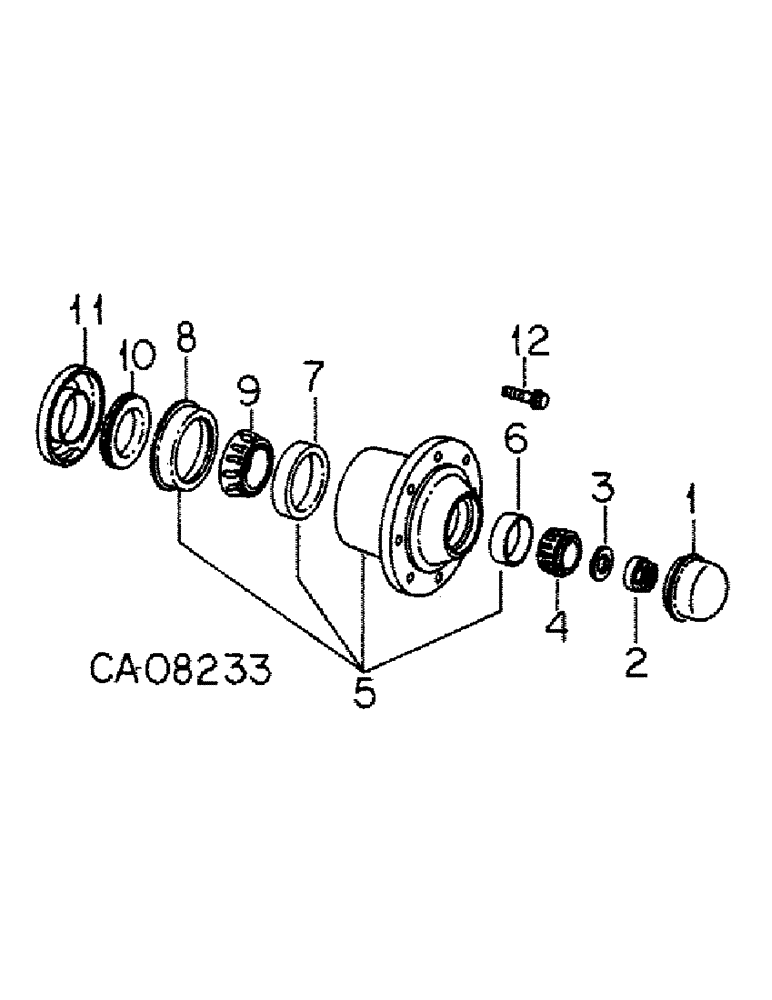

Схема запчастей Case IH 5288 - (14-06) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, TRACTORS WITH ADJUSTABLE HIGH CAPACITY FRONT AXLE Suspension
6
12
10
7
3
1
2
8
4
5
11
9

Артикул

Название

Примечание

Количество

1

189425C1

HUB CAP

CAP, front wheel hub

2шт.

2

1259683C1

NUT

M30 x 1.5 pln slt

2шт.

934868R1

COTTER PIN,M6.3 x 50

PIN, 6.3 x 50 mm pln cot.

2шт.

3

30181R1

WASHER,M30 x 56.5 x 5, HT

32.8 x 56 x 5MM phc

2шт.

4

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING ASSY, front wheel outer cone

2шт.

5

1259528C91

WHEEL

HUB ASSY, front wheel, Includes: Ref. 6, 7 and 8

2шт.

19700R91

FITTING

3/16 hole 45 deg lub

2шт.

6

130503H

BEARING CUP

BEARING, front wheel outer cup

2шт.

7

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

front wheel inner cup

2шт.

8

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

WASHER, hub seal cup

2шт.

9

ST753B

BEARING ASSY,66.67mm ID x 22mm W

front wheel inner cone

2шт.

10

491641C1

SEAL

front wheel hub, Replaces 1259523C1

2шт.

11

1259522C1

SHIELD

front wheel dust

2шт.

12

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

front wheel mounting

16шт.

Выбрано товаров: 14
