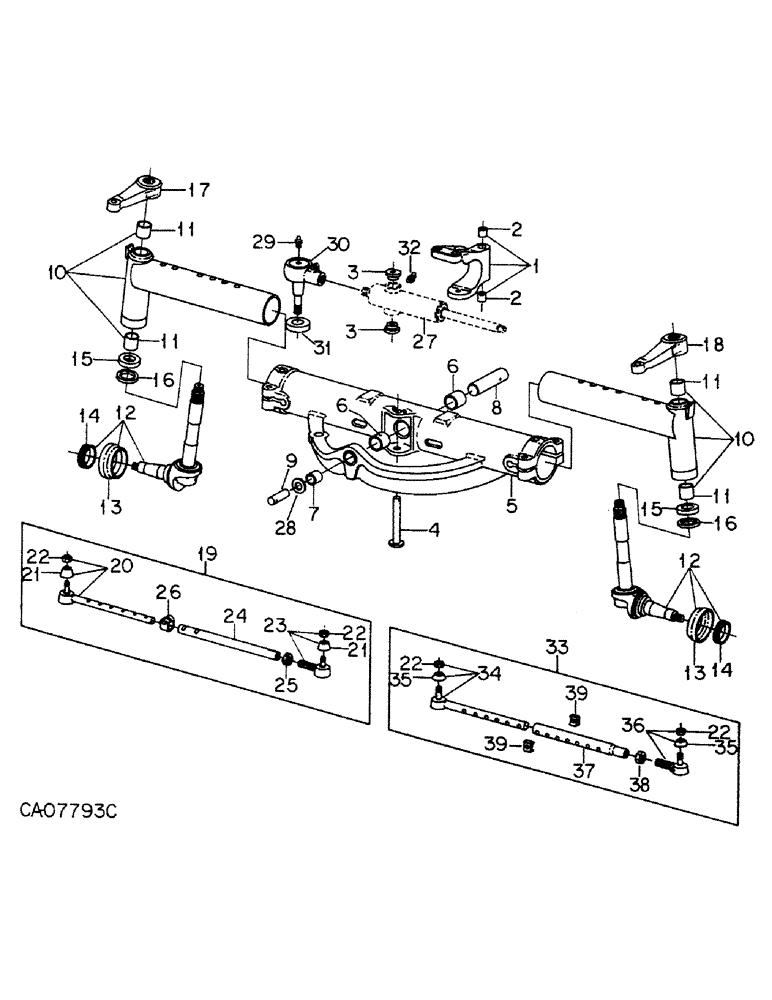

Запчасти Case IH 5288 (14-03) - SUSPENSION, ADJUSTABLE STANDARD TREAD FRONT AXLE, 58 TO 82 IN. TREAD ADJUSTMENT Suspension

1

71787C91

ARM

ASSY, center steering

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, center steering arm 1/8"-27 x .66 lg

1шт.

2

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

2шт.

3

531237R1

CAP

trunnion

2шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 class 5

2шт.

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

1270887C1

WASHER

trunnion cap bolt

2шт.

4

531239R1

PIN,50.8mm OD x 193.42mm L

center arm pivot

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

71421C1

WASHER

1.031 x 1.75 x .156 (Or as required)

3шт.

Q175

WASHER

1.031 x 1.750 x .042 pln, (Or as required)

1шт.

5

120733C91

AXLE, REAR

AXLE ASSY, front w/stay rod, Includes: Ref. 6 and 7, 58 to 82 in.

1шт.

24998R1

BOLT,Hex, 3/4" - 16 x 4", Gr 8

3/4-NF x 4 pln type 8

4шт.

25868R1

BOLT,Hex, 3/4" - 16 x 6 1/2", Gr 8

3/4 x 6-1/2 phc type 8

2шт.

218404

NUT,3/4"-16, G8

3/4-NF pln type 8

6шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

1шт.

6

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

2шт.

7

482669R1

BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L

axle rear pivot

1шт.

8

144216C1

AXLE PIN

PIN, front axle pivot, 5088 w/serial no. 6932 and below, 5288 w/serial no. 4725 and below, 5488 w/serial no. 2754 and below

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

1280692C1

AXLE PIN

PIN, front axle pivot, 5088 w/serial no. 6933 and above, 5288 w/serial no. 4726 and above, 5488 w/serial no. 2755 and above

1шт.

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN, retaining 1/2 in. type 8

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN, 3.2 x 20 mm pln cot.

2шт.

9

120732C1

PIN

axle rear pivot

1шт.

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN, 3/8 x 4.125 pln hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8 PTF short 65D lub

1шт.

10

531260R93

AXLE

EXTENSION ASSY, front axle (Replaces 531260R94)

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub, steering knuckle pivot pin

2шт.

11

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

4шт.

12

71785C92

STEERING KNUCKLE

KNUCKLE ASSY, steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF pln jam type 5

2шт.

Q326

WASHER

1.406 x 2.750 x .042 pln

2шт.

13

48701D

SHIELD

frt wheel dust

2шт.

14

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

frt wheel oil

2шт.

15

405831R91

BEARING

steering knuckle pivot thrust

2шт.

16

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

17

148418C1

ARM

LH steering knuckle

1шт.

18

148419C1

STEERING ARM

ARM, RH steering knuckle

1шт.

19

ROD ASSY, tie, Not serviced separately order Ref. 20 - 26

2шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

20

359984R93

TIE-ROD

ASSY, welded

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

2шт.

21

358900R1

SEAL

COVER, dust

4шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

22

NLS

NO LONGER SERVICED

5/8-NF slt type 5

4шт.

Manufactured by TRW.

1шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

23

384006R92

END

ASSY, RH thread

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

24

383917R1

TUBE

tie rod

2шт.

25

374062R1

JAM NUT

NUT, tie rod tube jam

2шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

26

359986R1

CLAMP

adjustable end

2шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

1/2-NF x 2-1/4 pln type 5

2шт.

25-118

NUT,1/2"-20, G5

1/2-NF pln type 5

2шт.

27

CYLINDER ASSY, steering, See group 10

1шт.

28

630101C2

THRUST WASHER

WASHER, axle thrust

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

30

71820C91

END

ASSY, ball joint rod, or

1шт.

30

1280566C92

END ASSY.

END ASSY, ball joint rod

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 p/t lock type 5

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 pln type 5

1шт.

Manufactured by TRW.

1шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16 phc p/t lock type 5

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

31

71822C1

SEAL

dust

1шт.

Manufactured by O and S bearing or Columbus auto parts.

1шт.

31

250586C1

SEAL

dust

1шт.

32

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65D lub

2шт.

33

ROD ASSY, tie, Not serviced separately, Order Ref. 34 - 39

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

34

1270914C1

BALL JOINT

END ASSY, welded

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

35

1270906C1

BOOT

COVER, dust

4шт.

36

1270913C1

BALL JOINT

END ASSY, RH thread

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

37

1270912C1

TUBE,1.02 - 1.03" ID, 1.375" OD

tie rod

2шт.

38

1270907C1

TUBE NUT

NUT, tie rod tube jam

2шт.

39

180586C1

BRACKET

CLAMP, adjustable end

4шт.

25776R1

BOLT

BOLT, 3/8-NF x 2-1/2 phc type 8

2шт.

359784C1

LOCK NUT,3/8"-24, GC

NUT, 3/8-NF cad p/t lock type 8

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
