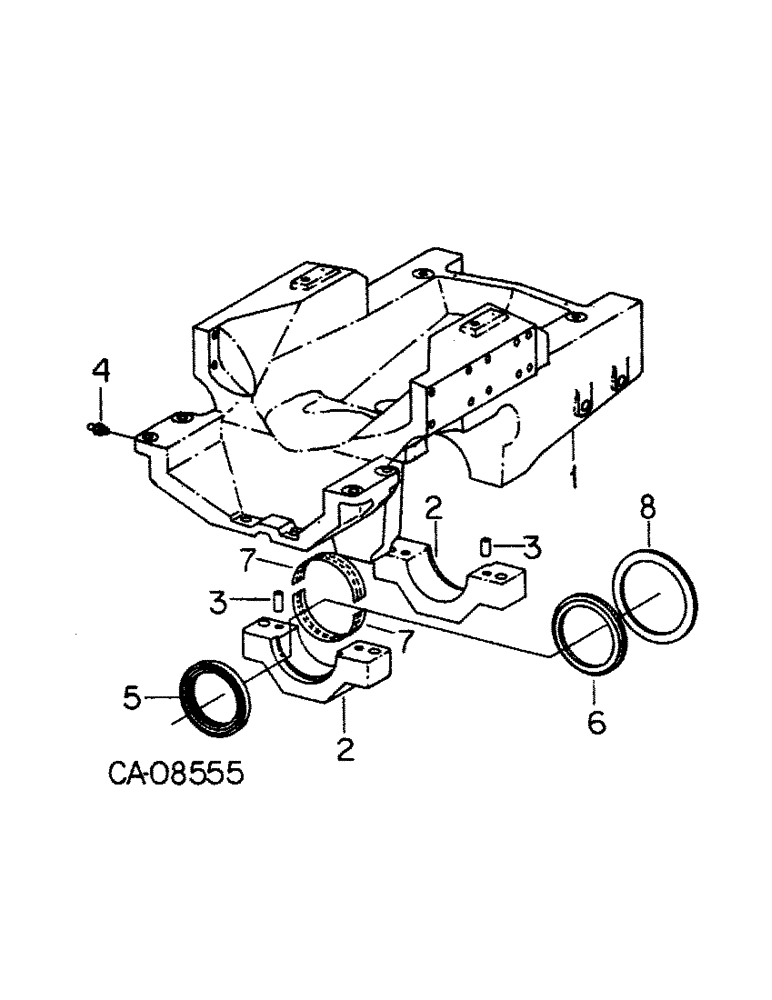

Запчасти Case IH 5288 (14-02[A]) - SUSPENSION, FRONT AXLE BOLSTER ALL WHEEL DRIVE TRACTORS Suspension

1

BOLSTER ASSY, front, Includes: Ref. 2 and 3, On orders for bolster, 1264706C93, Furnish bolster, 1280727C91 and 4 bolts, 30118R1

1шт.

20956R1

PLUG, 1/8-27 C-Z sq/hd auto pipe

1шт.

30070R1

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

1

1280727C91

BOLSTER

ASSY, front, Includes: Ref. 2 and 3

1шт.

5088 w/serial no. 6574 and above, 5288 w/serial no. 4422 and above, 5488 w/serial no. 2466 and above

1шт.

30070R1

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

2

NSS

NOT SOLD SEPARAT

CAP ASSY, trunnion brg, Order bolster assy, 1280727C91

2шт.

30117R1

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

M24 x 90 phc class 10.9

4шт.

828-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

M24 x 100 phc class 10.9, (Replaces 30118R1)

4шт.

3

31015R1

DOWEL,M20 x 60

PIN, 20 x 60 mm pln hdn dowel

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

5

1280734C1

SEAL

axle trunnion

2шт.

5088 w/serial no. 6574 and above, 5288 w/serial no. 4422 and above, 5488 w/serial no. 2466 and above

1шт.

6

1270489C1

THRUST WASHER,147.5mm ID x 175mm OD x 2.95mm Thk

axle thrust

2шт.

6

1280730C1

THRUST WASHER,146.5mm ID x 179mm OD x 3.17mm Thk

axle thrust

2шт.

7

1270589C2

BEARING HALF,145.26mm ID x 151.61mm OD x 44.25mm L

trunnion brg

4шт.

8

1280735C1

WASHER

rubber seal

2шт.
