Запчасти Case IH 5288 (14-01) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, TRACTORS WITH ADJUSTABLE STANDARD TREAD FRONT AXLE Suspension

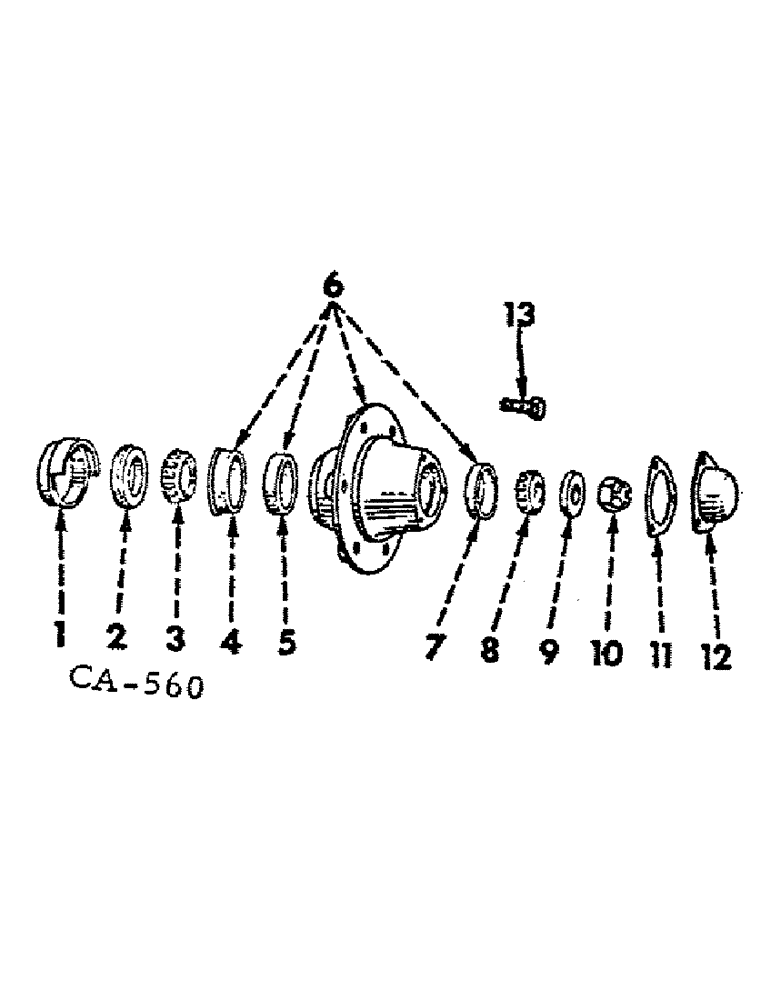

Схема запчастей Case IH 5288 - (14-01) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, TRACTORS WITH ADJUSTABLE STANDARD TREAD FRONT AXLE Suspension
7
8
9
6
3
1
11
13
4
12
2
5
10

Артикул

Название

Примечание

Количество

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, frt wheel inner cone

2шт.

4

48703D

RETAINER

frt wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, frt wheel inner cup

2шт.

6

391824R11

HUB ASSY.

HUB ASSY, frt wheel, 8 bolt

2шт.

19700R91

FITTING

3/16 45 deg drive typ lub

2шт.

6

391823R11

HUB

ASSY, frt wheel, 6 bolt

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, frt wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

frt wheel outer brg retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, front wheel hub

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

frt wheel hub cap

2шт.

12

369859R1

CAP

frt wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 CDP hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, frt wheel mounting

1шт.

371418R91

PACKAGE

front wheel bearing overhaul, Consists of

2шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

1шт.

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

1шт.

619387R1

BEARING CUP

BEARING, front wheel inner cup

1шт.

369860R1

GASKET,0.79mm Thk

front wheel hub cap

1шт.

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

OIL SEAL, front wheel

1шт.

48703D

RETAINER

front wheel oil seal

1шт.

Выбрано товаров: 28
