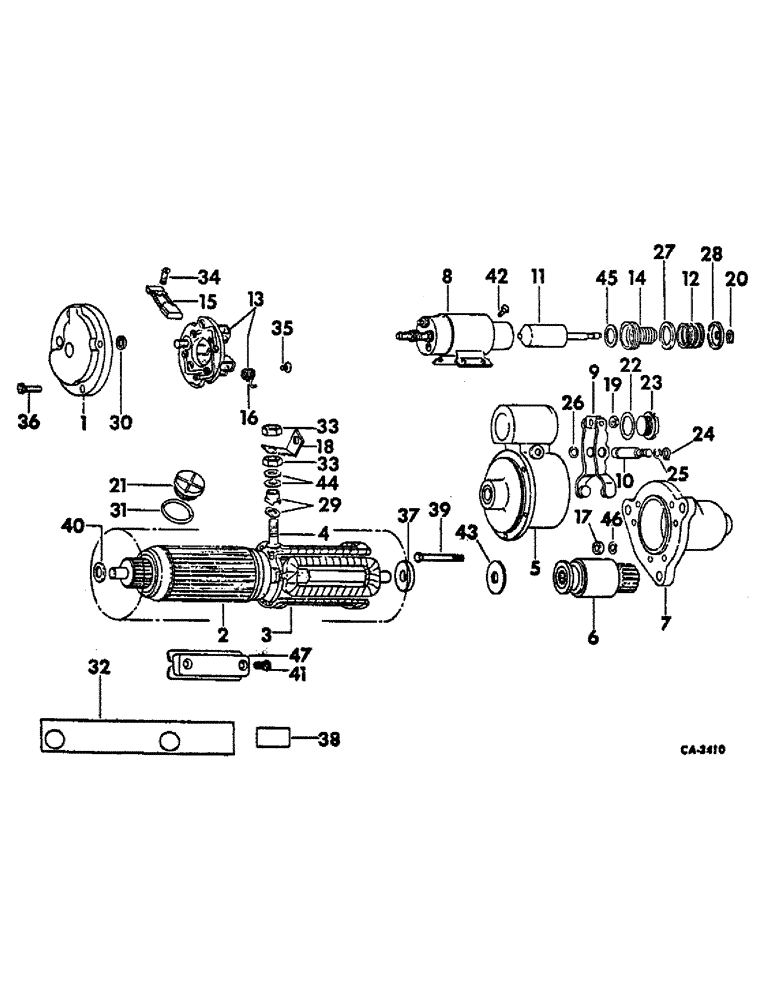

Запчасти Case IH 5288 (08-02) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL

107677C91

STARTER MOTOR

MOTOR ASSY, cranking, Replaces 199031

1шт.

107677C91R

REMAN-STARTER

12 volt, 35MT 12 Tooth (see p/n1993893R for 10 Tooth)

1шт.

107677C91C

CORE-STARTER

Return Number

1шт.

1993893R

REMAN-STARTER

12 volt, 35MT 10 Tooth (see p/n 107677C91R for 12 tooth)

1шт.

1993893C

CORE-STARTER

Return Number

1шт.

30887R1

12 PT SCREW,M16 x 40mm, Cl 12.9

SCREW, M16 x 40 mm phc flg 12pt

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy-int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1851943

FRAME

FRAME W/BUSHING AND WICK COMMUTATOR END

1шт.

800139

BUSHING

BUSHING, commutator end

1шт.

1916439

WICK

WICK, commutator end

1шт.

2

1851961

ARMATURE

ARMATURE

1шт.

3

1971839

COIL

COIL ASSY, field, 4 coils

1шт.

4

1950561

STUD

STUD, field terminal

1шт.

5

1851986

HOUSING

SPARE PART HOUSING W/BUSHING AND WICK, lever

1шт.

1933999

BUSHING

BUSHING, lever housing

1шт.

1916439

WICK

WICK, lever housing

1шт.

6

146484C1

DRIVE

DRIVE, clutch motor

1шт.

P/N 146484C1 has 12 teeth, A49584 has 10 teeth.

1шт.

7

1978692

HOUSING

HOUSING W/BUSHING AND WICK, drive

1шт.

1955994

BUSHING

BUSHING, drive end

1шт.

1916439

WICK

WICK, drive end

1шт.

8

1115541

SWITCH

SWITCH, solenoid

1шт.

8

1115541GV

SOLENOID

SWITCH, solenoid

1шт.

9

1851954

LEVER

LEVER ASSY, shift

1шт.

10

1851953

SHAFT

SHAFT, shift lever

1шт.

11

1851966

PLUNGER

PLUNGER ASSY

1шт.

12

1948521

SPRING

SPRING, shift lever

1шт.

13

1851940

PLATE

PLATE ASSY, brush

1шт.

14

801077

BOOT

BOOT

1шт.

15

1906988

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

16

1971846

SPRING

SPRING, brush

4шт.

17

1851546

COLLAR

COLLAR, pinion stop

1шт.

18

1971905

WIRE CONNECTOR

CONNECTOR, switch

1шт.

19

1851995

NUT

NUT, plunger rod guide adj

1шт.

20

9415235

RING, SNAP

RING SNAP RING, shift lever spring retainer snap

1шт.

21

1945356

PLUG

PLUG, commutator end inspection

2шт.

22

1964857

GASKET

GASKET, lever housing plug

1шт.

23

1945356

PLUG

PLUG, lever housing

1шт.

24

9415235

RING, SNAP

RING SNAP RING, lever attaching pin

1шт.

25

1921805

GASKET

O-RING, shaft lever, 1/2

1шт.

26

1914373

O-RING

O-RING, shift lever, 15/64

1шт.

27

1948520

RETAINER

RETAINER, 1-13/64 shift lever spring

1шт.

28

1948526

RETAINER

RETAINER, 13/32 shift lever spring

1шт.

29

1965472

PACKAGE

PACKAGE, insulator field terminal stud bushing

1шт.

30

1950064

BUSHING

BUSHING, commutator end terminal

1шт.

31

1964857

GASKET

GASKET, commutator end inspection plug

2шт.

32

1971857

INSULATOR

INSULATOR, field coil, 2 x 11-1/2

1шт.

33

9414418

NUT

NUT, field terminal stud

2шт.

34

453418

LOCK SCREW

SCREW, brush attaching

4шт.

35

1847807

SCREW

SCREW AND WASHER, brush plate attaching

1шт.

36

1914869

SCREW

SCREW, commutator end frame

4шт.

37

1951959

SPACER, armature and drive end housing

1шт.

38

1868835

INSULATOR

INSULATION, field coil, 1-3/16 x 2

2шт.

39

1870513

SCREW

SCREW, drive housing

6шт.

40

1914842

WASHER

WASHER, commutator end space

1шт.

41

1968396

SCREW

SCREW, pole shoe

8шт.

42

1930611

LOCK SCREW

SCREW AND LOCKWASHER, switch

4шт.

43

R15043

WASHER

WASHER, brake, between center brg and motor drive

1шт.

44

1922457

WASHER

WASHER, insulator field terminal stud

2шт.

45

1948519

WASHER

WASHER, retainer spring

1шт.

46

1928022

SNAP RING

RING, pinion stop retainer

1шт.

47

1986367

SHOE

SHOE, pole

4шт.

A49584

DRIVE

clutch starter gear, has 10 teeth

1шт.

8-3052

CATALOG

1шт.

For different starter, see 1822/1844, Figure 4-50

1шт.
