Запчасти Case IH 5088 (13-11) - SUPERSTRUCTURE, DELUXE VERTICAL ACTING SEAT (05) - SUPERSTRUCTURE

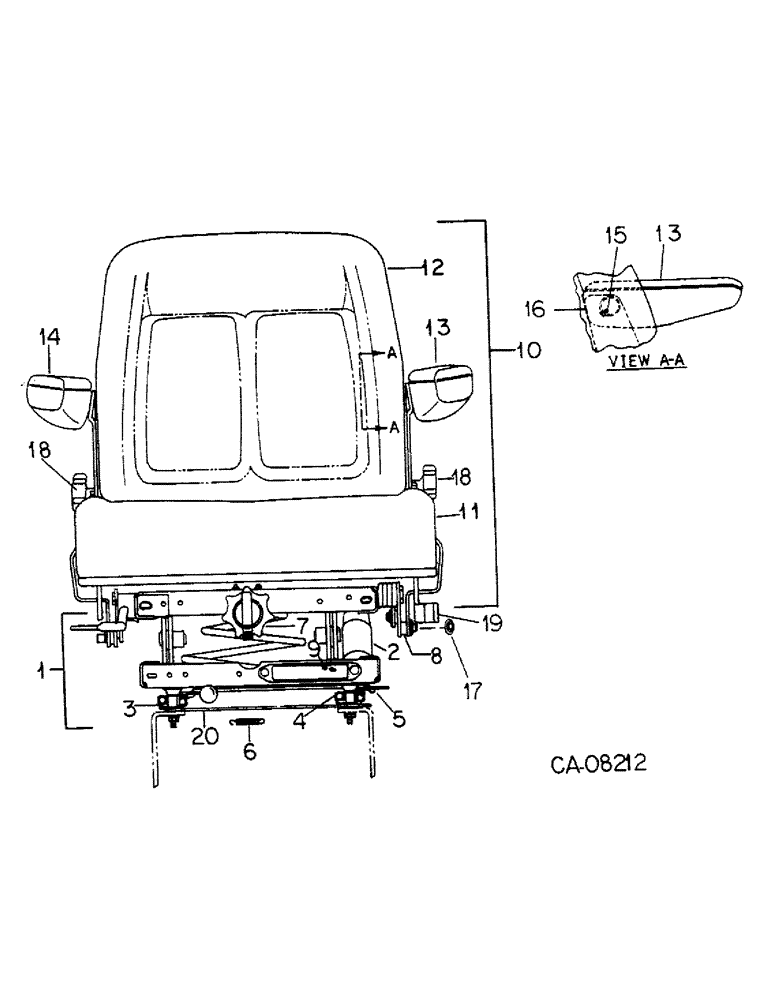

Схема запчастей Case IH 5088 - (13-11) - SUPERSTRUCTURE, DELUXE VERTICAL ACTING SEAT (05) - SUPERSTRUCTURE
7
13
18
15
17
11
13
10
9
3
19
12
2
18
6
16
5
1
14
4
8
20

Артикул

Название

Примечание

Количество

SEAT ASSY, vertical acting, cloth

1шт.

SEAT ASSY, vertical acting, vinyl

1шт.

1

118580C91

SUPPORT

ASSY

1шт.

See Figure 9-52 in 2594 catalog 8-1973 for parts breakdown.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

2

64918C1

SHOCK ABSORBER

ABSORBER, shock

1шт.

3

139062C1

SLIDE

ASSY W/HANDLE

1шт.

4

139064C1

SLIDE

ASSY W/O HANDLE

1шт.

5

139065C1

ROD

latch connecting

1шт.

6

64926C1

SPRING

slide adjusting

2шт.

7

118578C1

BUTTON

KNOB, weight adjusting

1шт.

8

1250509C1

BUSHING

suspension

1шт.

9

139061C1

INDICATOR

ride height

1шт.

10

1267534C91

SEAT

ASSY, cloth

1шт.

10

1267533C91

SEAT

ASSY, vinyl, Consists of Ref. 11 - 16

1шт.

11

142885C1

CUSHION

cloth

1шт.

11

72937C1

CUSHION

vinyl

1шт.

12

142886C1

CUSHION

back, cloth

1шт.

12

142887C1

CUSHION

back, vinyl

1шт.

13

143432C1

ARM

REST ASSY, LH, cloth

1шт.

13

139069C1

ARMREST

ASSY, LH, vinyl

1шт.

14

143433C1

KIT

ARMREST ASSY, RH, cloth

1шт.

14

139070C1

ARMREST

ASSY, RH, vinyl

1шт.

15

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

2шт.

16

139071C1

PLATE

cover LH

1шт.

16

139072C1

PLATE

cover RH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, #10-16 x 5/8 phc p/hdcr tap

2шт.

17

59793C1

FASTENER

push-on

8шт.

18

1267543C1

KNOB

ASSY, backrest adj

2шт.

19

1267544C1

LEVER

ASSY, seat tilt, Replaces 1267545C1

1шт.

20

1267366C1

BRACKET

ASSY, offset seat

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 33
