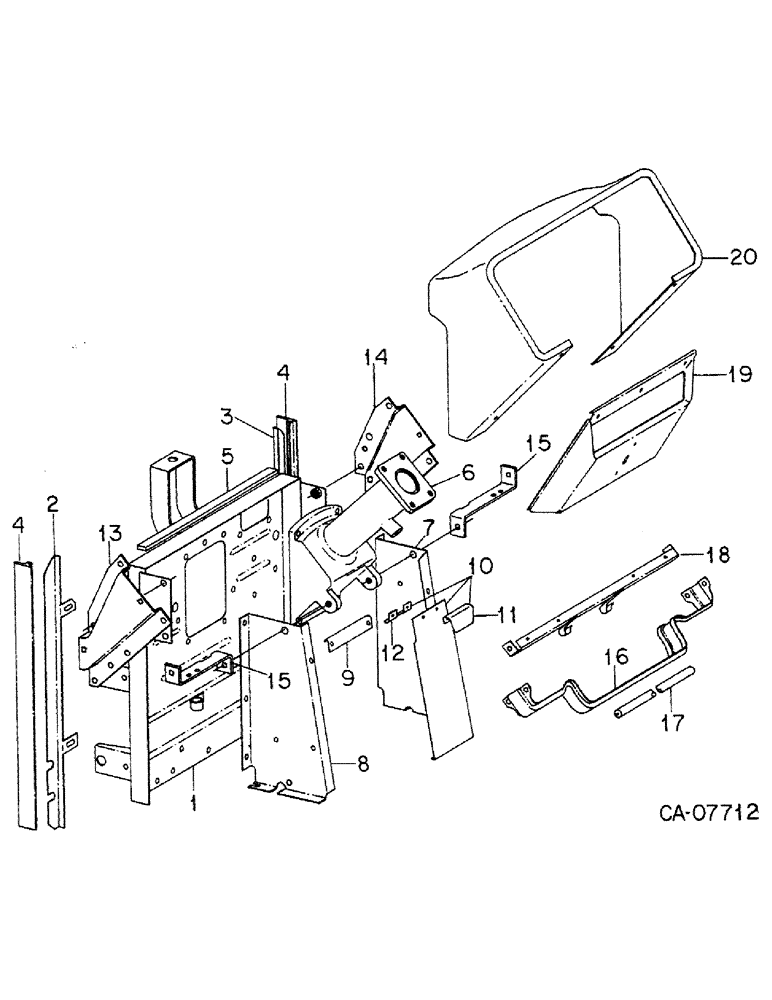

Запчасти Case IH 5088 (13-04) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS (05) - SUPERSTRUCTURE

1

1270856C91

PACKAGE

firewall panel, 5088 w/serial no. 6334 and below, 5288 w/serial no. 4271 and below, 5488 w/serial no. 2441 and below, Consists of

1шт.

139350C8

PANEL ASSY, firewall

1шт.

INSTRUCTIONS, rework and installation

1шт.

1

139350C8

PANEL ASSY, firewall, 5088 w/serial no. 6335 and above, 5288 w/serial no. 4272 and above, 5488 w/serial no. 2442 and above

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

6шт.

20285H

WASHER

.406 x .750 x .105 pln

6шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

5шт.

30284R1

NUT,M10, Cl 10

M10 class 10

5шт.

2

1251845C2

SUPPORT

rear center panel seal LH

1шт.

3

1251846C2

SUPPORT

rear center panel seal RH

1шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

1287974C1

NUT

5/16 flange clearing

2шт.

4

1251828C1

SEAL

rear center panel

2шт.

5

109350C1

SEALING STRIP

cab & firewall top, SEAL

1шт.

6

103929C1

SUPPORT

inst. panel and steering wheel, tractors w/o tilt steering

1шт.

6

SUPPORT, steering wheel, See group 5 for tractors w/tilt steering

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

148858C4

SUPPORT

ASSY, firewall LH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

8

148859C3

SUPPORT ASSY.

SUPPORT ASSY, firewall RH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

9

104027C1

SUPPORT

ASSY, supp cover mtg, plate

1шт.

1276073C1

SELF-TAP SCREW,Cross Flat Hd, 1/46" x 1/2"

SCREW, 1/4 x 1/2 p/hdcr polyseal

2шт.

10

120441C91

SUPPORT

ASSY, firewall

1шт.

11

104030C1

SUPPORT

firewall cover, handle

1шт.

12

104031C1

SUPPORT

firewall cover, retainer

1шт.

436525C1

RIVET,Pop, 1/4" x 1/2"

pop

2шт.

13

139364C1

SUPPORT

ASSY, instrument panel LH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

3шт.

104036C1

NUT

instrument hsg mtg

2шт.

14

139365C1

SUPPORT

ASSY, instrument panel RH

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

3шт.

104036C1

NUT

instrument housing mounting

2шт.

15

1270739C1

SUPPORT

pedal stop, bracket, Replaces 104021C1

2шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

16

104020C2

SUPPORT

instrument housing lower

1шт.

104036C1

NUT

instrument housing mounting

5шт.

17

1259543C1

SEAL

cable insul. protector-edging, strip

1шт.

931260R1

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

M10 x 12 pln class 8.8

2шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

2шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 mm phc

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

18

1251645C93

SUPPORT

ASSY, pedal return, spring mtg angle

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8-16 x 3/4 fl lock cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

Q1504

WASHER

10 x 22 x 1.5

1шт.

19

104032C3

HOUSING

lower instrument, tractors w/o tilt steering

1шт.

19

148482C1

HOUSING

lower instrument, tractors w/tilt steering

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

M10 x 16 mm class 8.8

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

3шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

9шт.

20

1251804C2

HOUSING

upper instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

11шт.
