Запчасти Case IH 5088 (13-03) - SUPERSTRUCTURE, HOOD SIDE PANEL AND RELATED PARTS (05) - SUPERSTRUCTURE

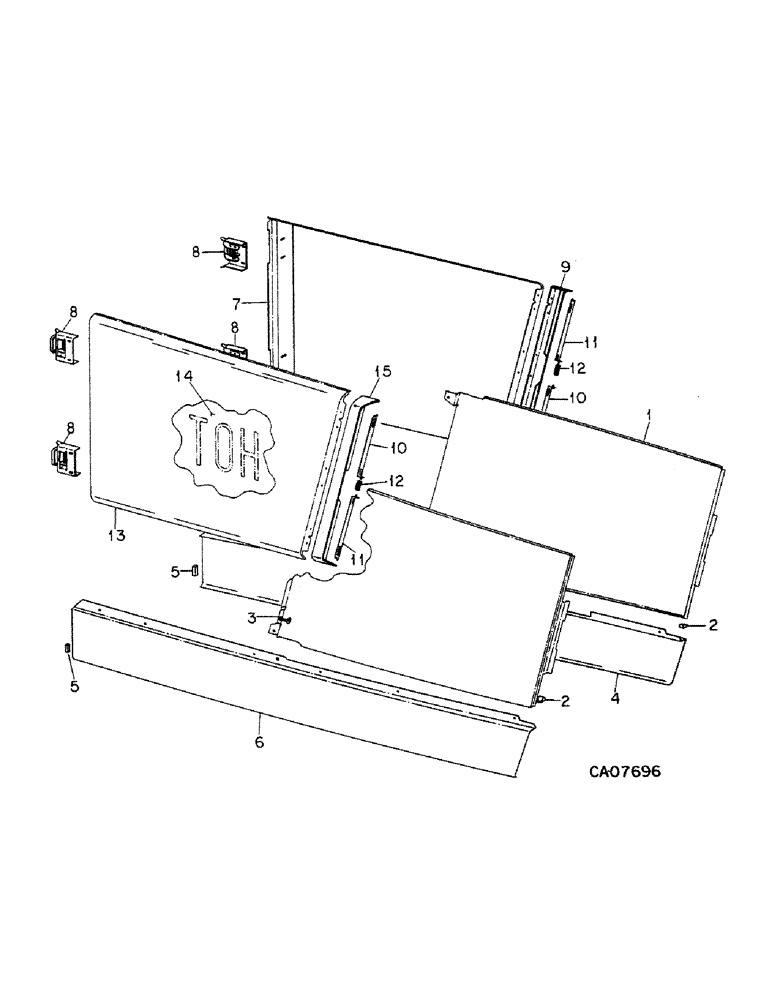

Схема запчастей Case IH 5088 - (13-03) - SUPERSTRUCTURE, HOOD SIDE PANEL AND RELATED PARTS (05) - SUPERSTRUCTURE
11
5
2
14
3
10
5
12
1
12
7
13
2
9
11
6
8
8
8
8
10
15
4

Артикул

Название

Примечание

Количество

1

149053C2

PANEL

ASSY, side front center LH

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

2шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

1шт.

1270584C1

PREV TORQUE BOLT,Hex, M8 x 16mm

SCREW, M8 x 16 hex hd w/washer polyseal

1шт.

2

1251885C1

SEAL

front side panel, spacer

2шт.

3

149054C2

PANEL

ASSY, side front center RH

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

2шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

2шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

1шт.

1270584C1

PREV TORQUE BOLT,Hex, M8 x 16mm

SCREW, M8 x 16 hex hd w/washer polyseal

1шт.

4

139171C1

PANEL

lower side LH

1шт.

130285C1

NUT

M8 x 1.25 cage

1шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8, polyseal

3шт.

5

1251930C1

STRIP

lower side panel bumper, pad

2шт.

6

139172C1

PANEL

lower side RH

1шт.

130285C1

NUT

M8-1.25 cage

1шт.

1270467C1

PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 class 8.8 polyseal

3шт.

7

149057C3

PANEL

ASSY, side rear center LH

1шт.

8

1251816C1

HINGE

ASSY, latch

4шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

8шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

8шт.

1270485C1

NUT,M6 x 1, Flg, Cl 8

M6 flange thread clearing

8шт.

9

148966C1

MOLDING

side rear center LH

1шт.

10

1251707C2

SLIDE

ASSY, side panel latch LH

2шт.

11

1251708C2

SLIDE

ASSY, side panel latch RH

2шт.

12

149076C2

SPRING

front latch

2шт.

148526C2

BOLT,Shldr, Wshr Hd, M6 x 1 x 14mm, Cl 8.8

washer head shoulder

8шт.

30381R1

NUT,M6 x 1, Cl 10

NUT, M6 phc p/t class 10

8шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

4шт.

931479R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12 phc class 8.8

4шт.

30281R1

NUT,M6, Cl 10

M6 class 10

4шт.

13

149058C4

PANEL ASSY.

PANEL ASSY, side rear center RH

1шт.

130285C1

NUT

M8 x 1.25 cage, Used only w/panel, 149058C3

4шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Used only w/panel, 149058C3 Hex, M8 x 16, 8.8

4шт.

14

1251713C1

SHIELD

right side heat

1шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

201946C1

RIVET,Pop, 3/16" x .325"

4.8 x 8.3 mm break mandrel

4шт.

15

148967C1

MOLDING

side rear center RH

1шт.
