Запчасти Case IH 5088 (13-02) - SUPERSTRUCTURE, FRONT FENDERS FOR ALL WHEEL DRIVE TRACTORS (05) - SUPERSTRUCTURE

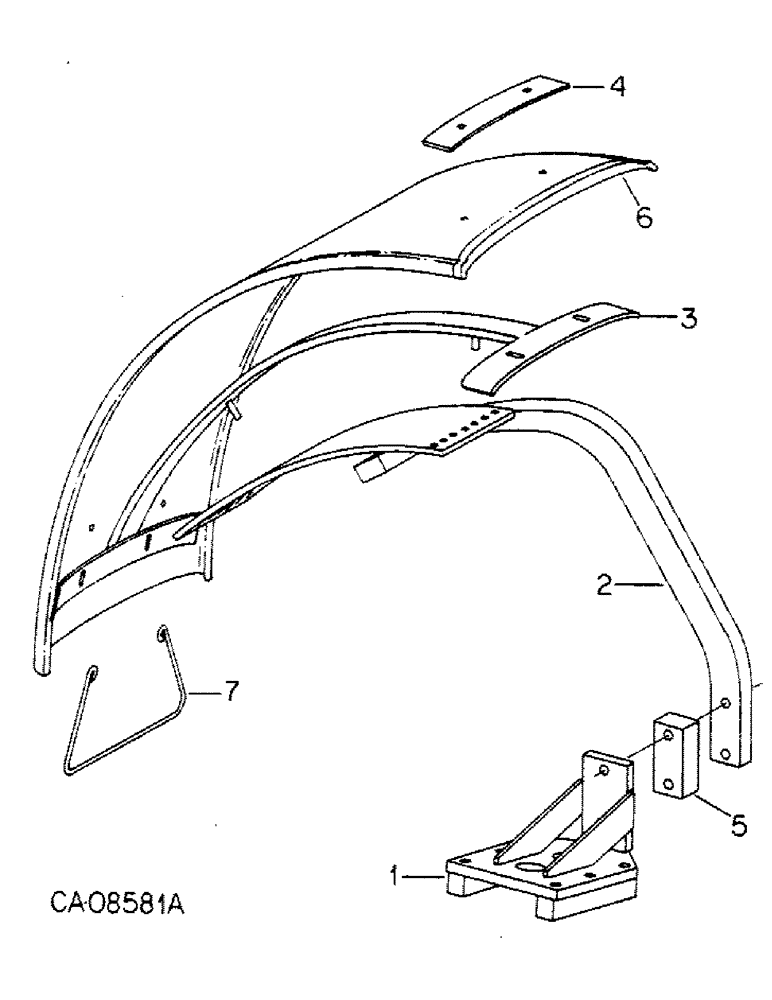

Схема запчастей Case IH 5088 - (13-02) - SUPERSTRUCTURE, FRONT FENDERS FOR ALL WHEEL DRIVE TRACTORS (05) - SUPERSTRUCTURE
3
5
2
6
4
7
1

Артикул

Название

Примечание

Количество

1

1280586C1

BRACKET

ASSY, fender mtg

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

8шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

8шт.

2

1280589C1

BRACE

ASSY, fender support RH

1шт.

2

1280590C1

BRACE

ASSY, fender support LH

1шт.

934845R1

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

M16 x 110 class 8.8

4шт.

31189R1

NUT

M16 p/t, phc

4шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4 mm

8шт.

3

1280593C1

SUPPORT

ASSY, fender inner

2шт.

30274R1

JAM NUT,M12, Cl 10

M12 class 10

4шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

4шт.

30328R1

WASHER,M13.5 x 24.5 x 3, HT

13.3 x 24 x 3 mm

4шт.

4

1280596C1

STRIP

fender mtg

4шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

5

1280597C1

SPACER

fender brace

2шт.

6

3404842R1

FENDER

all wheel drive

2шт.

7

1285781C1

SUPPORT

lower fender stiffener

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 crg type 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

446363

WASHER,5/16"

.375 x .875 x .064

4шт.

Выбрано товаров: 22
