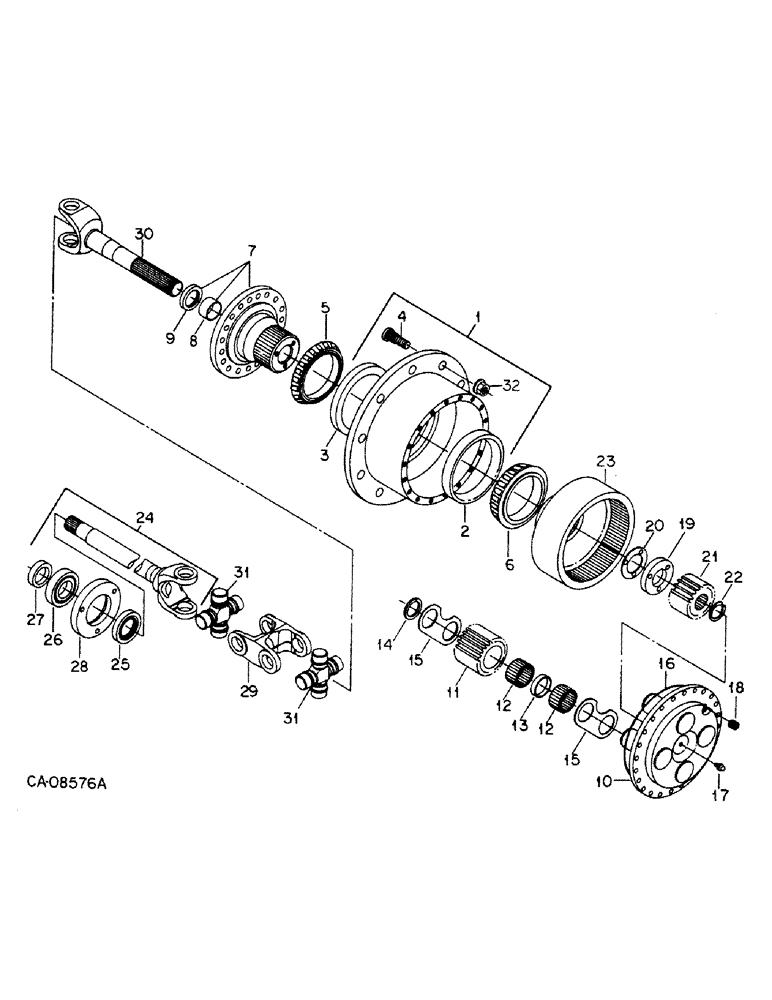

Запчасти Case IH 5088 (07-60) - DRIVE TRAIN, FRONT AXLE PLANETARY AND HUB, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

1

HUB ASSY, Includes Ref. 2, 3, 4 and 32

2шт.

1277367C91

HUB

ASSY

1шт.

1277403C91

DRIVE

ASSY, planetary

1шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

28605R1

12 PT SCREW,Flg, 7/16"-20 x 1 1/4"

SCREW, 7/16 - 20 x 1-1/4 flgd 12 pt

24шт.

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING

1шт.

2

1277315C1

BEARING CUP

cup outer

2шт.

3

1277344C1

BEARING CUP

BEARING, cup inner

2шт.

4

1277272C1

WHEEL BOLT

BOLT, wheel

20шт.

5

1277343C91

ROLLER BEARING

ASSY, cone inner

2шт.

6

1277314C91

ROLLER BEARING

ASSY, cone outer

2шт.

7

SPINDLE ASSY, Includes Ref. 8 and 9

2шт.

See Figure 07-60A for Reordering Instructions

1шт.

On orders for these parts, order the following parts

1шт.

Refer to service bulletin S-4618 for assembly instructions.

1шт.

1277365C1

STEERING KNUCKLE

KNUCKLE, steering RH, or

1шт.

1277366C1

STEERING KNUCKLE

KNUCKLE, steering LH

1шт.

1277239C1

SEAL

oil

1шт.

1277368C91

SPINDLE

ASSY

1шт.

83968R1

BOLT,Hex, 9/16" x 1 1/2", Gr 8

9/16 x 1-1/2 phc type 8

18шт.

26054R1

WASHER,19/32" x 1 3/16" x .095", HDN

.594 x 1.188 x .095 phc hdn

18шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

1277374C1

GEAR

sun

1шт.

1287607C91

YOKE

ASSY, end

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old center yoke (Ref. 29) and old LH and RH yoke assy (Ref. 24) has been updated to current production level (See Figure 07-60C) then use kit, 1287712C1 in place of 1277256C1

1шт.

1277406C1

BALL STUD

BALL PIN, upper

1шт.

473001C1

SHIM

.005

6шт.

78810C1

SHIM

.010

6шт.

8

1277241C2

BUSHING

spindle

2шт.

9

1277242C1

OIL SEAL

oil

2шт.

10

FLANGE ASSY, drive

2шт.

1277367C91

HUB

ASSY

1шт.

1277403C91

DRIVE

ASSY, planetary

1шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

28605R1

12 PT SCREW,Flg, 7/16"-20 x 1 1/4"

SCREW, 7/16 - 20 x 1-1/4 flgd 12 pt

24шт.

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING

1шт.

27693R1

12 PT SCREW,Flg, 7/16"-14 x 1 1/4"

SCREW, 7/16 x 1.250 phc ast 12pt flg

36шт.

11

GEAR, spur

8шт.

See Figure 07-60B for Reordering Instructions

1шт.

1277367C91

HUB

ASSY

1шт.

1277403C91

DRIVE

ASSY, planetary

1шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

28605R1

12 PT SCREW,Flg, 7/16"-20 x 1 1/4"

SCREW, 7/16 - 20 x 1-1/4 flgd 12 pt

24шт.

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING

1шт.

12

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

PIN, planet gear needle brg

624шт.

13

SPACER, brg

8шт.

See Figure 07-60B for Reordering Instructions

1шт.

1277367C91

HUB

ASSY

1шт.

1277403C91

DRIVE

ASSY, planetary

1шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

28605R1

12 PT SCREW,Flg, 7/16"-20 x 1 1/4"

SCREW, 7/16 - 20 x 1-1/4 flgd 12 pt

24шт.

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING

1шт.

14

347421R1

RING

1.351 ext rect sect ret

8шт.

15

SPACER, flat

8шт.

See Figure 07-60B for Reordering Instructions

1шт.

1277367C91

HUB

ASSY

1шт.

1277403C91

DRIVE

ASSY, planetary

1шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

28605R1

12 PT SCREW,Flg, 7/16"-20 x 1 1/4"

SCREW, 7/16 - 20 x 1-1/4 flgd 12 pt

24шт.

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING

1шт.

16

1277268C1

O-RING,9.487" ID x 0.106" Width

O-RING (Replaces 1277268R1)

1шт.

17

27632R1

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, 1/8 ptf short pressure lub

2шт.

18

444667

PLUG

1/2-14 znp sq/skt auto pipe

2шт.

19

1277246C1

PLATE

retainer

2шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 phc type 8

6шт.

26272R1

WASHER,.469" x 59/64" x .105", HDN

.469 x .922 x .105 phc hdn

6шт.

20

1277247C1

PACKAGE

KIT, wheel end shim, Consists of shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .001

5шт.

NSS

NOT SOLD SEPARAT

SHIM, .002

5шт.

NSS

NOT SOLD SEPARAT

SHIM, .005

5шт.

NSS

NOT SOLD SEPARAT

SHIM, .010

5шт.

NSS

NOT SOLD SEPARAT

SHIM, .020

5шт.

NSS

NOT SOLD SEPARAT

SHIM, .030

5шт.

21

GEAR, sun

2шт.

Refer to service bulletin, S-4618 for rework and assembly instructions.

1шт.

See Figure 07-60A for Reordering Instructions

1шт.

1277365C1

STEERING KNUCKLE

KNUCKLE, steering RH, or

1шт.

1277366C1

STEERING KNUCKLE

KNUCKLE , steering LH

1шт.

1277239C1

SEAL

oil

1шт.

1277368C91

SPINDLE

ASSY

1шт.

83968R1

BOLT,Hex, 9/16" x 1 1/2", Gr 8

9/16 x 1-1/2 phc type 8

18шт.

26054R1

WASHER,19/32" x 1 3/16" x .095", HDN

.594 x 1.188 x .095 phc

18шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

1277374C1

GEAR

sun

1шт.

1287607C91

YOKE

ASSY, end

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old center yoke (Ref. 29) and old LH and RH yoke assy (Ref. 24) has been updated to current production level (See Figure 07-60C) then use kit, 1287712C1 in place of 1277256C1

1шт.

1277406C1

BALL STUD

BALL PIN, upper

1шт.

473001C1

SHIM

.005

6шт.

78810C1

SHIM

.010

6шт.

22

399837R1

SNAP RING,#118, 1.121", Ext

RING, 1.121 ext rect sect ret

2шт.

23

1277250C1

GEAR, RING

GEAR, planetary ring

2шт.

24

YOKE ASSY, LH

1шт.

Refer to service bulletin, S-4618 for rework and assembly instructions.

1шт.

See Figure 07-60C for Reordering Instructions

1шт.

On orders for these parts, order the following parts

1шт.

1287604C91

YOKE

ASSY, LH, or

1шт.

1287605C91

YOKE

ASSY, RH

1шт.

1287606C1

YOKE

center

1шт.

1287712C1

PACKAGE

KIT, brg race and cross

1шт.

Used between LH yoke and shaft assy, 1287604C91 or RH yoke and shaft assy, 1287605C91 and center yoke, 1287606C1. Kit identified by grease purgable cross and full circular snap rings.

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old yoke spindle shaft (Ref. 30) has been replaced and updated to current production level (See Figure 07-60A) which includes end yoke assy, 1287607C91, then use kit, 1287712C1 in place of kit, 1277256C1.

1шт.

Used between center yoke, 1287606C1 and old yoke spindle shaft (Ref. 30). Kit identified by non-regreasable cross and "C" type snap rings.

1шт.

24

YOKE ASSY, RH, Includes kit, 1277253C1and Ref. 28

1шт.

Refer to service bulletin, S-4618 for rework and assembly instructions.

1шт.

See Figure 07-60C for Reordering Instructions

1шт.

On orders for these parts, order the following parts

1шт.

1287604C91

YOKE

ASSY, LH

1шт.

1287605C91

YOKE

ASSY, RH

1шт.

1287606C1

YOKE

center

1шт.

1287712C1

PACKAGE

KIT, brg race and cross

1шт.

Used between LH yoke and shaft assy, 1287604C91 or RH yoke and shaft assy, 1287605C91 and center yoke, 1287606C1. Kit identified by grease purgable cross and full circular snap rings.

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old yoke spindle shaft (Ref. 30) has been replaced and updated to current production level (See Figure 07-60A) which includes end yoke assy, 1287607C91, then use kit, 1287712C1 in place of kit, 1277256C1.

1шт.

Used between center yoke, 1287606C1 and old yoke spindle shaft (Ref. 30). Kit identified by non-regreasable cross and "C" type snap rings.

1шт.

1277253C1

PACKAGE

KIT, seal and bearing, Consists of Ref. 25 - 27

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL, oil, Not serviced separately, Order kit, 1277253C1

2шт.

26

NSS

NOT SOLD SEPARAT

BEARING, ball, Not serviced separately, Order kit, 1277253C1

2шт.

27

NSS

NOT SOLD SEPARAT

RETAINER, bearing, Not serviced separately, Order kit, 1277253C1

2шт.

28

NSS

NOT SOLD SEPARAT

PLATE, retainer, Not serviced separately, Order yoke assy, 1287604C91 or yoke assy, 1287605C91

2шт.

29

YOKE, center

2шт.

Refer to service bulletin, S-4618 for rework and assembly instructions.

1шт.

See Figure 07-60C for Reordering Instructions

1шт.

On orders for these parts, order the following parts

1шт.

1287604C91

YOKE

ASSY, LH

1шт.

1287605C91

YOKE

ASSY, RH

1шт.

1287606C1

YOKE

center

1шт.

1287712C1

PACKAGE

KIT, brg race and cross

1шт.

Used between LH yoke and shaft assy, 1287604C91 or RH yoke and shaft assy, 1287605C91 and center yoke, 1287606C1. Kit identified by grease purgable cross and full circular snap rings.

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old yoke spindle shaft (Ref. 30) has been replaced and updated to current production level (See Figure 07-60A) which includes end yoke assy, 1287607C91, then use kit, 1287712C1 in place of kit, 1277256C1.

1шт.

Used between center yoke, 1287606C1 and old yoke spindle shaft (Ref. 30). Kit identified by non-regreasable cross and "C" type snap rings.

1шт.

30

1277255C1

SHAFT

YOKE and SHAFT ASSY, spindle

2шт.

Refer to service bulletin, S-4618 for rework and assembly instructions.

1шт.

See Figure 07-60A for Reordering Instructions

1шт.

On orders for these parts, order the following parts

1шт.

1277365C1

STEERING KNUCKLE

KNUCKLE, steering RH

1шт.

1277366C1

STEERING KNUCKLE

KNUCKLE, steering LH

1шт.

1277239C1

SEAL

oil

1шт.

1277368C91

SPINDLE

ASSY

1шт.

83968R1

BOLT,Hex, 9/16" x 1 1/2", Gr 8

9/16 x 1-1/2 phc type 8

18шт.

26054R1

WASHER,19/32" x 1 3/16" x .095", HDN

.594 x 1.188 x .095 phc

18шт.

1277247C1

PACKAGE

KIT, wheel end shim

1шт.

1277374C1

GEAR

sun

1шт.

1287607C91

YOKE

ASSY, end

1шт.

1277256C1

PACKAGE

KIT, brg race and cross

1шт.

If the old center yoke (Ref. 29) and old LH and RH yoke assy (Ref. 24) has been updated to current production level (See Figure 07-60C) then use kit, 1287712C1 in place of 1277256C1

1шт.

1277406C1

BALL STUD

BALL PIN, upper

1шт.

473001C1

SHIM

.005

6шт.

78810C1

SHIM

.010

6шт.

31

1277256C1

PACKAGE

KIT, brg race and cross, Consists of bearing race assy, cross assy and snap ring.

1шт.

NSS

NOT SOLD SEPARAT

BEARING RACE ASSY

4шт.

NSS

NOT SOLD SEPARAT

CROSS ASSY

1шт.

NSS

NOT SOLD SEPARAT

SNAP RING

4шт.

32

1280579C1

WHEEL NUT

wheel flanged

20шт.
