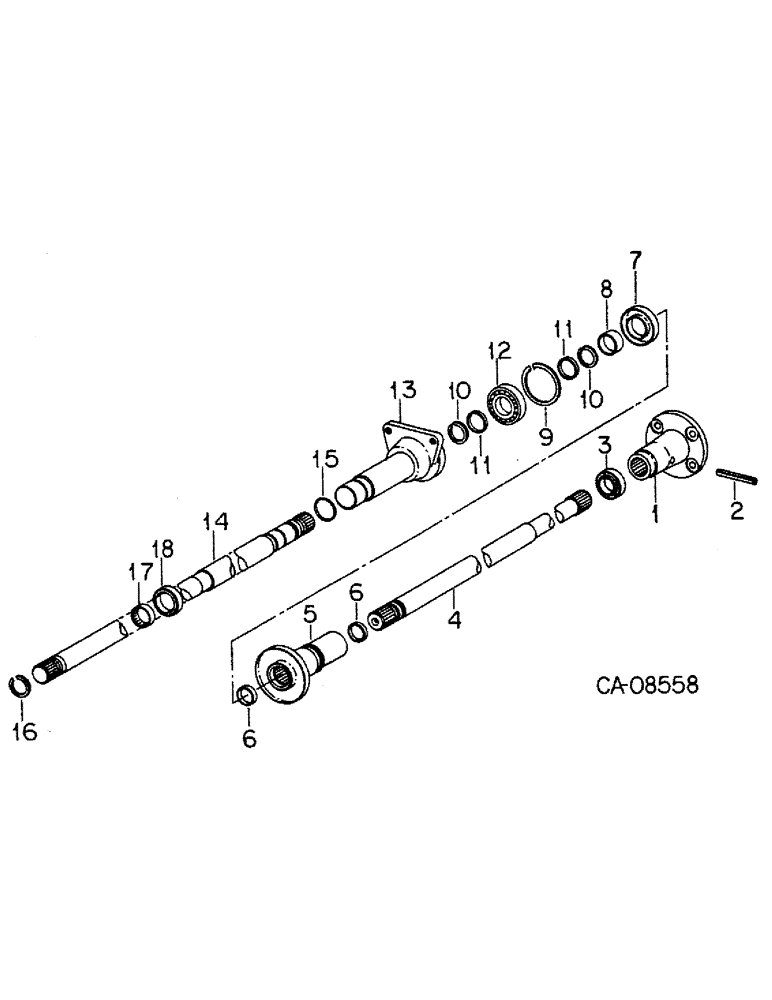

Запчасти Case IH 5088 (07-55) - DRIVE TRAIN, FRONT AXLE DRIVE AND OUTPUT SHAFTS, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

1

FLANGE, companion, Order flange, 1280955C1, four studs, 1287602C1, four nuts, 214442, four washers, 120384 and pin, 20767R1

1шт.

25535R1

WASHER

.469 x .922 x .065 phc hdn

4шт.

25525R1

NUT,7/16"-20, G8

7/16-NF phc type 8

4шт.

2

31043R1

PIN,M8 x 50, Coiled

8 x 50 mm hv pln cld/spr

1шт.

3

1277046C1

SEAL

grease

1шт.

4

1277145C3

SHAFT

front axle drive

1шт.

5

COUPLING W/SLINGER, shaft, On orders for this part, Order coupling, 1277147C1, Slinger from old coupling is not required

1шт.

6

310959R1

O-RING,-217, 70 Duro, 1.171" ID x .139" Thk

1-3/16 x 1-7/16 class 5

2шт.

7

1277149C1

SEAL

output shaft yoke

1шт.

8

1277148C1

SLEEVE

AWD lip seal

1шт.

9

30821R1

SNAP RING,#281, 3.025", Int

RING, 76.38 mm reg int rect sect ret

1шт.

10

933113R1

SNAP RING,M35, Ext, Hvy

RING, 31.7 mm hvy ext ret

2шт.

11

1251768C1

WASHER

output shaft back-up

2шт.

12

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, output shaft ball

1шт.

13

1277053C1

CAGE

ASSY, output shaft

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

14

SHAFT, output

1шт.

See Page Note for components to order.

1шт.

15

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-15/16 class 5

1шт.

16

1259828C1

RING

31.88 ext rect sect ret

1шт.

17

220304R91

NEEDLE BEARING

BEARING, needle, Part of speed trans. housing

1шт.

18

1280561C1

SLEEVE

bearing, Part of speed trans. housing

1шт.
