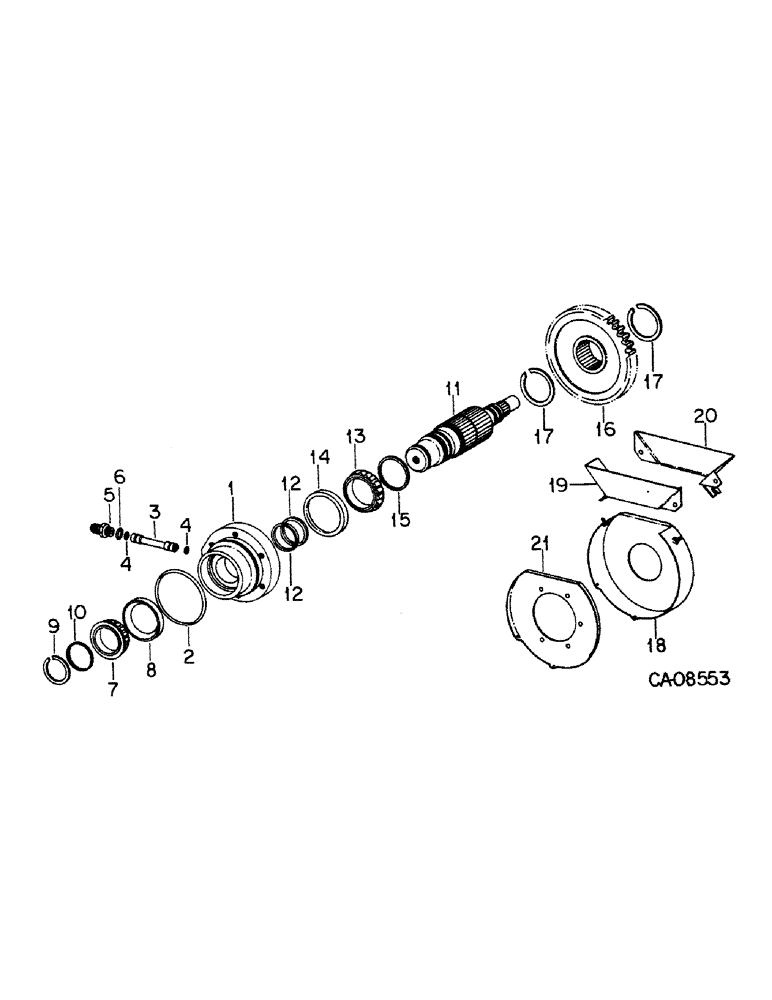

Запчасти Case IH 5088 (07-49) - DRIVE TRAIN, ALL WHEEL DRIVE INPUT SHAFT AND DRIVE GEAR, IN RANGE HOUSING, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

1

1251750C1

CAGE

bearing

1шт.

930550R1

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

M10 x 50 pln class 8.8

6шт.

2

22284R1

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

4-1/2 x 4-11/16 class 5, bearing cage

1шт.

3

1251761C1

TUBE,0.294" ID, 14.15 mm OD

oil inlet

1шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5, inlet tube

2шт.

5

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

7

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, front cone

1шт.

8

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, front cup

1шт.

9

398264R1

SNAP RING,#215, 2.026", Ext

RING, ext rect sect retaining

1шт.

5088 w/serial no. 6573 and below, 5288 w/serial no. 4421 and below, 5488 w/serial no. 2465 and below

1шт.

9

130489C1

RING

ext rect sect retaining

1шт.

5088 w/serial no. 6573 and below, 5288 w/serial no. 4421 and below, 5488 w/serial no. 2465 and below

1шт.

10

148749C2

SHIM

RING, 3.57 shim adj

1шт.

10

1277300C1

RING

3.12 shim adj

1шт.

5088 w/serial no. 6574 and above, 5288 w/serial no. 4422 and above, 5488 w/serial no. 2466 and above

1шт.

10

148750C2

RING

3.21 shim adj

1шт.

10

148751C2

RING

3.30 shim adj

1шт.

10

148752C2

RING

3.39 shim adj

1шт.

10

148753C2

RING

3.48 shim adj

1шт.

11

SHAFT, clutch carrier input

1шт.

See Figure 07-51A for Instructions on Ordering this Part.

1шт.

5088 w/serial no. 6573 and below, 5288 w/serial no. 4421 and below, 5488 w/serial no. 2465 and below

1шт.

11

1277291C1

SHAFT

clutch carrier input

1шт.

30384R1

SET SCREW,Hex Soc, M12 x 16, Cup Pt

SCREW, M12 x 16 c/pt pln hdl/hs set

1шт.

12

1259535C1

RING,Locking, 57.6mm ID x 62.6mm OD x 3.8mm Thk

clutch carrier shaft press or

2шт.

12

1259613C1

RING

clutch carrier shaft press

2шт.

13

625742C91

BEARING

ASSY, rear cone

1шт.

14

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, rear cup

1шт.

15

148754C1

WASHER

bearing back-up

1шт.

15

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

bearing back-up

1шт.

16

148755C1

GEAR

AWD and emergency brake driven, 53 teeth, 5088 w/serial no. 8525 and below, 5288 w/serial no. 6241 and below, 5488 w/serial no. 4267 and below

1шт.

16

1277037C2

GEAR

AWD and emergency brake driven, 53 teeth, 5088 w/serial no. 8526 and above, 5288 w/serial no. 6242 and above, 5488 w/serial no. 4268 and above

1шт.

17

327059R1

SNAP RING,#275, 2.594, Ext

RING, 2.594 ext rect sect ret

2шт.

18

1250188C2

SHIELD

ASSY, lower front

1шт.

31166R1

SCREW

4.8 x 10 mm h/wh tap znd

5шт.

19

1250182C2

SHIELD

ASSY, upper rear

1шт.

20

1250185C2

SHIELD

ASSY, upper front

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

2шт.

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

M6 x 12 phc class 10.9

2шт.

21

1250187C2

SHIELD

lower rear

1шт.

30796R1

BOLT

BOLT, M8 x 16 phc p/t class 10.9

5шт.
