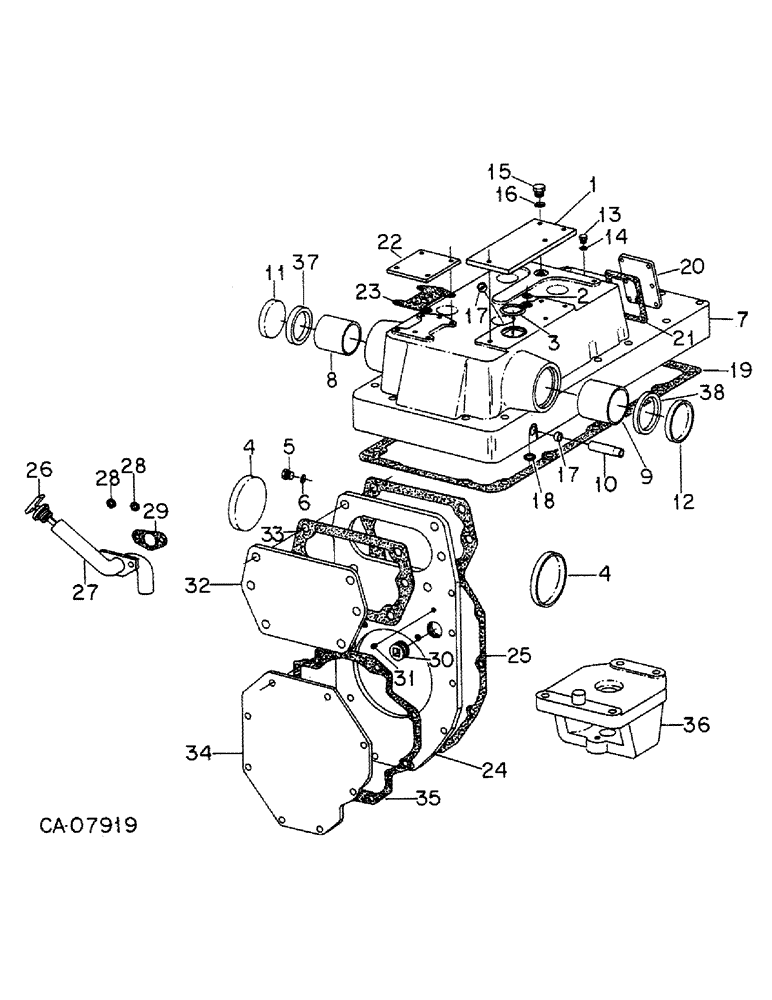

Запчасти Case IH 5088 (07-40) - DRIVE TRAIN, AXLE HOUSING COVERS (04) - Drive Train

1

145460C1

BAR

DC supply port, Cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

30351R1

DOWEL,M16 x 35

PIN, 16 x 35 mm pln hdn dowel

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

4

383331R1

PLUG,Cup, 4.26"

4.260 OD cup

2шт.

5

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

7

142633C91

COVER

ASSY, rear frame, Includes: Ref. 8 - 18

1шт.

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

M16 x 100 pln class 8.8

16шт.

8

382774R2

BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L

BEARING, rockshaft LH

1шт.

9

382775R2

BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L

BEARING, rockshaft RH

1шт.

10

382798R1

BUSHING

eccentric shaft position control

1шт.

11

380174R1

PLUG,Cup, 3.510"

1шт.

12

380173R1

PLUG,Cup, 3.762"

1шт.

13

9410357

PLUG

5/16 C-Z str thd o-ring boss

1шт.

15

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

17

380263R1

PLUG

eccentric shaft and mtg bolt opening cup

5шт.

18

387926R2

RING

draft control port cover seal

1шт.

19

380264R2

GASKET

rear frame cover

1шт.

20

382415R1

COVER

valve adj opening

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

5шт.

28253R1

BOLT

5/16 x 5/8 phc p/t type 5

1шт.

21

382416R1

GASKET

valve adj opening cover

1шт.

22

148842C1

BAR

IPTO valve opening, Cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

145287C1

GASKET

IPTO valve opening cover

1шт.

24

139331C2

PLATE

IPTO adapter

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

25

139332C1

GASKET

IPTO adapter plate

1шт.

26

139398C2

DIPSTICK

GAUGE ASSY, trans oil level

1шт.

27

139392C1

TUBE,92 mm Length

ASSY, dip stick guide

1шт.

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

M12 x 45 pln class 8.8

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

1шт.

28

108522C1

WASHER

flat copper sealing

3шт.

29

139395C1

GASKET,0.79mm Thk

dipstick guide tube

1шт.

30

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 11-1/2 pln sq/skt auto pipe

1шт.

31

444689

PLUG,Hex Soc, 1/8"-27, Brass

1/8-27 pln hex/skt auto pipe

1шт.

32

139334C1

COVER

upper link bracket opening

1шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

M20 x 50 pln class 8.8

6шт.

33

142630C1

GASKET

upper link bracket cover

1шт.

34

139333C1

COVER

IPTO opening

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

2шт.

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

M12 x 45 pln class 8.8

6шт.

35

139286C1

GASKET

IPTO opening cover

1шт.

36

142619C1

SUPPORT

ASSY, drawbar pivot

1шт.

30368R1

DOWEL,M25 x 50

PIN, 25 x 50 mm pln hdn dowel

1шт.

934738R1

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

30186R1

WASHER,M16 x 34.5 x 5, HT

17.3 x 34 x 5 mm phc

4шт.

37

382776R91

OIL SEAL

rockshaft oil LH

1шт.

38

382778R91

OIL SEAL

rockshaft oil RH

1шт.

14

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
