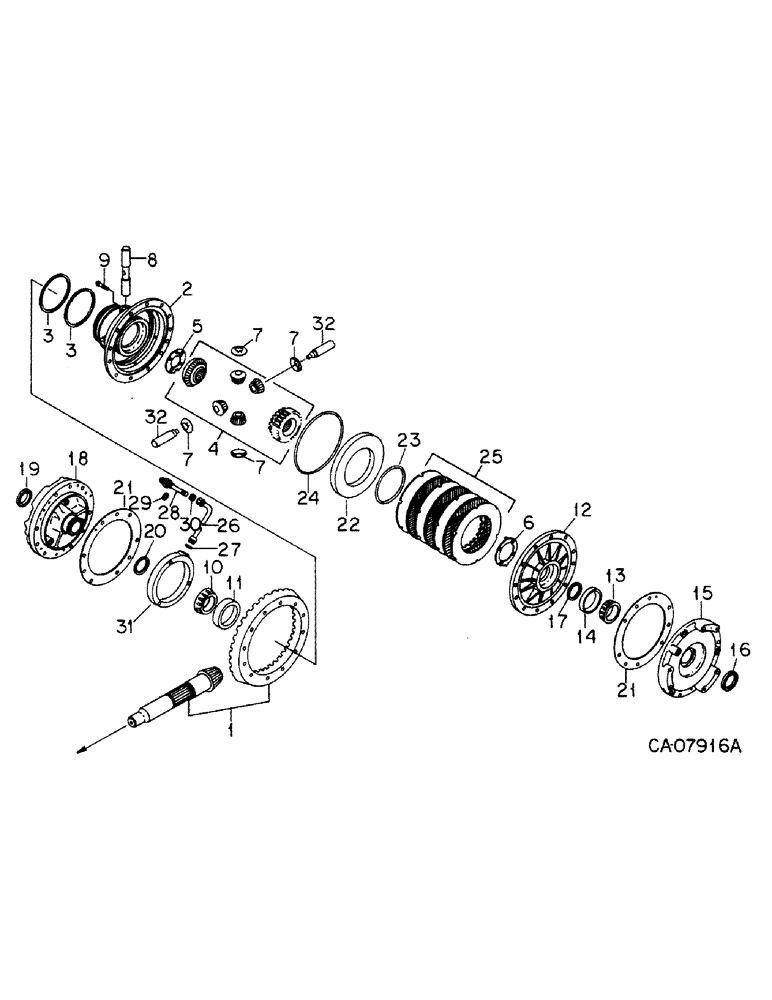

Запчасти Case IH 5088 (07-32) - DRIVE TRAIN, DIFFERENTIAL AND BEVEL GEARS, 5088 TRACTORS (04) - Drive Train

1

1270676C1

GEAR-SET

BEVEL GEARS, matched set

1шт.

1506472R2

DIFFERENTIAL ASSY

., Includes Ref. 2 - 12 plus Cup

1шт.

2

137797C3

CASE

diff RH

1шт.

30386R1

DOWEL,M10 x 55

PIN, 10HD x 55 mm pln dowel

6шт.

3

148940C1

RING

diff lock seal

2шт.

3

139155C1

RING

diff lock seal

2шт.

4

1264925C94

GEAR-SET

GEAR SET, differential 12/22T, Replaces 1264509C92, Consists of

1шт.

1264681C2

GEAR

bevel 22T

1шт.

1264923C2

GEAR

bevel 12T

4шт.

1264682C2

GEAR

lock bevel 22T

1шт.

1276936C1

THRUST WASHER,90mm ID x 128mm OD x 1.6mm Thk

lock thrust

1шт.

1276935C1

THRUST WASHER,58mm ID x 112mm OD x 1.6mm Thk

thrust

1шт.

1264924C2

THRUST WASHER,29mm ID x 60mm OD x 1.6mm Thk

pinion thrust

4шт.

5

1276935C1

THRUST WASHER,58mm ID x 112mm OD x 1.6mm Thk

diff thrust

1шт.

6

1276936C1

THRUST WASHER,90mm ID x 128mm OD x 1.6mm Thk

diff lock thrust

1шт.

7

1264924C2

THRUST WASHER,29mm ID x 60mm OD x 1.6mm Thk

diff pinion gear, Replaces 1264521C1

4шт.

8

139053C1

PIN

diff pinion, Used with gear set 1264509C92

1шт.

8

1276902C1

SHAFT

pinion, long

1шт.

9

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT, diff pinion pin, Replaces 139190C1

2шт.

10

529452R91

ROLLER BEARING

ASSY, cone RH

1шт.

11

529453R1

BEARING, CUP

BEARING cup RH

1шт.

12

1264905C1

CASE

diff, LH, Replaces 137800C2

1шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

16 mm hdn

12шт.

30068R1

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

13

622336C91

ROLLER BEARING

ASSY, cone LH

1шт.

14

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, cup LH

1шт.

15

137756C2

RETAINER

LH diff bearing

1шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65 mm pln hdn dowel

5шт.

16

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

retainer diff lip LH

1шт.

17

139060C1

SEALING RING

RING, diff bearing seal or

1шт.

17

148941C1

RING

diff bearing seal

1шт.

18

137798C93

RETAINER

ASSY, RH differential

1шт.

30348R1

DOWEL,M10 x 60

PIN, 10 x 60 mm pln hdn dowel

3шт.

30350R1

DOWEL,M12 x 65

PIN, 12 x 65 mm pln hdn dowel

5шт.

934252R1

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

6шт.

19

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

diff retainer lip RH

1шт.

20

139063C1

RING

diff retainer seal or

1шт.

20

148942C1

RING

diff retainer seal

1шт.

21

1264586C91

PACKAGE

diff. retainer shim, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .178 mm/.007 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .305 mm/.012 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .737 mm/.029 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .102 mm/.004 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .089 mm/.0035 in.

2шт.

22

120490C1

PISTON

DIFF LOCK

1шт.

23

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 class 5

1шт.

24

27929R1

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

12 x 12-1/4 class 5

1шт.

25

1264588C91

PACKAGE

diff. lock friction plate, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PLATE, lock friction

3шт.

NSS

NOT SOLD SEPARAT

PLATE, lock separator

4шт.

26

137803C1

HYD TUBE,9.25 mm Diameter, 222, 54.9 mm Length

TUBE ASSY, diff lock

1шт.

27

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

28

120674C1

UNION

diff lock

1шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

30

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

1шт.

31

139226C1

RING

diff lock slip

1шт.

32

139053C1

PIN

diff pinion, Used w/gear set 1264509C92

4шт.

32

1285777C1

SHAFT

pinion, short, Replaces 1276903C1 by also ordering bolt, 1285778C1

1шт.

1270677C92

DIFFERENTIAL

PACKAGE, diff service, For 5088 tractors, Consists of Ref. 2, 3, 4, 9, 10, 11, 12, 13, 14, 17, 20, 22, 23, 24, 25, attaching hardware and

1шт.

1276902C1

SHAFT

diff pinion, long

1шт.

1285777C1

SHAFT

diff pinion, short

2шт.
