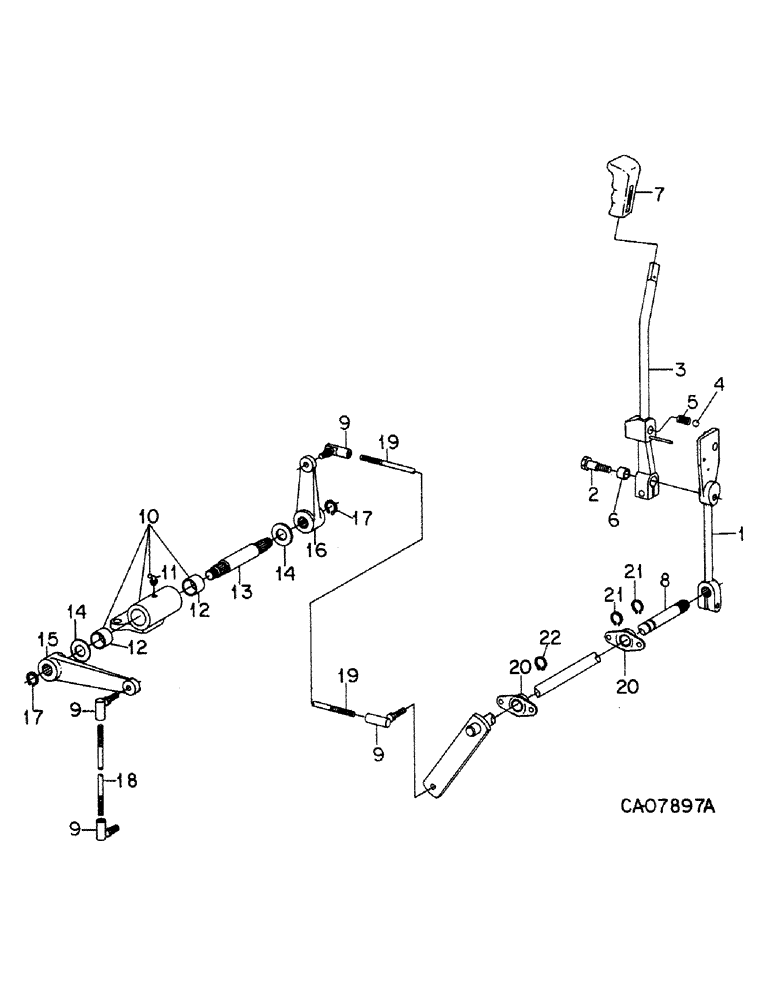

Запчасти Case IH 5088 (07-24) - DRIVE TRAIN, TRANSMISSION CONTROLS, EXTERNAL SPEED (04) - Drive Train

1

1251580C3

HANDLE

lower speed

1шт.

2

1251579C1

STEP BOLT,Hex, M12 x 1.75 x 61mm, Cl 8.8

BOLT, shoulder speed shift

1шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

1шт.

30274R1

JAM NUT,M12, Cl 10

M12 class 10

1шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

3

1251581C93

HANDLE

ASSY, speed shift, upper

1шт.

30224R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30 phc p/t class 10.9

1шт.

30818R1

LOCK PIN,M4 x 50, Slotted

PIN, 4 x 50 mm pln slt-spr

1шт.

4

30453R1

BALL

no. 10 grade 28 metal

1шт.

5

454098R1

SPRING

detent ball

1шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

M12 x 25 class 8.8

1шт.

6

1251578C1

BUSHING

speed handle pivot

1шт.

7

1259590C2

KNOB

speed trans. handle

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

8

1251577C3

SHAFT

ASSY, speed, Tractors w/o dynamic brake

1шт.

8

1280787C1

SHAFT

ASSY, speed, Tractors w/dynamic brake

1шт.

9

158397H1

BALL JOINT

JOINT, 3/8 C-Z type A ball

4шт.

118625

NUT

3/8-NF phc jam type 5

4шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-NF cad p/t lock type 5

4шт.

10

144221C91

BRACKET

ASSY, speed shift bellcrank

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

11

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 hole 65D lub

1шт.

12

144222C1

BUSHING

2шт.

13

144172C1

SHAFT

speed shift bellcrank

1шт.

14

144223C1

WASHER

spacer speed shift bellcrank

2шт.

15

144174C1

LEVER

speed shift bellcrank, outer

1шт.

16

144175C1

LEVER

speed shift bellcrank, inner

1шт.

17

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

18

144220C1

ROD

, Serial Range: bellcrank-cam

1шт.

19

144219C1

ROD

pivot, Serial Range: shaft-bellcrank

1шт.

20

1251903C1

FLANGE

ASSY, bearing

2шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

4шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

4шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

21

21424R1

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

22

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.
