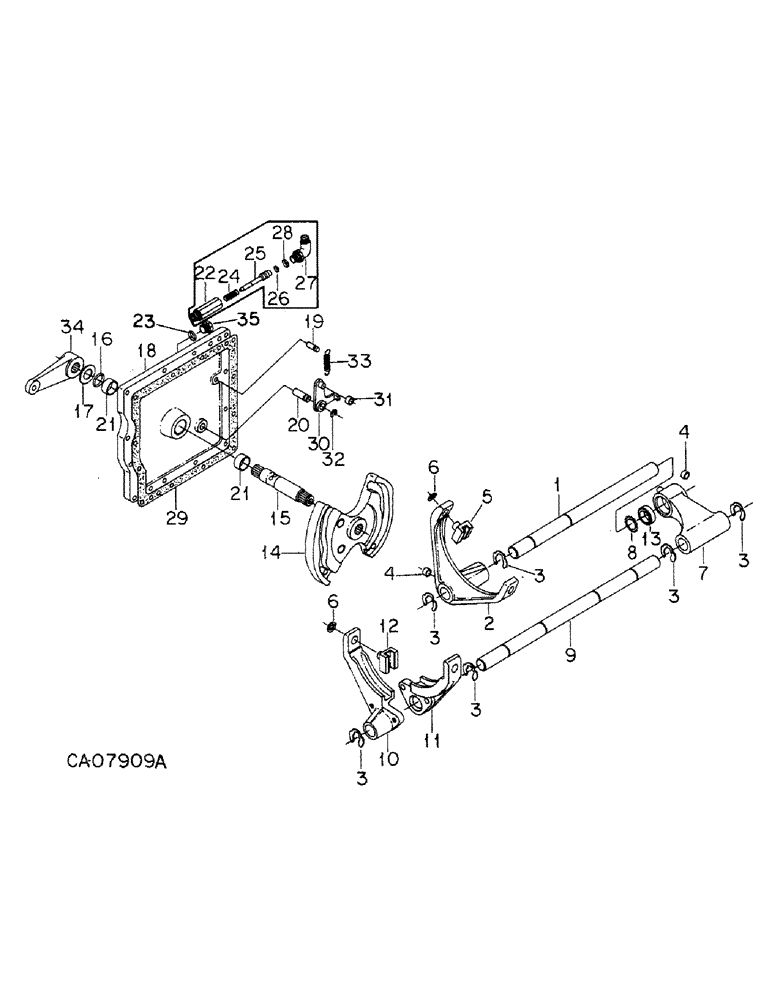

Запчасти Case IH 5088 (07-20) - DRIVE TRAIN, TRANSMISSION CONTROL, INTERNAL SPEED (04) - Drive Train

1

144151C3

ROD

shift fork 5 and 6 speed (Shaft)

1шт.

2

1259856C1

FORK

ASSY, 5 and 6 shift

1шт.

3

1259730C1

RING

external retaining

6шт.

4

144154C1

BUSHING,12.08mm ID x 17.45mm OD x 10.92mm L

cam roller

2шт.

5

1251891C2

PAD

ASSY, shift fork

2шт.

6

25385R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

2шт.

7

144157C2

LINK

ASSY, shift fork actuating

1шт.

8

1251637C1

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

1шт.

9

1259851C2

SHAFT

1-2, 3-4 shift fork

1шт.

10

1259867C1

FORK

1-2, 3-4 shift rear

1шт.

11

1259868C1

FORK

1-2, 3-4 shift front

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

12

1259853C1

PAD

ASSY, shift fork

2шт.

13

144159C2

RING

fork link anti-friction

1шт.

14

1259862C1

CAM

ASSY, shift

1шт.

1276984C1

WASHER

cam arm ret

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.

15

144144C3

SHAFT

cam pivot

1шт.

16

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 class 5

1шт.

17

120967C1

THRUST WASHER

cam thrust and shift arm

2шт.

18

144141C93

COVER

ASSY, trans shift, Includes Ref. 19 - 21

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

11шт.

30224R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30 phc p/t class 10.9

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, steering make-up tube

1шт.

19

382563R1

PIN

1шт.

20

382564R1

PIN

1шт.

21

139408C2

BUSHING

2шт.

22

1259721C1

O-RING

BODY, speed trans shift lockout

1шт.

For service replacement, order Plug, 1301653C1, O-ring, 570828R1 and Cap, 9403371.

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, For cover, 144141C91 and C92

1шт.

24

1259722C1

SPRING

lockout pin return

1шт.

25

1259723C1

O-RING

PIN, speed tran shift locknut

1шт.

26

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

1/16 x 1/2 OD s-treated

1шт.

27

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

29

144143C1

GASKET

trans shift cover

1шт.

30

144148C1

ARM

ASSY, cam detent

1шт.

31

68065C1

ROLLER

detent arm

1шт.

11002VA

WASHER

.531 x .875 x .054 pln

1шт.

32

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

33

144150C1

SPRING

detent arm

1шт.

34

144145C1

ARM

cam operating

1шт.

1276984C1

WASHER

cam arm ret

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.

35

1301653C1

PLUG,3/4" - 16 x 9.50mm

PLUG, speed shift lock-out, For cover, 144141C91 and C92

1шт.
