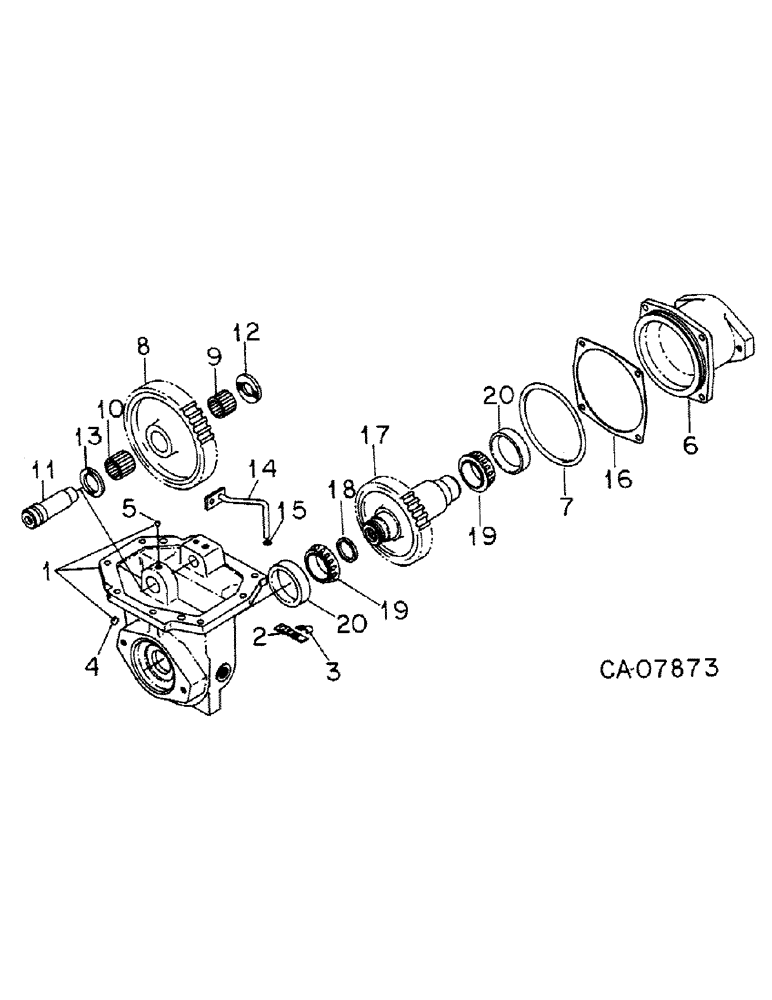

Запчасти Case IH 5088 (07-19) - DRIVE TRAIN, HYDRAULIC PUMP DRIVE (04) - Drive Train

1

120943C91

HOUSING

ASSY, pump drive

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

7шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

1шт.

2

1264603C1

BRACKET

pump signal tube

1шт.

3

1264602C1

CLAMP

CLIP, pump signal tube

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

4

116887C1

PLUG

orifice, vent

1шт.

5

17012R1

BALL,3/8" Dia

1шт.

6

120923C1

CAGE

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

7

22416R1

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

5-7/8 x 6-1/8 class 5

1шт.

8

137740C1

GEAR

pump drive idler

1шт.

9

3106212R91

BEARING ASSY,1.25" ID x 1.6264" OD x 1"

BEARING, pump drive idler gear

1шт.

10

149010C91

NEEDLE BEARING

pump drive idler gear

1шт.

11

120922C1

SHAFT

idler gear

1шт.

30595R1

BOLT,Nasp

M10 x 150 pln class 8.8

1шт.

12

137742C1

THRUST WASHER

idler gear thrust, front

1шт.

13

116798C1

THRUST WASHER

idler gear thrust, rear

1шт.

14

120916C3

TUBE,73, 64 mm Length

ASSY, lub spray

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.

15

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 class 5

1шт.

16

1264557C91

PACKAGE

hyd pump driven shim, Consists of

1шт.

SHIM, .080 mm/.003 in. (NSS)

3шт.

SHIM, .100 mm/.004 in. (NSS)

3шт.

SHIM, .130 mm/.005 in. (NSS)

3шт.

SHIM, .300 mm/.012 in. (NSS)

3шт.

SHIM, .760 mm/.030 in. (NSS)

3шт.

17

139219C1

GEAR

ASSY, hyd pump driven

1шт.

18

116797C2

RING

pump driven gear seal or

1шт.

18

148944C2

RING

pump driven gear seal

1шт.

19

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

BEARING ASSY, hyd pump driven gear cone

2шт.

20

400988C1

BEARING, CUP

Hyd pump driven gear

2шт.
