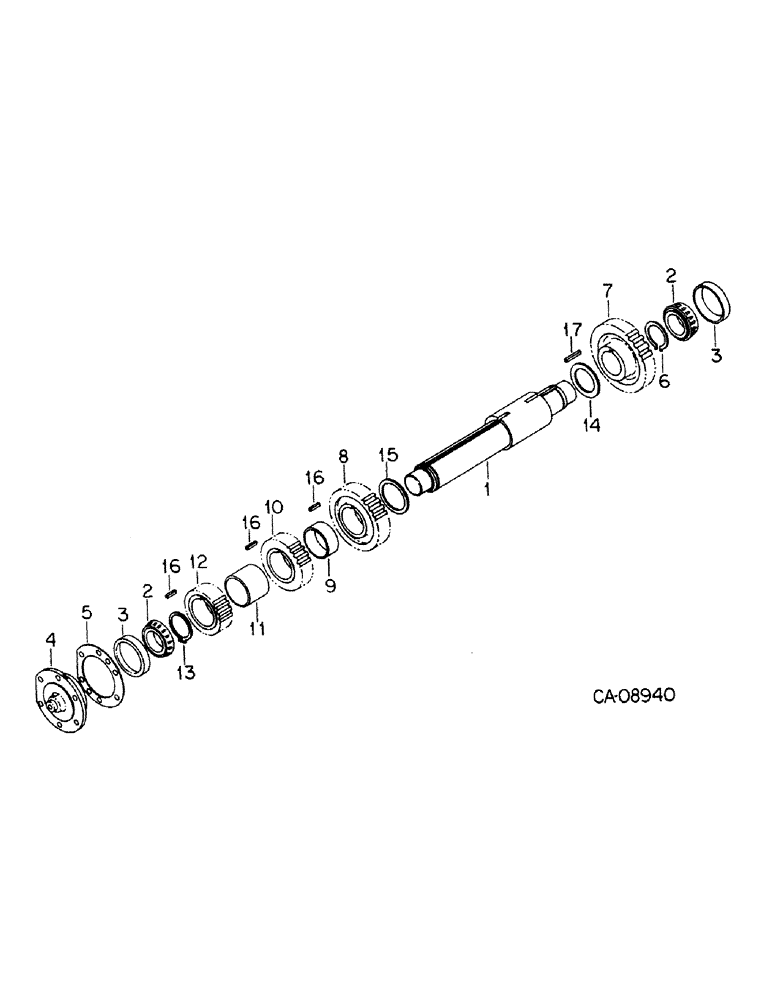

Запчасти Case IH 5088 (07-18) - DRIVE TRAIN, SPEED TRANSMISSION COUNTERSHAFT (04) - Drive Train

1

1277491C1

SHAFT

COUNTERSHAFT, speed

1шт.

2

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING ASSY, cone 5088

2шт.

2

PO12993

BEARING CONE

BEARING ASSY, Cone 5288 and 5488

2шт.

3

376463C1

BEARING CUP

BEARING, cup 5088

2шт.

3

22365V

BEARING CUP,3.6718" OD x 0.93"

BEARING, Cup 5288 and 5488

2шт.

4

1286372C1

CAGE

countershaft bearing, Includes: Bolt

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

5

1264551C92

STRIPPER PACKAGE

PACKAGE, countershaft bearing cage shim, Includes: Shims Listed Below

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .080 mm/.003 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .100 mm/.004 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .130 mm/.005 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .300 mm/.012 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .760 mm/.030 in.

2шт.

6

28629R1

SNAP RING,#243, Ext

Ring, Snap, , lo-driven gear #243, Ext

1шт.

7

1277492C1

GEAR

constant mesh lo-driven 45T

1шт.

8

1277493C1

GEAR

constant mesh hi-driven 43T

1шт.

9

1277494C1

SPACER

3rd and 4th drive gear

1шт.

10

1277495C1

GEAR

3rd and 4th drive gear 36T

1шт.

11

1277496C1

SPACER

3rd and 4th drive gear

1шт.

12

1277497C1

GEAR

1st and 2nd drive 31T

1шт.

13

233042R1

SNAP RING,#275, Ext

RING, 2.543 ext ret

1шт.

14

1286367C1

WASHER

countershaft gear, front

1шт.

15

1286368C1

WASHER

countershaft gear, rear

1шт.

16

1286376C1

KEY

drive shaft, short

3шт.

17

1277498C1

KEY

drive shaft, long

1шт.
