Запчасти Case IH 5088 (07-17) - DRIVE TRAIN, SPEED TRANSMISSION COUNTERSHAFT (04) - Drive Train

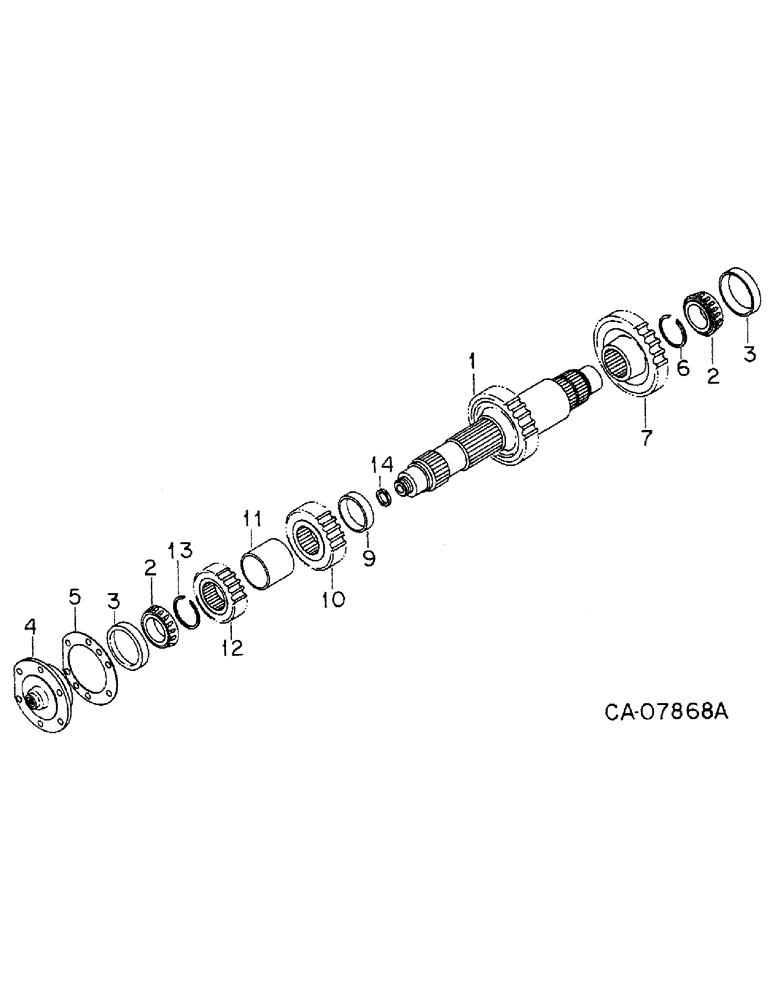

Схема запчастей Case IH 5088 - (07-17) - DRIVE TRAIN, SPEED TRANSMISSION COUNTERSHAFT (04) - Drive Train
3
2
3
9
13
6
1
14
7
11
10
4
2
12
5

Артикул

Название

Примечание

Количество

1

1285893C2

SHAFT

COUNTERSHAFT ASSY, speed, Replaces countershaft, 1259858C2 and gear, 120573C3, Order package 1286486C91

1шт.

2

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING ASSY, cone

2шт.

3

376463C1

BEARING CUP

BEARING, cup

2шт.

4

137818C2

CAGE

speed ctr. shaft bearing, Includes: Bolt

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

5

1264551C92

STRIPPER PACKAGE

PACKAGE, ctr shaft brg cage shim, Includes: Shims Listed Below

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .080 mm/.003 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .100 mm/.004 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .130 mm/.005 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .300 mm/.012 in.

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .760 mm/.030 in.

2шт.

6

143906C1

SNAP RING

RING, lo-driven gear retainer

1шт.

7

120569C1

GEAR

constant mesh lo-driven 45T, Order package, 1286486C91

1шт.

8

NOT USED

1шт.

9

1259839C1

SPACER

3rd and 4th drive gear

1шт.

10

1259840C1

GEAR

3rd and 4th drive gear, 36T, Order package, 1286486C91

1шт.

11

1259841C1

SPACER

3rd and 4th drive gear

1шт.

12

1259842C1

GEAR

1st and 2nd drive, 31T, Order package, 1286486C91

1шт.

13

120966C1

RING

hi-driven gear retainer

1шт.

14

148945C2

RING

countershaft seal 33 mm or

1шт.

14

144242C2

RING

countershaft seal 33 mm

1шт.

1286486C91

KIT

PACKAGE, countershaft 5-6 and hi-gear, Includes: Parts Listed Below

1шт.

1286485C91

KIT

PACKAGE, low drive gear

1шт.

1264897C1

GEAR

5th and 6th speed driven 44T

1шт.

1277491C1

SHAFT

COUNTERSHAFT, speed

1шт.

1277492C1

GEAR

constant mesh lo-driven 45T

1шт.

1277493C1

GEAR

constant mesh hi-driven 43T

1шт.

1277494C1

SPACER

3rd-4th drive gear

1шт.

1277495C1

GEAR

3rd and 4th drive gear 36T

1шт.

1277496C1

SPACER

3rd and 4th drive gear

1шт.

1277497C1

GEAR

1st and 2nd drive 31T

1шт.

233042R1

SNAP RING,#275, Ext

RING, 2.543 ext ret

1шт.

1286367C1

WASHER

countershaft gear, front

1шт.

1286368C1

WASHER

countershaft gear, rear

1шт.

1286376C1

KEY

drive shaft, short

3шт.

1277498C1

KEY

drive shaft, long

1шт.

28629R1

SNAP RING,#243, Ext

Ring, Snap, , lo-driven gear #243, Ext

1шт.

1286484C1

GEAR

constant mesh hi-drive 44T

1шт.

1286399C1

SEALING RING

RING, shift clutch seal

1шт.

139018C3

PLATE

ASSY, shift clutch backing

1шт.

Выбрано товаров: 40
