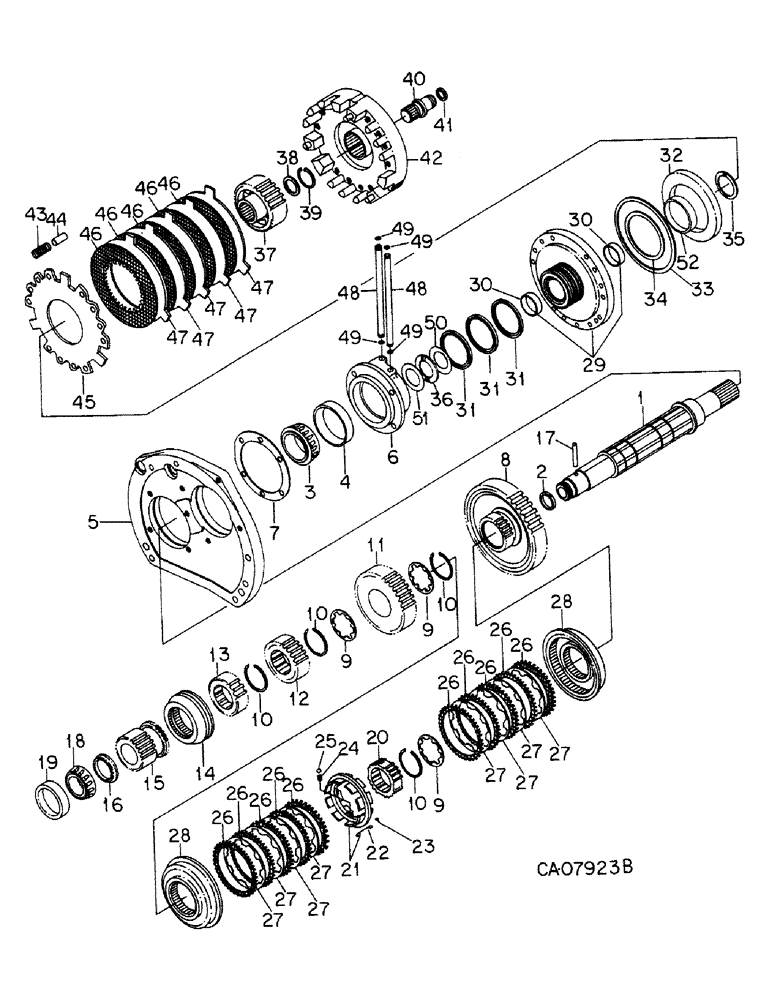

Запчасти Case IH 5088 (07-14) - DRIVE TRAIN, RANGE INPUT SHAFT (04) - Drive Train

1

120895C3

SHAFT

range input

1шт.

2

116797C2

RING

lube pressure seal or

1шт.

2

148944C2

RING

lube pressure seal

1шт.

3

630203C91

TAPERED BEARING

ASSY, front cone, 5288 and 5488 tractors

1шт.

3

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, front cone, 5088 tractors

1шт.

4

630204C1

BEARING CUP

front cup, 5288 and 5488 tractors

1шт.

4

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, front cup, 5088 tractors

1шт.

5

120897C1

SUPPORT

range transmission bearing

1шт.

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

M12 x 50 pln class 8.8

6шт.

6

148640C2

CAGE

range input shaft front brg, 5088 tractors

1шт.

6

139203C2

CAGE

range input shaft front brg, 5288 and 5488 tractors

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

7

1264555C91

SHIM KIT

PACKAGE, input shaft bearing cage shim, Consists of

1шт.

SHIM, .080 mm/.003 in. (NSS)

2шт.

SHIM, .100 mm/.004 in. (NSS)

2шт.

SHIM, .130 mm/.005 in. (NSS)

2шт.

SHIM, .300 mm/.012 in. (NSS)

2шт.

SHIM, .760 mm/.030 in. (NSS)

2шт.

8

120580C1

GEAR

Hi range driving 53T

1шт.

9

110409C1

THRUST WASHER,57.4mm ID x 72mm OD x 2.5mm Thk

Hi range gear thrust

3шт.

10

139145C1

RING

Hi range gear retainer

4шт.

11

120876C1

GEAR

Mid range driving 38T

1шт.

12

120877C1

GEAR

Lo range driving 22T

1шт.

13

144365C1

CARRIER

rev shift collar

1шт.

14

144366C1

SPLINED COUPLING

COUPLING, rev shift

1шт.

15

120591C1

GEAR

reverse drive, 20T, 5088 w/serial no. 8525 and below, 5288 w/serial no. 6241 and below, 5488 w/serial no. 4267 and below

1шт.

15

1277034C2

GEAR

reverse drive, 20T, 5088 w/serial no. 8526 and above, 5288 w/serial no. 6242 and above, 5488 w/serial no. 4268 and above

1шт.

16

120904C2

RING

rev gear thrust

1шт.

17

1251884C1

PIN

6 x 55MM pln hdn dowel

1шт.

18

533726R91

BEARING

ASSY, cone

1шт.

19

533727R1

BEARING, CUP

1шт.

20

144350C2

CARRIER

blocker ring

1шт.

21

144362C92

RING

ASSY, synchronizer blocker, Includes: Ref. 22 and 23

1шт.

22

144364C3

RETAINER

synchronizer pack

2шт.

23

1270541C1

RIVET

synchronizer pack retainer

2шт.

24

144352C1

SPRING

blocker ring detent

4шт.

25

17005R1

BALL,5/32" Dia

5/32 grade 25 metal

4шт.

26

144333C1

DISC

. ASSY, synchronizer friction

10шт.

27

144334C1

PLATE

separator

8шт.

28

144369C1

DRUM

synchronizer

2шт.

29

144370C95

HOUSING

ASSY, master clutch piston, Composed of

1шт.

HOUSING (NSS)

1шт.

30971R1

SET SCREW,Hex Soc, M8 x 8, Cup Pt

SCREW, M8 x 8 pln ast hdl/hs set

3шт.

144294C1

BUSHING,50.84mm ID x 53.98mm OD x 16mm L

clutch piston hsg

2шт.

1270451C1

SLEEVE

master clutch

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

12шт.

30

144294C1

BUSHING,50.84mm ID x 53.98mm OD x 16mm L

clutch piston hsg

2шт.

31

148938C3

RING

clutch piston hsg seal

3шт.

32

120841C1

PISTON

master clutch

1шт.

33

120842C2

RING

master clutch O.D. seal

1шт.

34

120843C1

RING

master clutch I.D. seal

1шт.

35

144345C1

THRUST WASHER,30T

clutch hub thrust

1шт.

36

584268R91

THRUST BEARING

ASSY, thrust, Replaces 144300C1 by also ordering 584269R1 and 613179R1

1шт.

37

120844C4

HUB

master clutch

1шт.

38

144339C1

WASHER

hub retaining

1шт.

39

144371C1

RING

hub retaining

1шт.

40

144306C2

FITTING

clutch hub ret

1шт.

41

144242C2

RING

hub ret seal, 33 mm or

1шт.

41

148945C2

RING

hub ret seal, 33 mm

1шт.

42

144323C93

PLATE

ASSY, master clutch reactor, 5288 and 5488 tractors

1шт.

42

1259880C91

LARGE PLATE

PLATE ASSY, master clutch reactor, 5088 tractors

1шт.

30345R1

DOWEL,M10 x 25

PIN, 10 x 25 mm pln hdn dowel

3шт.

43

144295C1

SPRING

CLUTCH RETURN

12шт.

44

144296C1

SPACER

clutch spring stop, 5288 and 5488 tractors

12шт.

44

148659C2

SPACER

clutch spring stop, 5088 tractors

12шт.

45

PLATE, master clutch backing, Furnish master clutch package, 1264556C93 for 5088 and 5288, 1264940C94 for 5488

1шт.

46

PLATE, master clutch friction, 4 used on 5088, Furnish package 1264556C93, 5 used on 5288, Furnish package 1264556C93, 6 used on 5488, Furnish package 1264940C94

1шт.

47

PLATE, master clutch separator, 4 used on 5088, Furnish package 1264556C93, 5 used on 5288, Furnish package 1264556C93, 6 used on 5488, Furnish package 1264940C94

1шт.

48

144184C1

TUBE,0.75" OD, 199.84 mm Length

master clutch lube and press

2шт.

49

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

4шт.

50

584269R1

DISC

WASHER, thrust bearing front

1шт.

51

613179R1

THRUST WASHER

thrust bearing, rear

1шт.

52

1270451C1

SLEEVE

master clutch

1шт.

1264556C93

CLUTCH PACK

PACKAGE, master clutch plate, 5088 and 5288 tractors, Consists of

1шт.

PLATE, master clutch friction (NSS)

5шт.

PLATE, master clutch separator (NSS)

5шт.

PLATE, master clutch backing (NSS)

1шт.

1264940C94

PACKAGE

master clutch plate, 5488 tractors, Consists of

1шт.

PLATE, master clutch friction (NSS)

6шт.

PLATE, master clutch separator (NSS)

6шт.

PLATE, master clutch backing (NSS)

1шт.
