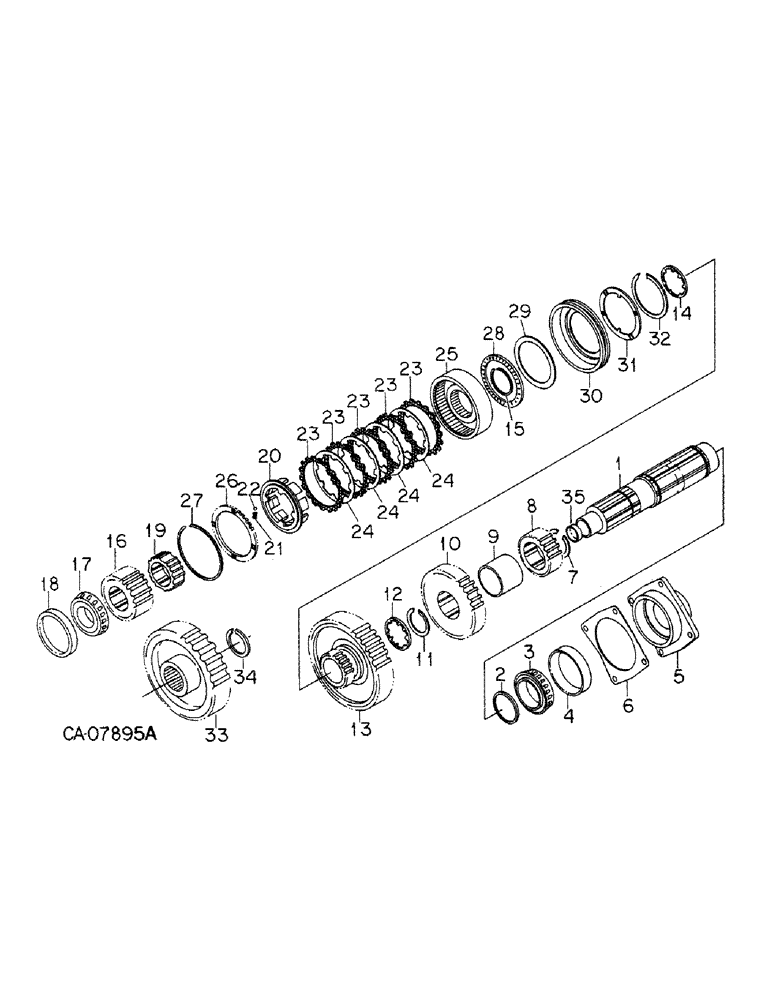

Запчасти Case IH 5088 (07-10) - DRIVE TRAIN, RANGE TRANSMISSION COUNTERSHAFT (04) - Drive Train

1

1251592C3

COUNTERSHAFT

ASSY, range, Tractors without IPTO, Order countershaft, 1277190C1 and plug, 379278C1

1шт.

1

120859C3

SHAFT

COUNTERSHAFT ASSY, range, Tractors with IPTO, Order countershaft, 1285833C1, Bearing assy, 1277191C1, Seal, 1277193C1 and shaft, 1277192C1 for 5088 w/serial no. 7760 and below, 5288 w/serial no. 5596 and below, 5488 w/serial no. 3651 and below

1шт.

1

1285833C1

SHAFT

COUNTERSHAFT, range, Tractors w/IPTO, 5088 w/serial nos 7761 to 8036, 5288 w/serial nos 5597 to 5847, 5488 w/serial nos, Serial Range: 3652-3901

1шт.

1

1277190C1

SHAFT

COUNTERSHAFT, range, All tractors, 5088 w/serial no. 8037 and above, 5288 w/serial no. 5848 and above, 5488 w/serial no. 3902 and above

1шт.

2

120863C1

SPACER

countershaft front bearing

1шт.

3

630203C91

TAPERED BEARING

ASSY, cone front, 5288 and 5488 tractors

1шт.

3

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, cone front, 5088 tractors

1шт.

4

630204C1

BEARING CUP

cup front, 5288 and 5488 tractors

1шт.

4

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, cup front, 5088 tractors

1шт.

5

120822C1

CAGE

countershaft brg, 5288 and 5488 tractors

1шт.

5

137731C1

CAGE

countershaft brg, 5088 tractors

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

6

1264554C91

SHIM KIT

PACKAGE, countershaft brg cage shim, Consists of

1шт.

SHIM, 0.080 mm/.003 in. (NSS)

2шт.

SHIM, 0.100 mm/.004 in. (NSS)

2шт.

SHIM, 0.130 mm/.005 in. (NSS)

2шт.

SHIM, 0.300 mm/.012 in. (NSS)

2шт.

SHIM, 0.760 mm/.030 in. (NSS)

2шт.

7

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

RING, hi-range driven gear retaining

1шт.

8

120874C1

GEAR

hi-range driven, 23T

1шт.

9

120864C1

SPACER

hi and mid range driven gears

1шт.

10

120585C1

GEAR

mid range driven, 37T

1шт.

11

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

RING, mid range driven gear retaining

1шт.

12

144349C1

THRUST WASHER

lo range gear thrust

1шт.

13

120581C2

GEAR

lo-range driven, 55T

1шт.

14

110409C1

THRUST WASHER,57.4mm ID x 72mm OD x 2.5mm Thk

lo-range gear thrust

1шт.

15

139145C1

RING

lo range gear retaining

1шт.

16

120875C1

GEAR

constant mesh drive, 26T, 5088 w/serial no. 8525 and below, 5288 w/serial no. 6241 and below, 5488 w/serial no. 4267 and below

1шт.

16

1277035C1

GEAR

constant mesh drive, 26T, 5088 w/serial no. 8526 and above, 5288 w/serial no. 6242 and above, 5488 w/serial no. 4268 and above

1шт.

17

144347C91

ROLLER BEARING,50.81mm ID x 30.36mm W

BEARING ASSY, range countershaft rear cone, 5088 w/serial no. 8036 and below, 5288 w/serial no. 5847 and below, 5488 w/serial no. 3901 and below

1шт.

17

84986C91

BEARING

ASSY, range countershaft rear cone, 5088 w/serial no. 8037 and above, 5288 w/serial no. 5848 and above, 5488 w/serial no. 3902 and above

1шт.

18

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

BEARING, range countershaft rear cup, 5088 w/serial no. 8036 and below, 5288 w/serial no. 5847 and below, 5488 w/serial no. 3901 and below

1шт.

18

84987C1

BEARING ASSY

BEARING, range countershaft rear cup, 5088 w/serial no. 8037 and above, 5288 w/serial no. 5848 and above, 5488 w/serial no. 3902 and above

1шт.

19

144350C2

CARRIER

blocker ring

1шт.

20

144351C1

RING

lo-range sync blocker

1шт.

21

144352C1

SPRING

blocker ring detent

4шт.

22

17005R1

BALL,5/32" Dia

5/32 grade 25 metal

4шт.

23

144333C1

DISC

ASSY, synchronizer friction

5шт.

24

144353C1

PLATE

separator

4шт.

25

144354C2

DRUM

synchronizer

1шт.

26

144355C2

THRUST WASHER

thrust

1шт.

27

144356C1

RING

thrust washer ret snap (Int), 5088 w/serial no. 6555 and below, 5288 w/serial no. 4411 and below, 5488 w/serial no. 2464 and below

1шт.

27

1270622C1

RING

thrust washer retainer int, 5088 w/serial no. 6556 and above, 5288 w/serial no. 4412 and above, 5488 w/serial no. 2465 and above

1шт.

28

144357C91

THRUST BEARING

BEARING, shift thrust or

1шт.

28

1259533C91

THRUST BEARING

BEARING, shift thrust

1шт.

29

144358C1

WASHER

thrust bearing, race

2шт.

30

144359C1

COLLAR

lo range shift

1шт.

31

144360C1

THRUST WASHER

shift collar thrust

1шт.

32

144361C1

RING

thrust washer retaining (Ext)

1шт.

33

120586C2

GEAR

constant mesh driven, 53T, 5088 w/serial no. 8525 and below, 5288 w/serial no. 6241 and below, 5488 w/serial no. 4267 and below

1шт.

33

1277036C1

GEAR

constant mesh driven, 53T, 5088 w/serial no. 8526 and above, 5288 w/serial no. 6242 and above, 5488 w/serial no. 4268 and above

1шт.

34

143906C1

SNAP RING

RING, constant mesh driven gear snap

1шт.

35

379278C1

PLUG

1-5/8 in. cup, Tractors without IPTO

1шт.
