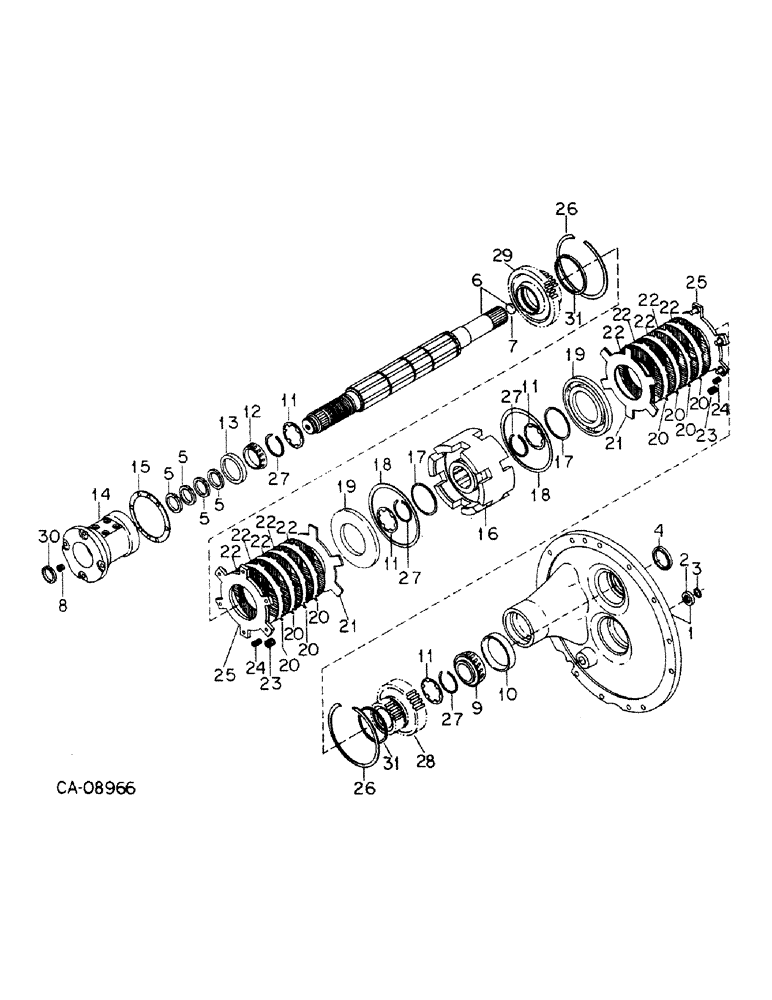

Запчасти Case IH 5088 (07-08) - DRIVE TRAIN, SPEED TRANSMISSION DRIVE SHAFT (04) - Drive Train

1

148961C93

SUPPORT

ASSY, front bearing, 5288 and 5488 tractors

1шт.

1

148962C93

SUPPORT ASSY.

SUPPORT ASSY, front bearing, 5088 tractors

1шт.

30487R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

M12 x 40 pln class 8.8

10шт.

9410356

PLUG

1/4 C-Z str thd o-ring boss

1шт.

2

148958C2

SEAL,25.95mm ID x 32.05mm OD x 7.5mm Thk

SLEEVE, shift rail seal

1шт.

3

377028R1

O-RING,0.989" ID x 0.07" Width

1 x 1-1/8 class 5

1шт.

4

184867C1

SEAL

speed input shaft

1шт.

5

124724C2

RING

speed drive SFT lub seal 50 mm or

4шт.

5

148946C2

RING

speed drive SFT lub seal 50 mm

4шт.

6

144248C92

SHAFT

ASSY, speed drive

1шт.

7

30591R1

PLUG,M25, Tapered

25 mm tapered cup

1шт.

8

30384R1

SET SCREW,Hex Soc, M12 x 16, Cup Pt

SCREW, M12 x 16 c/pt pln hdl/hs set

2шт.

9

PO12993

BEARING CONE

BEARING ASSY, input shaft front cone, 5288 and 5488 tractors

1шт.

9

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING ASSY, input shaft front cone, 5088 tractors

1шт.

10

22365V

BEARING CUP,3.6718" OD x 0.93"

BEARING, input shaft front cup, 5288 and 5488 tractors

1шт.

10

376463C1

BEARING CUP

BEARING, input shaft front cup, 5088 tractors

1шт.

11

144217C1

THRUST WASHER,6T

gear thrust

4шт.

12

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING ASSY, input shaft rear cone

1шт.

13

376463C1

BEARING CUP

BEARING, input shaft rear cup

1шт.

14

120664C3

CAGE

speed drive shaft brg

1шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

4шт.

15

1264551C92

STRIPPER PACKAGE

PACKAGE, drive shaft brg cage shim, Consists of

1шт.

SHIM, .080 mm/.003 in. (NSS)

2шт.

SHIM, .100 mm/.004 in. (NSS)

2шт.

SHIM, .130 mm/.005 in. (NSS)

2шт.

SHIM, .300 mm/.012 in. (NSS)

2шт.

SHIM, .760 mm/.030 in. (NSS)

2шт.

16

144218C2

CARRIER

speed trans shift clutch

1шт.

17

120707C1

RING

shift clutch piston ID seal

2шт.

18

120711C1

RING

shift clutch piston OD seal

2шт.

19

120708C1

PISTON

shift clutch

2шт.

20

PLATE ASSY, shift clutch, Furnish shift clutch package, 1264552C93

1шт.

21

PLATE, piston return, Furnish shift clutch package, 1264552C93

2шт.

22

PLATE, shift clutch separator, Furnish shift clutch package, 1264552C93

1шт.

23

137748C1

SPRING

speed clutch outer return

12шт.

24

137747C1

SPRING

speed clutch inner return

12шт.

25

139018C3

PLATE

ASSY, shift clutch backing

2шт.

26

139043C1

RING

internal snap

2шт.

27

139145C1

RING

external snap

4шт.

28

120571C1

GEAR WHEEL

GEAR, constant mesh lo-drive 39T, Order package, 1286485C91, 5088 w/serial no. 8684 and below, 5288 w/serial no. 6407 and below, 5488 w/serial no. 4459 and below

1шт.

28

1286483C1

GEAR

constant mesh lo-drive 39T, 5088 w/serial no. 8685 and above, 5288 w/serial no. 6408 and above, 5488 w/serial no. 4460 and above

1шт.

29

120570C2

GEAR

constant mesh Hi-drive 55T, Order package, 1286486C91, 5088 w/serial no. 8684 and below, 5288 w/serial no. 6407 and below, 5488 w/serial no. 4459 and below

1шт.

29

1286484C1

GEAR

constant mesh hi-drive 44T, 5088 w/serial no. 8685 and above, 5288 w/serial no. 6408 and above, 5488 w/serial no. 4460 and above

1шт.

30

116797C2

RING

pump drive shaft seal 43 mm or

1шт.

30

148944C2

RING

pump drive shaft seal 43 mm

1шт.

31

1286399C1

SEALING RING

RING, shift clutch seal, 5088 w/serial no. 8685 and above, 5288 w/serial no. 6408 and above, 5488 w/serial no. 4460 and above

2шт.

1264552C93

SHIM KIT

PACKAGE, shift clutch, Consists of

1шт.

PLATE ASSY, shift clutch (NSS)

10шт.

PLATE, piston return (NSS)

2шт.

PLATE, shift clutch separator (NSS)

10шт.

1286485C91

KIT

PACKAGE, low drive gear, 5088 w/serial no. 8684 and below, 5288 w/serial no. 6407 and below, 5488 w/serial no. 4459 and below, Consists of

1шт.

1286483C1

GEAR

constant mesh lo-drive 39T

1шт.

1264552C93

SHIM KIT

PACKAGE, shift clutch

1шт.

1286399C1

SEALING RING

RING, shift clutch seal

1шт.

139018C3

PLATE

ASSY, shift clutch backing

1шт.

1286486C91

KIT

PACKAGE, countershaft, 5-6 and hi-gear, 5088 w/serial no. 8684 and below, 5288 w/serial no. 6407 and below, 5488 w/serial no. 4459 and below, Consists of

1шт.

1286485C91

KIT

PACKAGE, low drive gear

1шт.

1264897C1

GEAR

5th and 6th speed driven 44T

1шт.

1277491C1

SHAFT

COUNTERSHAFT, speed

1шт.

1277492C1

GEAR

constant mesh lo-driven 45T

1шт.

1277493C1

GEAR

constant mesh hi-driven 43T

1шт.

1277494C1

SPACER

3rd-4th drive gear

1шт.

1277495C1

GEAR

3rd and 4th drive gear 36T

1шт.

1277496C1

SPACER

3rd and 4th drive gear

1шт.

1277497C1

GEAR

1st and 2nd drive 31T

1шт.

233042R1

SNAP RING,#275, Ext

RING, 2.543 ext ret

1шт.

1286367C1

WASHER

countershaft gear, front

1шт.

1286368C1

WASHER

countershaft gear, rear

1шт.

1286376C1

KEY

drive shaft, short

3шт.

1277498C1

KEY

drive shaft, long

1шт.

28629R1

SNAP RING,#243, Ext

Ring, Snap, , lo-driven gear #243, Ext

1шт.

1286484C1

GEAR

constant mesh hi-drive 44T

1шт.

1286399C1

SEALING RING

RING, shift clutch seal

1шт.

139018C3

PLATE

ASSY, shift clutch backing

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.
