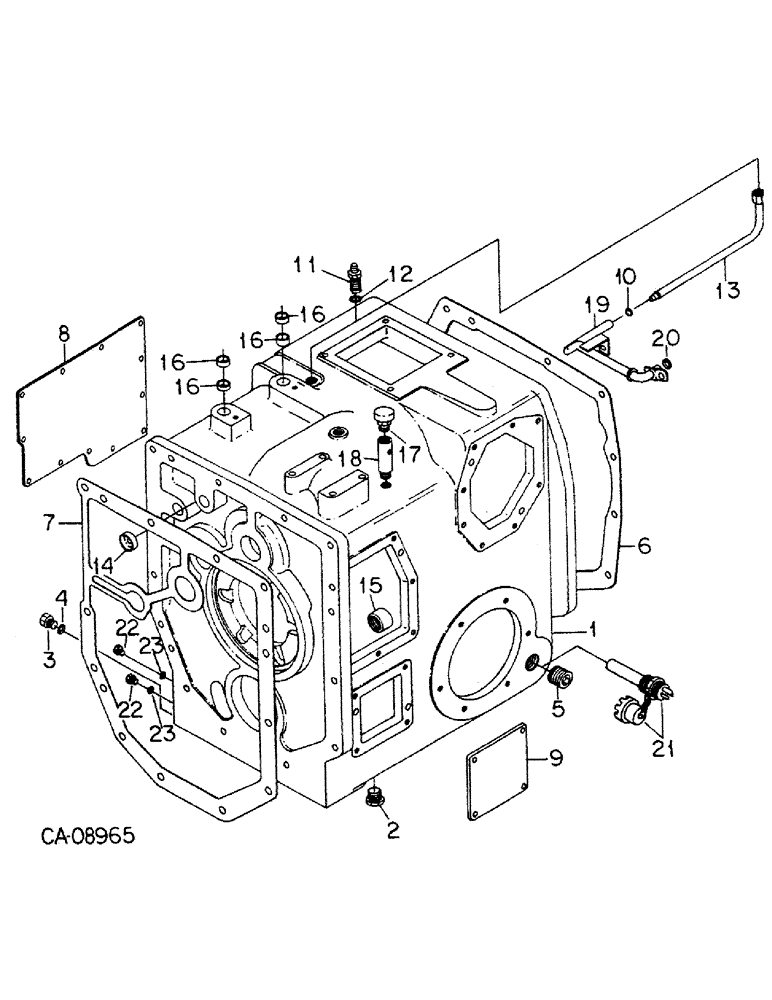

Запчасти Case IH 5088 (07-06) - DRIVE TRAIN, RANGE TRANSMISSION HOUSING (04) - Drive Train

1

1285948C91

STRIPPER PACKAGE

PACKAGE, range housing service, Replaces 120639C93, 5088 w/serial no. 8036 and below, 5288 w/serial no. 5847 and below, 5488 w/serial no. 3901 and below, Consists of

1шт.

1277194C91

HOUSING

ASSY, range transmission

1шт.

1277190C1

SHAFT

COUNTERSHAFT, range

1шт.

379278C1

PLUG

1-5/8 in. cup

1шт.

1277191C1

NEEDLE BEARING

ASSY, needle roller

1шт.

1277193C1

SEAL

range countershaft oil

1шт.

84986C91

BEARING

ASSY, range countershaft rear cone

1шт.

84987C1

BEARING ASSY

BEARING, range countershaft rear cup

1шт.

1277192C1

SHAFT

intermediate drive

1шт.

30091R1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

M20 x 60 phc class 10.9

1шт.

30179R1

WASHER,M20 x 37.5 x 4, HT

21.8 x 37 x 4 mm phc

1шт.

INSTRUCTIONS, assembly and rework (NSS)

1шт.

1

1277194C91

HOUSING

ASSY, range transmission, 5088 w/serial no. 8037 and above, 5288 w/serial no. 5848 and above, 5488 w/serial no. 3902 and above, Composed of

1шт.

HOUSING, range transmission (NSS)

1шт.

30351R1

DOWEL,M16 x 35

PIN, 16 x 35 mm pln hdn dowel

4шт.

30358R1

SPLIT PIN/SAFETY PIN

PIN, 12 x 25 mm pln hdn dowel

2шт.

9409961

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 C-Z sq/skt auto drain

1шт.

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 11-1/2 pln sq/skt auto pipe

1шт.

148681C1

PLUG

lube tube support

1шт.

30319R1

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Hex, M16 x 55, 8.8

21шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4 mm

21шт.

30091R1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

M20 x 60 phc class 10.9

1шт.

30179R1

WASHER,M20 x 37.5 x 4, HT

21.8 x 37 x 4 mm phc

1шт.

2

9409961

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 C-Z sq/skt auto drain, Drain

1шт.

3

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

5

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 11-1/2 pln sq/skt auto pipe

1шт.

6

120990C2

GASKET

range trans. to speed trans.

1шт.

7

120939C1

GASKET

range trans. to axle housing

1шт.

8

120933C1

COVER

shift fork access

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

12шт.

9

144298C1

COVER

emergency brake opening tractors w/o dynamic brake

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

4шт.

10

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 class 6

1шт.

11

224613C1

UNION

1шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

13

1277438C1

TUBE

ASSY, range spray lube, Replaces 120914C1

1шт.

14

148681C1

PLUG

lube tube support

1шт.

15

301533R91

BEARING

bevel pinion shaft frt

1шт.

16

139408C2

BUSHING

range vert shift shaft

4шт.

17

65970C2

BREATHER ASSY.

BREATHER, transmission

1шт.

18

1287852C1

ADAPTER

breather extension, Replaces 1264671C1 by also ordering plug, 444613 for 5088 w/serial no. 7893 and below, 5288 w/serial no. 5718 and below, 5488 w/serial no. 3772 and below

1шт.

FOR444613

PLUG

1/8-27 znp h/hd auto pipe, Tractors without hydraulic seat

1шт.

19

1277441C1

TUBE

ASSY, bevel pinion lube, Replaces 137709C2 by also ordering tube assy, 1277438C1 for 5088 w/serial no. 8021 and below, 5288 w/serial no. 5834 and below, 5488 w/serial no. 3889 and below

1шт.

933965R1

LOCK WASHER,M10

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

1шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

1шт.

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

1шт.

20

21254R1

O-RING,0.487" ID x 0.693" OD x 0.103"

RING, 1/2 x 11/16 class 5 seal

1шт.

21

536850R91

HEATER ASSY.

PARTS ACCESSORY, transmission oil heater

1шт.

22

931218R1

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

two wheel drive tractors, used to plug emergency brake anchor pin holes Hex, M16 x 30, 8.8, Full Thd

2шт.

23

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 class 5

2шт.
