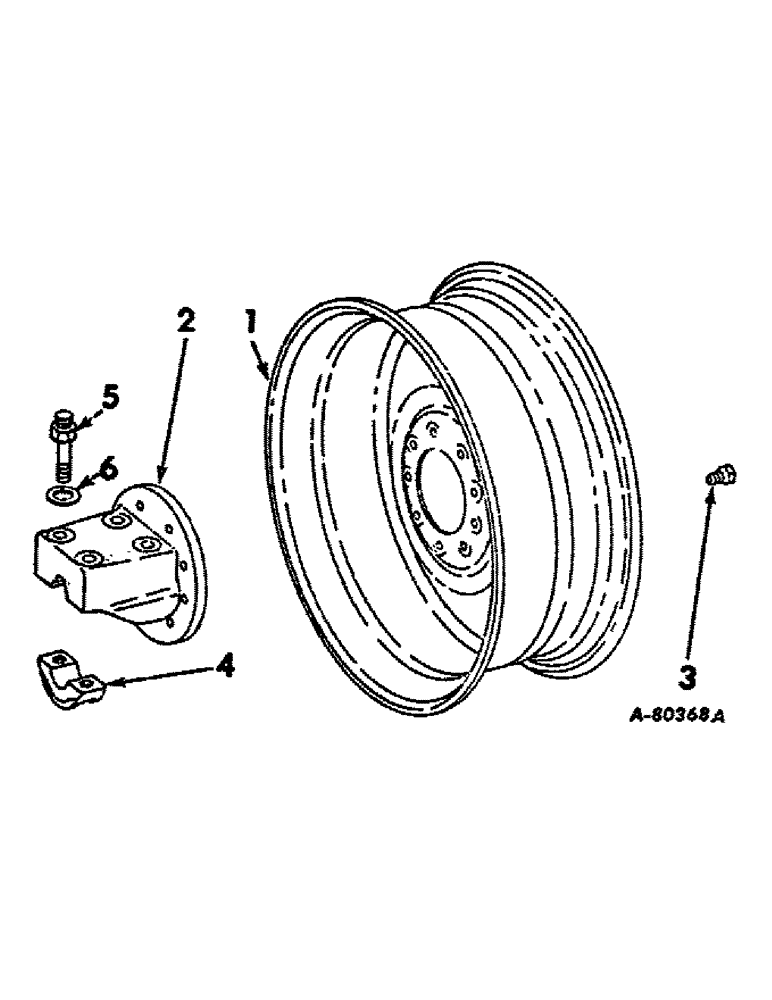

Запчасти Case IH 5088 (15-05) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS, 5088 TRACTORS Wheels & Traction

1

400880R1

WHEEL

W16L-38 integral w/disc rear, For 16.9-38 or 18.4-38 tires, 5.9 in offset

2шт.

1

400879R2

WHEEL

W16L-38 integral w/disc rear, For 16.9-38 or 18.4-38 tires, 10.7 in. offset

2шт.

1

530802R1

WHEEL

W18L-38 integral w/disc rear, For 20.8-38 tire, 8.9 in. offset

2шт.

2

530085R1

HUB CAP

HUB, outer dual rear wheel

2шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.

4

73237C1

CLAMP

rear hub

4шт.

5

539827R2

STUD

ASSY, rear wheel hub clamp

8шт.

6

384697R1

WASHER

rear wheel hub clamp stud

8шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 in. box

1шт.
