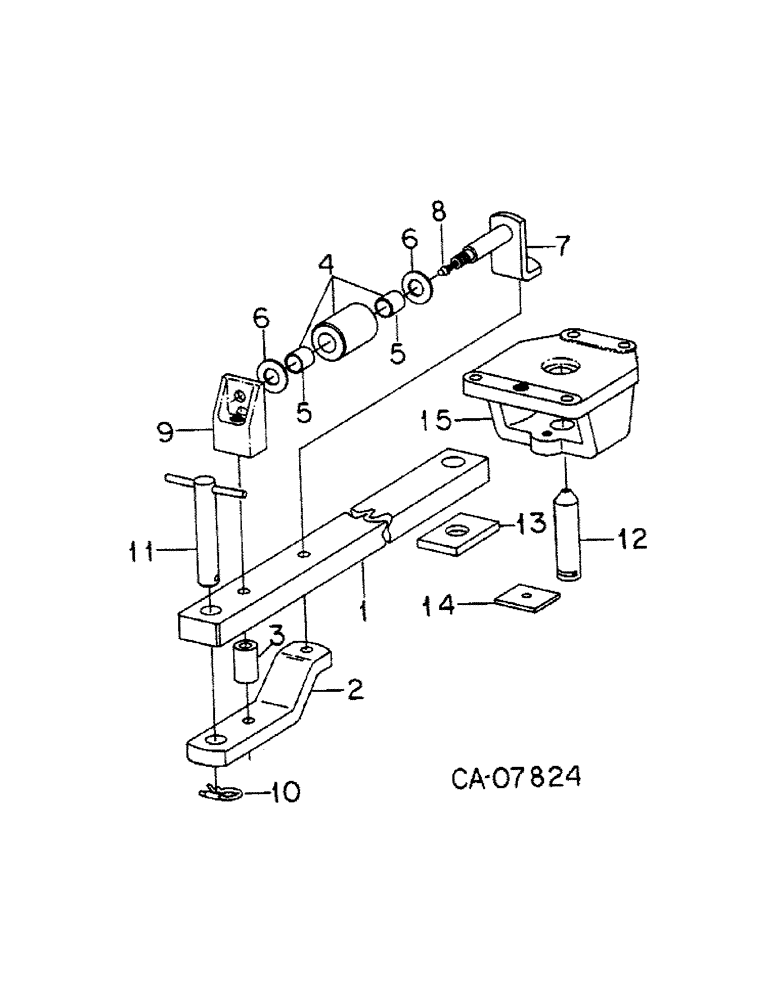

Запчасти Case IH 5088 (09-11) - FRAME, HEAVY DUTY SWINGING DRAWBAR, WITHOUT HYDRAULIC DRAFT CONTROL, 5088 TRACTOR (12) - FRAME

1

145257C1

BAR

DRAWBAR, swinging

1шт.

2

400297R1

SUPPORT

BRACKET, swinging drawbar guide

1шт.

3

368514R1

SPACER

swinging drawbar guide

1шт.

4

400299R11

ROLLER

ASSY, swinging drawbar

1шт.

5

391869R1

BUSHING

2шт.

6

391870R1

WASHER

swinging drawbar roller

2шт.

7

391873R11

SHAFT

ASSY, swinging drawbar roller

1шт.

425-1012

NUT,3/4"-10, G5

3/4 pln type 5

1шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

3/4 x 3-3/4 pln type 5

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

220081

NUT

3/4 pln type 5

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar shaft rear

1шт.

17269R1

SCREW,Hex, 3/4" - 10 x 6 1/4", Gr 5

BOLT, 3/4 x 6-1/4 pln type 5

1шт.

10

520175R11

AXLE PIN

PIN ASSY, quick attachable cotter

1шт.

11

530149R1

PIN

ASSY, drawbar clevis or

1шт.

11

400300R1

CLEVIS PIN

PIN ASSY, drawbar clevis

1шт.

12

224618C1

PIN,34.87mm OD x 150mm L

drawbar pivot

1шт.

13

224619C2

SPACER

drawbar pivot

1шт.

14

67828C1

RETAINER

pin

1шт.

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 phc class 10.9

1шт.

933834R1

LOCK WASHER,M12

WASHER, 12 mm pln lock

1шт.

15

SUPPORT ASSY, swinging drawbar pivot, Refer to rear frame and covers, Group 7

1шт.

149839C93

HITCH ASSY

PARTS ACCESSORY, hammer strap

1шт.
