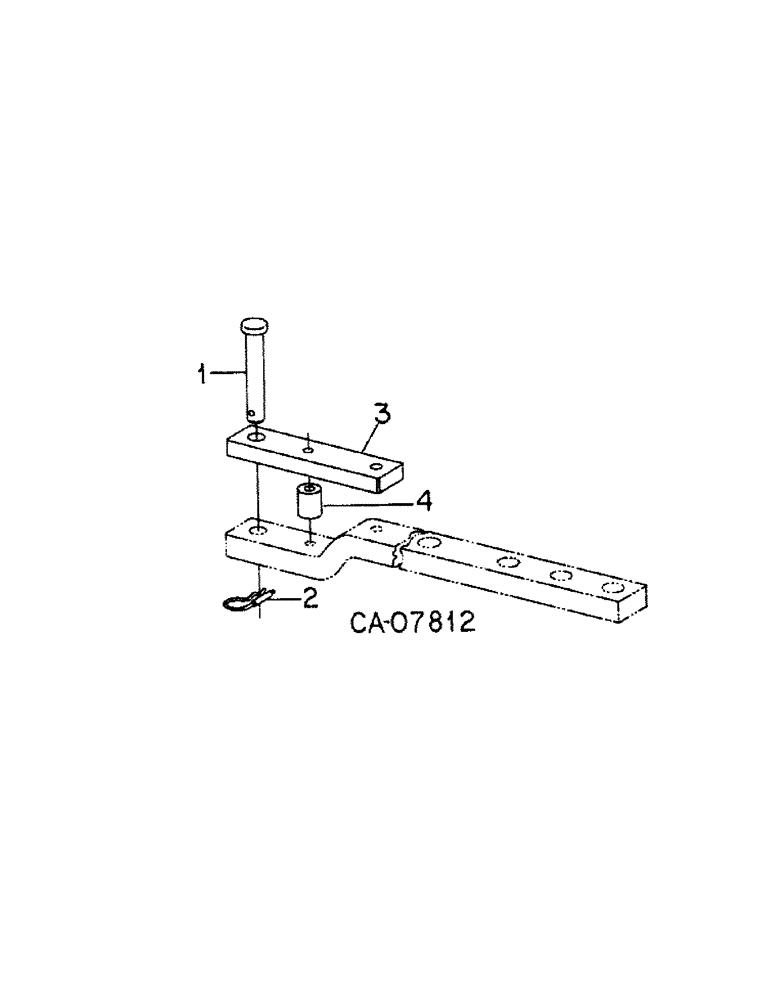

Запчасти Case IH 5088 (09-11[A]) - FRAME, HAMMER STRAP, 5088 TRACTOR (12) - FRAME

1

1272882C1

PIN

1-1/4 x 5.5 headed alloy, Replaces 28443R1

1шт.

2

955264R1

PIN

quick attachable cotter

1шт.

3

149842C2

BAR

draw, strap

1шт.

25358R1

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

3/4 x 3-3/4 phc type 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

1шт.

25680R1

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6 phc type 8

1шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 phc hdn

2шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

2шт.

4

483858R1

SPACER

drawbar strap

1шт.
