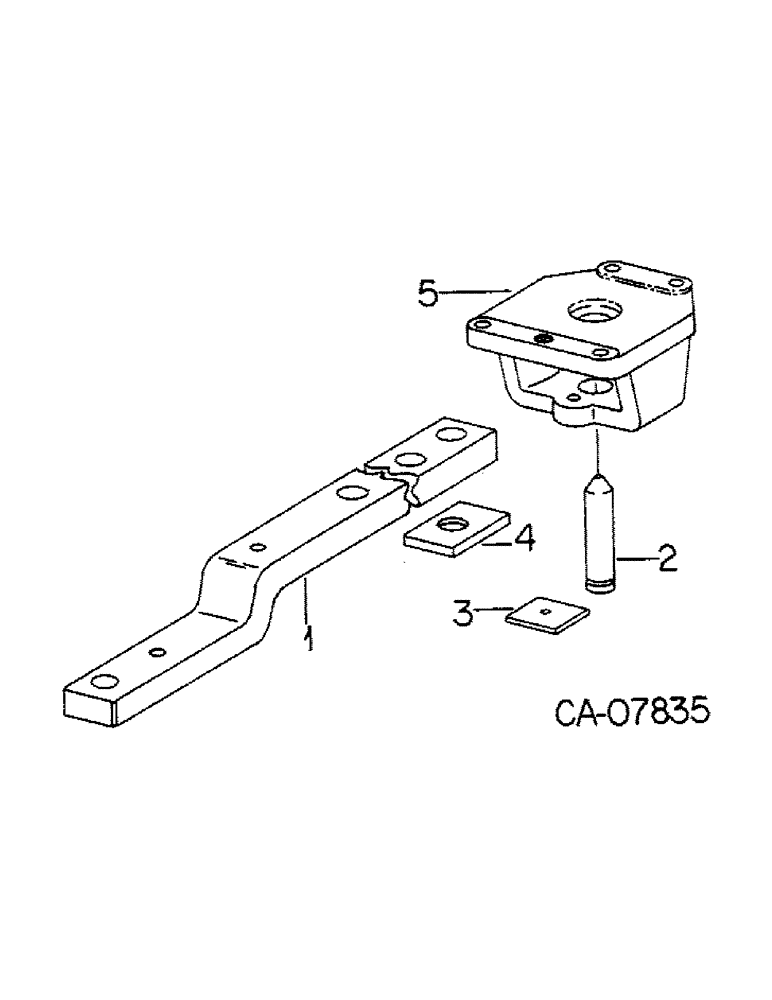

Запчасти Case IH 5088 (09-09) - FRAME, SWINGING DRAWBAR, 5088 TRACTOR, PART OF THREE POINT HITCH (12) - FRAME

1

142617C4

DRAWBAR

swinging, 1383 mm

1шт.

30077R1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

M16 x 120 phc class 10.9

2шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

2шт.

2

224618C1

PIN,34.87mm OD x 150mm L

drawbar pivot

1шт.

3

67828C1

RETAINER

drawbar pivot pin

1шт.

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 phc class 10.9

1шт.

933834R1

LOCK WASHER,M12

WASHER, 12 mm pln lock

1шт.

4

224619C2

SPACER

drawbar pivot

1шт.

5

SUPPORT ASSY, swinging drawbar pivot, Refer to rear frame and covers, group 7

1шт.
