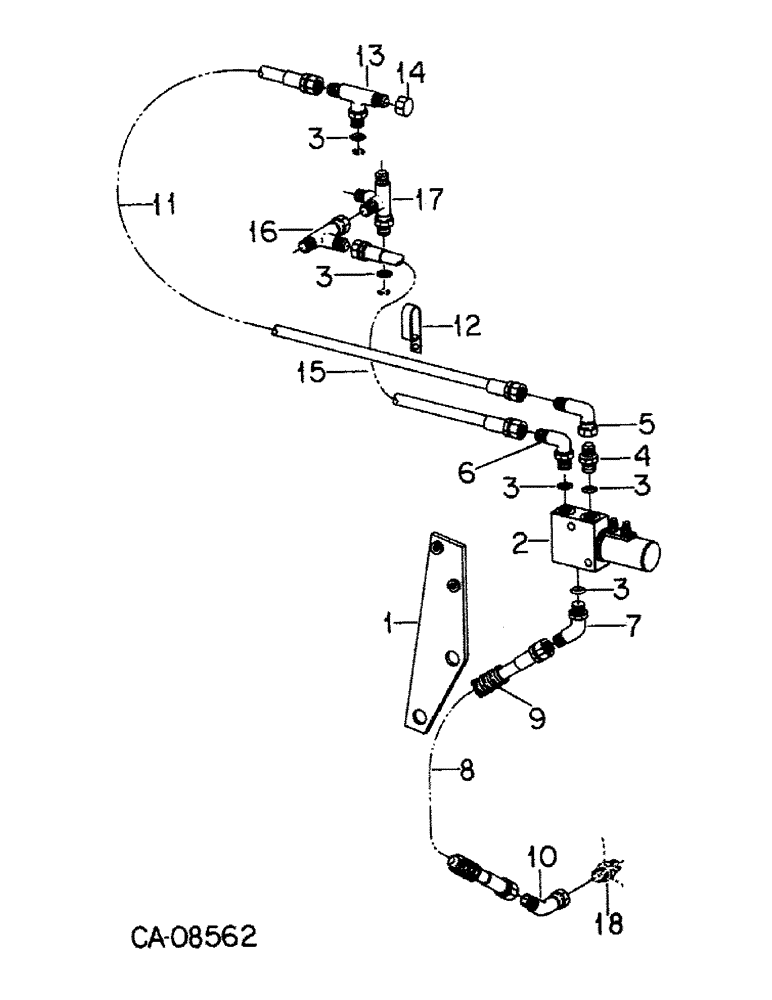

Запчасти Case IH 5088 (10-61) - HYDRAULICS, ALL WHEEL DRIVE SOLENOID CONNECTIONS, ALL WHEEL DRIVE TRACTORS (07) - HYDRAULICS

1

1280811C1

BRACKET

ASSY, solenoid mounting

1шт.

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

2

137767C94

VALVE

SOLENOID AND BLOCK ASSY, valve, or

1шт.

For components, see lists of parts under details of AWD solenoid and block assy, this group

1шт.

2

1272538C91

VALVE

SOLENOID AND BLOCK ASSY, valve

1шт.

For components, see lists of parts under details of AWD solenoid and block assy, this group

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

5шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel, Replaces 1282259C1

1шт.

5

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90 deg swivel

1шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg

1шт.

7

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 45 deg

1шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Assy - Valve solenoid and block to clutch 9.52 mm ID x 535.00 mm

1шт.

9

TUBING, corrugated, Furnish 495 mm/19.5 in. from bulk roll marked 1266756C1

1шт.

10

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg swivel

1шт.

11

1251945C1

HOSE

ASSY, supply

1шт.

12

1250585C1

CLAMP

CLIP, supply and dump hoses

1шт.

13

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

3/8 C-Z hyd fld tube adj

1шт.

14

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube, Tractors w/o hydraulic seat att.

1шт.

15

1251944C1

HYDRAULIC HOSE

HOSE ASSY, Serial Range: valve-dump

1шт.

16

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel, Tractors w/hydraulic seat att.

1шт.

17

224616C1

CROSS

FITTING, 37 deg adj cross

1шт.

18

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, Refer to AWD input shaft and drive gear listing, Group 7

1шт.
