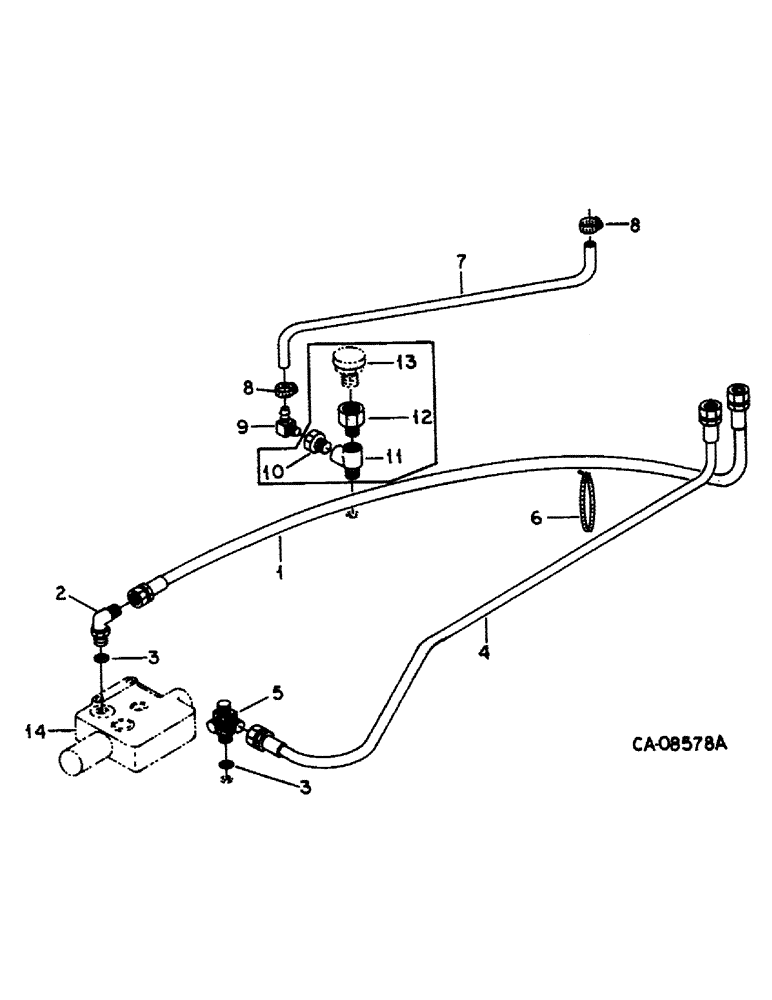

Запчасти Case IH 5088 (10-59) - HYDRAULICS, HYDRAULIC SEAT CONNECTIONS, HYDRAULIC SEAT WITH AIR-OIL SUSPENSION (07) - HYDRAULICS

1

1280005C1

HOSE

hydraulic pressure

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

4

1280005C1

HOSE

hydraulic, dump

1шт.

5

224616C1

CROSS

9/16-18 o-ring boss 37 deg flared tube

1шт.

6

111619C1

STRAP

adjustable tie

1шт.

7

1280006C1

HYDRAULIC HOSE,6.35 mm ID x 550.00 mm

- Seat cylinder drain 6.35 mm ID x 550.00 mm

1шт.

8

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

2шт.

9

401967R1

ELBOW

hose barb, 90 deg

1шт.

10

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 to 1/8 pln out/h/hd pipe

1шт.

5088 w/serial no. 7893 and below, 5288 w/serial no. 5718 and below, 5488 w/serial no. 3772 and below.

1шт.

11

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8-18 pln int/ext/int auto pipe

1шт.

5088 w/serial no. 7893 and below, 5288 w/serial no. 5718 and below, 5488 w/serial no. 3772 and below.

1шт.

12

444002

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

3/8-18 pln auto pipe

1шт.

5088 w/serial no. 7893 and below, 5288 w/serial no. 5718 and below, 5488 w/serial no. 3772 and below.

1шт.

13

BREATHER, transmission, Refer to range transmission hsg listing, Group 7

1шт.

14

VALVE ASSY, flow divider, Refer to flow divider valve listing, this group

1шт.
