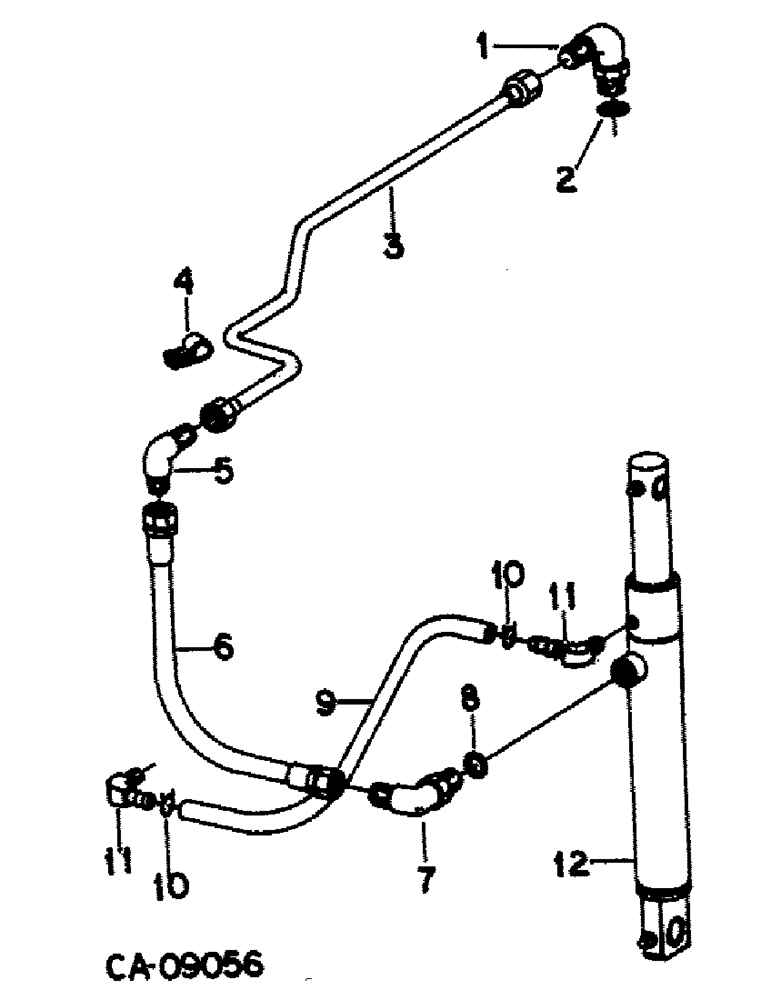

Запчасти Case IH 5088 (10-56) - HYDRAULICS, HYDRAULIC HITCH LIFT ASSIST CYLINDER (07) - HYDRAULICS

1

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90 deg

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 ID x .087 thick

1шт.

3

145517C5

HYD TUBE,0.375" OD, 532.422 mm Length

TUBE ASSY

1шт.

4

299404C1

CLAMP

.375 dia znp coated med closed

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

20285H

WASHER

.406 x .750 x .105 pln

1шт.

5

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube 90 deg elbow, 5088 w/serial no. 8505 and above, 5288 w/serial no. 6219 and above, 5488 w/serial no. 4243 and above

1шт.

6

145515C1

HOSE

ASSY, RH booster cylinder, 3/8 ID, 9/16-18 female, 9/16-18 male x 25 in. long, 5088 w/serial no. 8504 and below, 5288 w/serial no. 6218 and below, 5488 w/serial no. 4242 and below

1шт.

6

1269383C1

HOSE

ASSY, RH booster cylinder, 3/8 ID, 9/16-18 female both ends x 18.11 in. long, 5088 w/serial no. 8505 and above, 5288 w/serial no. 6219 and above, 5488 w/serial no. 4243 and above

1шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str 90 deg

1шт.

8

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

HOSE, hydraulic, Use 310 mm/12.20 in. from bulk roll marked 427683C1

1шт.

10

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP, size 8 spring wire

2шт.

11

401967R1

ELBOW

90 deg barb

2шт.

12

149699C94

CYLINDER

ASSY, 1.5 x 10.76 hyd ram, See cyl-1 for components

1шт.

79616C1

PACKAGE

KIT, cylinder o-ring and seal service

1шт.
