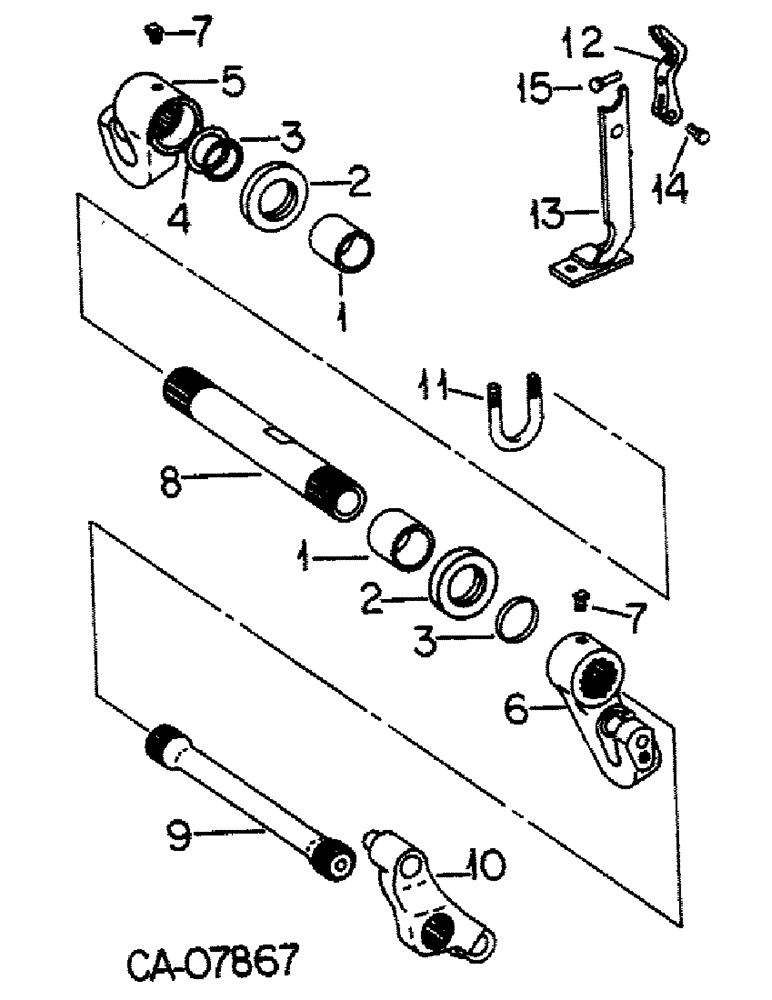

Запчасти Case IH 5088 (10-55) - HYDRAULICS, DRAFT SENSING (07) - HYDRAULICS

1

394889R91

BUSHING

ASSY, torsion bar

2шт.

2

392083R1

RETAINER

crank arm o-ring

2шт.

3

142815C1

SEALING RING,2.85" ID x 0.21" Width

2-7/8 x 3/16 quad seal

2шт.

4

142599C1

SHIM

0.054 inch thick

1шт.

4

1266961C1

SHIM

0.027 inch thick

1шт.

5

71388C1

ARM

LH crank

1шт.

6

71389C2

ARM

RH crank

1шт.

7

71390C1

BOLT,5/8" - 18 x 1 21/32", Grade 8

crank locating

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

142644C1

SHAFT

ASSY, crank arm

1шт.

9

71385C2

BAR

torsion spring

1шт.

10

142810C1

BRACKET

ASSY, torsion bar anchor

1шт.

145470C2 is like the bracket shown but has one more pin coming out of the bracket for a total of 3. The 145470C2 bracket is used on units w/lift assist cylinder.

1шт.

30861R1

BOLT,Hex, M16 x 2 x 135mm, Cl 8.8

M16 x 135 pln class 8.8

2шт.

934185R1

LOCK WASHER,M16

WASHER, 16 mm lock

2шт.

11

392095R1

BOLT,3/8" - 16 x 3.28" W x 3.60" L

U-BOLT, sensing arm

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

12

142640C3

ARM

upper sensing

1шт.

13

142641C1

ARM

ASSY, lower sensing

1шт.

14

30569R1

CLEVIS PIN,M8 x 25

PIN, 8 x 25 mm phc clevis

1шт.

934788R1

COTTER PIN,M2 x 16

PIN, 2 x 16 mm pln cot.

1шт.

15

1286706C1

BOLT,12 Pt, Hex, M8 x 1.25 x 40.50mm, Cl 12.9, Full Thd

prevailing torque hex, 12pt, Replaces 142813C1

1шт.
