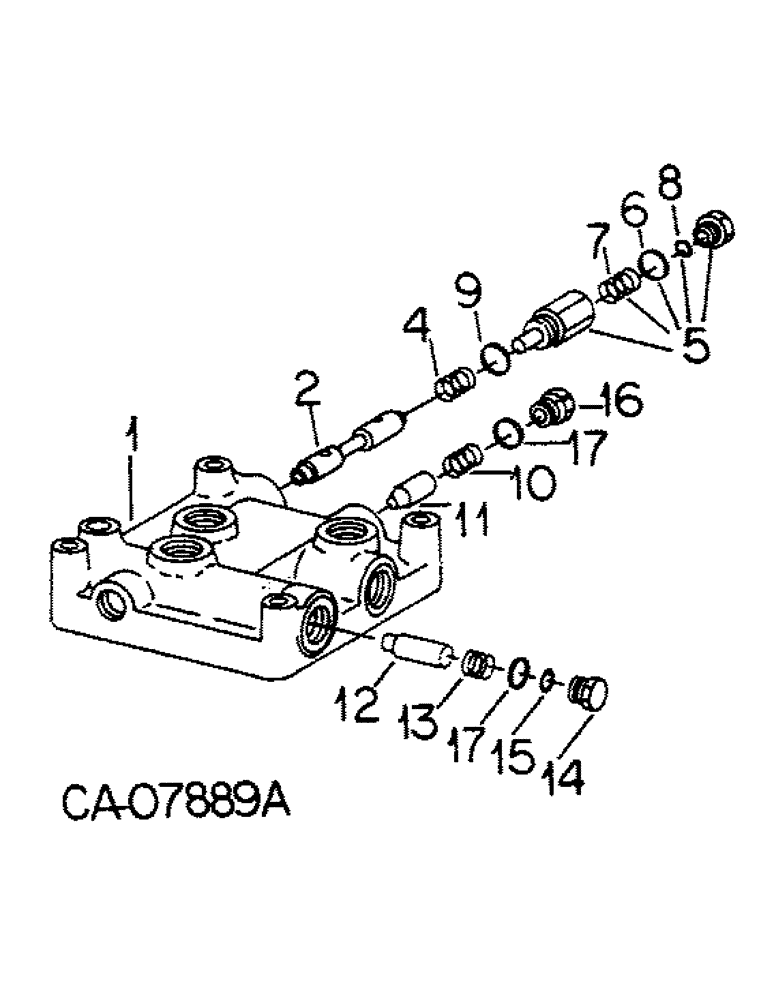

Запчасти Case IH 5088 (10-16) - HYDRAULICS, TRANSMISSION LUBRICATION VALVE (07) - HYDRAULICS

145394C96

VALVE

ASSY, transmission lubrication

1шт.

1

BODY ASSY, transmission lub valve, Order valve assy (NSS)

1шт.

2

1272961C2

SPOOL

ASSY, flow regulator, Replaces spool, 145397C2 and plug, 145398C1

1шт.

3

NOT USED

1шт.

4

145482C1

SPRING

flow regulator light

1шт.

5

1263471C91

PLUG

ASSY, flow regulator, Includes: Ref. 6, 7 and 8

1шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

7

1255255C1

SPRING

flow regulator heavy

1шт.

8

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

1шт.

9

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

10

123005C1

VALVE

poppet

1шт.

11

142775C1

SPRING

lub relief

1шт.

12

1252095C1

VALVE

by-pass and relief

1шт.

13

1255255C1

SPRING

flow regulator heavy

1шт.

14

1255099C1

PLUG

by-pass valve

1шт.

15

30175R1

WASHER,M8 x 17.5 x 2, HT

phc M8 x 17.5 x 2, HT

1шт.

16

108833C1

PLUG

poppet valve retaining

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.
