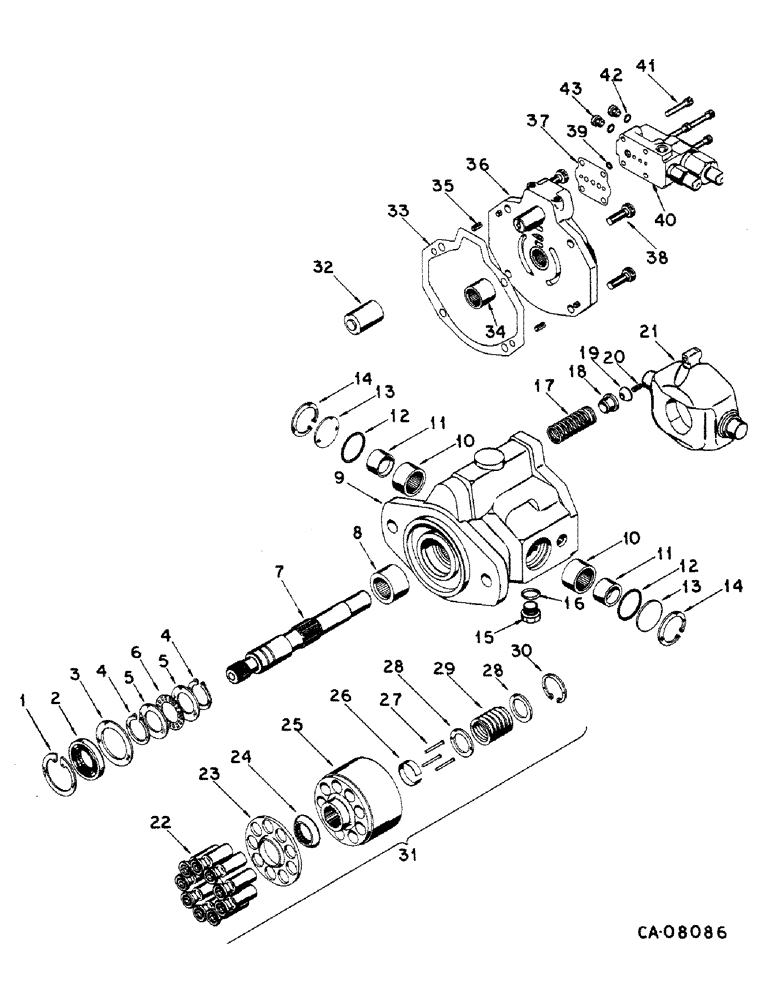

Запчасти Case IH 5088 (10-06) - HYDRAULICS, PPH PISTON PUMP, CESSNA (07) - HYDRAULICS

140707C93

HYDRAULIC PUMP

PUMP ASSY, hyd piston

1шт.

1

513010R1

SNAP RING,2", Int, #200

RING, 2.210 int ret

1шт.

2

631883C1

SEAL

shaft

1шт.

3

138308C1

WASHER

1шт.

4

454417R1

SNAP RING,#100, Ext

RING, .925 ext ret

2шт.

5

631879C1

RACE

thrust bearing

2шт.

6

619150C91

BEARING

thrust

1шт.

7

1266915C1

SHAFT

drive

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING ASSY

1шт.

Order pump assy 140707C93

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING

2шт.

Order pump assy 140707C93

1шт.

11

738482C1

RACE

inner

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Order seal repair kit 1266920C1

1шт.

13

631860C1

COVER

trunnion

2шт.

14

299470R1

SNAP RING,1.625", Int, #162

RING, 1.804 int ret

2шт.

15

9410360

PLUG

5/8 C-Z str thd o-ring boss

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

17

634861C1

SPRING

1шт.

18

631864C1

COLLAR

spring

1шт.

19

631869C1

BUTTON

pivot

1шт.

20

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

21

1266919C1

PLATE

cam

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON ASSY

1шт.

Order rotating assy 1266921C2

1шт.

23

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

24

NSS

NOT SOLD SEPARAT

SPIDER PIVOT

1шт.

Order rotating assy 1266921C2

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON BLOCK

1шт.

26

NSS

NOT SOLD SEPARAT

PIN KEEPER

1шт.

27

NSS

NOT SOLD SEPARAT

PIN

3шт.

28

NSS

NOT SOLD SEPARAT

WASHER

2шт.

29

NSS

NOT SOLD SEPARAT

SPRING

1шт.

30

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

31

1266921C2

KIT

ROTATING KIT ASSY, Includes Ref. 22 - 30

1шт.

32

NSS

NOT SOLD SEPARAT

CONTROL PISTON

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET

1шт.

34

631599C91

BEARING

1шт.

35

NSS

NOT SOLD SEPARAT

ROLL PIN

2шт.

36

1266918C1

PLATE

BACKPLATE ASSY

1шт.

37

1266917C1

GASKET

compensator

1шт.

38

NSS

NOT SOLD SEPARAT

CAP SCREW

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING

1шт.

40

1266916C1

JET

COMPENSATOR ASSY

1шт.

41

NSS

NOT SOLD SEPARAT

CAP SCREW

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING

2шт.

43

NSS

NOT SOLD SEPARAT

PLUG

1шт.

1266920C1

PACKAGE

KIT, seal repair, Includes Ref. 1, 2, 4, 12, 14, 16, 33, 37, 39 and 42

1шт.
