Запчасти Case IH 5088 (10-01) - HYDRAULICS, PPH PISTON PUMP AND CONNECTIONS (07) - HYDRAULICS

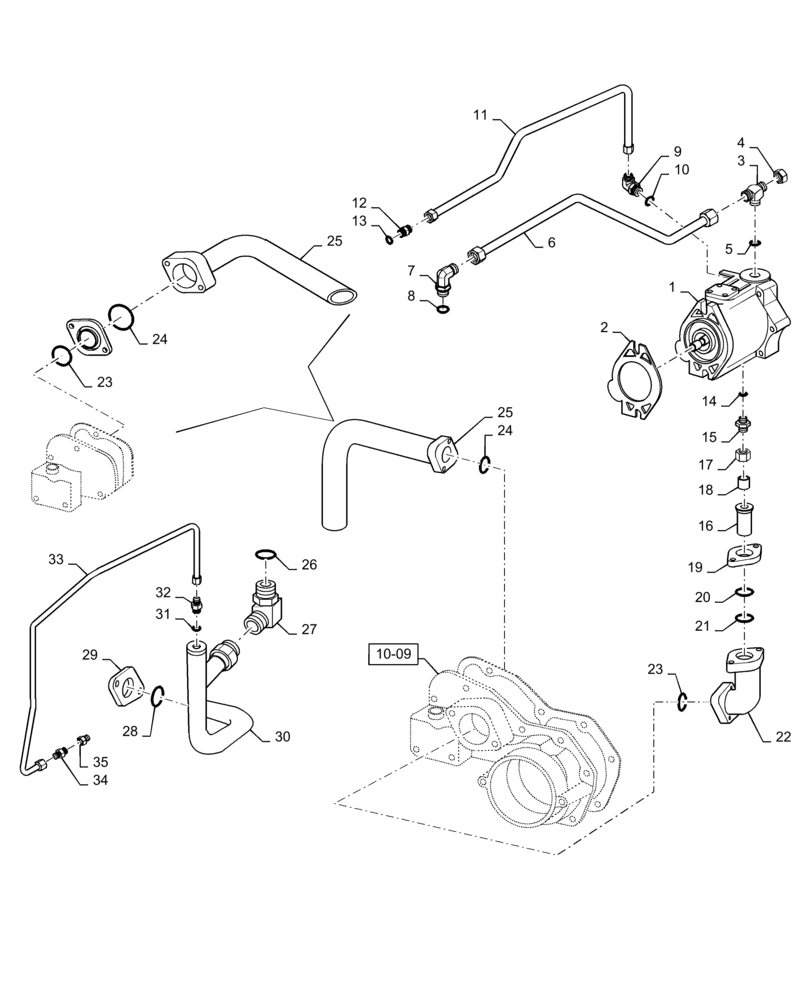

Схема запчастей Case IH 5088 - (10-01) - HYDRAULICS, PPH PISTON PUMP AND CONNECTIONS (07) - HYDRAULICS
18
22
27
10-09
4
29
23
23
5
3
20
28
9
35
16
26
31
25
12
25
14
34
8
6
13
33
11
15
21
10
24
30
24
1
7
17
19
32
2

Артикул

Название

Примечание

Количество

1

142867C92

PUMP

ASSY, hyd piston, Sperry Vickers, new

1шт.

1

1282374C91

REMAN-HYD PUMP

Pump Assy, Hydraulic Piston, Sperry Vickers, Renewed, For Serviceable Components See Hydraulic Piston Pump Elsewhere This Group

1шт.

1

1949007C1

CORE-HYDRAULIC PUMP

Return Number, Hydraulic Pump

1шт.

1

140707C93

HYDRAULIC PUMP

PUMP ASSY, hyd piston, Cessna, Order pump assy, 142867C92, tube assy, 149090C3, tube assy, 149089C2, connector, 9410209, o-ring, 301016R1, manifold, 144250C1 and gasket, 144169C1, For serviceable components see hyd piston pump elsewhere this unit

1шт.

5088 tractors w/serial no. 6603 and below, 5288 tractors w/serial no. 4437 and below, 5488 w/serial no. 2467 and below.

1шт.

931350R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 pln class 8.8

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

2шт.

2

144169C1

GASKET

hyd pump

1шт.

3

9411122

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring Br

1 C-Z hyd fld tube adj

1шт.

4

9403376

CAP,37 Degree, 1 5/16"-12

1 C-Z hyd fld tube

1шт.

5

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

6

149090C3

HYD TUBE,1" OD, 615.05, 156.4 mm Length

TUBE ASSY, pump pressure to aux valve mtg bracket, For use w/pump 142867C92

1шт.

6

144373C2

HYD TUBE,25.4 mm OD, 667.558 mm Length

TUBE ASSY, pump pressure to aux valve mtg bracket, For use w/pump 140707C92

1шт.

5088 tractors w/serial no. 6603 and below, 5288 tractors w/serial no. 4437 and below, 5488 w/serial no. 2467 and below.

1шт.

7

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1 C-Z hyd fld adj 90 deg

1шт.

8

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

9

224611C1

ELBOW

9/16-18 hyd 37 deg fld 7/16-20 adj str thd 90 deg

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

11

149089C2

HYD TUBE

TUBE ASSY, pump signal, For use w/pump 142867C92

1шт.

11

148865C2

HYD TUBE

TUBE ASSY, pump signal, For use w/pump 140707C92

1шт.

5088 tractors w/serial no. 6603 and below, 5288 tractors w/serial no. 4437 and below, 5488 w/serial no. 2467 and below.

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

14

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 OD tube class 6, For use w/pump 142867C92

1шт.

14

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube class 6, For use w/pump 140707C93

1шт.

5088 tractors w/serial no. 6603 and below, 5288 tractors w/serial no. 4437 and below, 5488 w/serial no. 2467 and below.

1шт.

15

9410209

HYD CONNECTOR,1 7/8"-12, 37 Degree x 1 7/8"-12, Pipe

CONNECTOR, 1-1/2 C-Z hyd fld short swvl, For use w/pump 142867C92

1шт.

15

25076R1

UNION,1 7/8"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR, C-Z hyd 1-1/2 to 1-1/4 shtf, For use w/pump 140707C93

1шт.

16

149069C2

HYD TUBE,38.1 mm OD, 82 mm Length

TUBE, suction

1шт.

17

9403534

NUT,37 Degree, 1 7/8"-12, Type B

1-1/2 C-Z hyd fld tube style b

1шт.

18

9403456

SLEEVE,37 Degree, 1 1/2" Tube

1-1/2 C-Z hyd fld tube

1шт.

19

146915C2

RETAINER

suction tube

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3 mm phc

2шт.

20

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 class 5

1шт.

21

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 class 5

1шт.

22

144250C1

MANIFOLD

pump to filter base, For use w/pump 142867C92

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

22

139229C1

MANIFOLD

pump to filter base, For use w/pump 140707C93

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

23

22408R1

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2-3/8 x 2-5/8 class 5

1шт.

24

22410R1

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

2-7/8 x 3-1/8 class 5

1шт.

25

139230C1

TUBE,50.8 mm OD

ASSY, PPH suction

1шт.

26

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 OD tube class 6, For use w/pump, 142867C92

1шт.

26

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube class 6, For use w/pump, 140707C93

1шт.

27

9410983

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring

1-1/2 C-Z hyd fld adj 90D, For use w/pump 142867C92

1шт.

27

1287752C1

ELBOW

1-1/2 to 1-1/4 adj 90 deg reducer, For use w/pump 140707C93

1шт.

28

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 class 5

1шт.

29

1250270C2

RETAINER

suction tube

1шт.

930141R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 pln class 8.8

2шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

2шт.

30

1280838C1

TUBE,153 mm Length

ASSY, pump inlet, For use w/pump, 142867C92

1шт.

30

1280844C1

TUBE ASSY.,1.5" OD, 164, 75 mm Length

TUBE ASSY, pump inlet, For use w/pump, 140707C93

1шт.

31

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

32

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

33

1280917C1

HYD TUBE

TUBE ASSY, pump tube drain

1шт.

34

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, 1/4 C-Z hyd flared tube

1шт.

35

221-87

REDUCER,1/2" NPT x 1/8" NPT

ADAPTER, 1/2 to 1/8 pln out/h/hd pipe

1шт.

Выбрано товаров: 60
