Запчасти Case IH 5088 (13-38) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONER CONNECTIONS (05) - SUPERSTRUCTURE

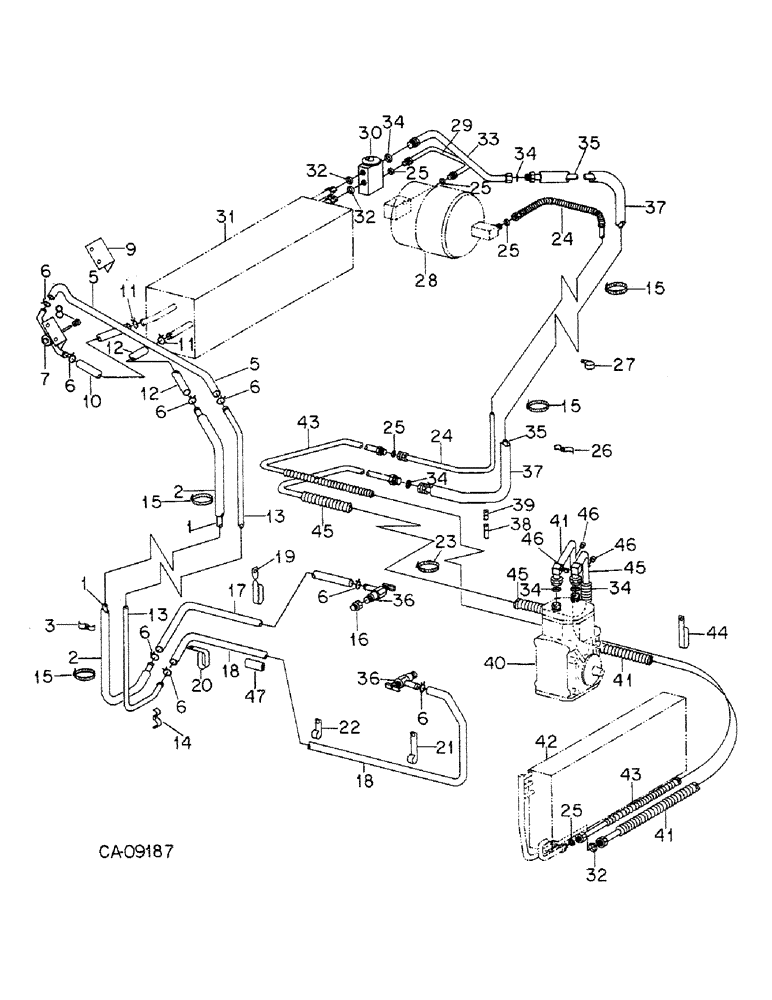

Схема запчастей Case IH 5088 - (13-38) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONER CONNECTIONS (05) - SUPERSTRUCTURE
31
43
5
32
6
37
47
1
12
39
6
26
15
24
25
6
10
45
27
6
18
8
6
22
40
25
25
38
13
46
34
6
45
1
14
46
20
28
19
41
25
34
36
6
35
42
21
15
11
16
15
41
46
6
45
2
23
2
44
35
29
34
13
32
2
41
34
7
17
11
30
9
25
5
43
36
32
34
15
33
3
37
24
18

Артикул

Название

Примечание

Количество

1

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

2

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

INSULATION, heater inlet tube

1шт.

3

143410C1

CLIP

CLIP, one hole double

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal p/hdcr tap

1шт.

118461C1

COVER

COVER, molded rubber tip

1шт.

4

NOT USED

1шт.

5

HOSE, valve outlet to outlet tube, Use 23 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

8шт.

7

111221C4

VALVE

VALVE, heater control

1шт.

8

111282C1

KNOB

KNOB, heater control

1шт.

9

109134C1

BRACKET

BRACKET, heater control valve

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 polyseal p/hdcr tap

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, Cross Pan Hd, #10-24 x 1/2"

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

NUT, 10-24 znd lock

2шт.

10

HOSE, heater core to control valve, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

11

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, no. 14 type E spring wire hose

2шт.

12

HOSE, heater inlet tube to core, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

13

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

14

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

111619C1

STRAP

STRAP, adjustable

6шт.

16

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER, 1/2 to 3/8 pln out/h/hd pipe

1шт.

17

HOSE, heater inlet, Use 50 in. of 5/8 ID heater hose from bulk roll marked 1255859C1

1шт.

18

HOSE, heater outlet, Use 92 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

19

1250507C1

CLIP

CLIP, twisted double hose

1шт.

20

1250508C1

CLAMP

CLIP, double hose, bent, under platform, front

1шт.

30284R1

NUT,M10, Cl 10

NUT, M10 class 10

1шт.

933965R1

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

21

1255749C1

CLAMP

CLAMP, straight hose

1шт.

22

141871C2

CLAMP

CLAMP, straight, inlet hose

1шт.

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

BOLT, M8 x 12 phc class 10.9

2шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

2шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

2шт.

23

NOT USED THIS APPLICATION

1шт.

24

143114C1

TUBE

TUBE ASSY, liquid

1шт.

25

359158R1

O-RING,0.301" ID x 0.07" Width

O-RING, -011, 70 Duro, .031" ID x .070" Thk

5шт.

26

143411C1

CLAMP

CLAMP, A/C tubes

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal p/hdcr tap

1шт.

118461C1

COVER

COVER, molded rubber tip

1шт.

27

NOT USED IN THIS APPLICATION

1шт.

28

RECEIVER, dryer, Refer to evaporator-heater core, blower and related parts this group for additional service parts

1шт.

29

1250438C1

TUBE ASSY.

TUBE ASSY, receiver-dryer

1шт.

30

118321C1

VALVE

VALVE, bulbless expansion, 1-1/2 ton

1шт.

30

118321C1GV

VALVE

VALVE, bulbless expansion, 1-1/2 ton

1шт.

31

CORE, comb evaporator-heater, Refer to evaporator-heater core, This group for additional service parts

1шт.

32

375271R1

O-RING,0.426" ID x 0.07" Width

O-RING, 7/16 x 9/16 class 5

3шт.

33

143267C3

TUBE,0.625" OD, 196 mm Length

TUBE ASSY, evaporator discharge

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, 9/16 x 11/16 class 5

5шт.

35

143115C1

TUBE,0.625" OD, 1735 mm Length

TUBE ASSY, suction, hose

1шт.

36

301803R91

VALVE

VALVE ASSY, heater inlet/outlet shutoff

2шт.

37

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

38

1250580C1

CLAMP

CLAMP, closed one hole

1шт.

39

1250581C1

CLAMP

CLAMP, liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

40

COMPRESSOR ASSY, air conditioner, Refer to compressor, pulley and belts this group for additional service parts

1шт.

41

143120C3

HOSE

HOSE ASSY, compressor discharge, Includes two caps, 118188C1, o-ring, 371544R1 and o-ring, 375271R1

1шт.

1262724C1

CLIP, compressor discharge hose

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, 3/8 x 1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

CONDENSER ASSY, Refer to condenser and mounting this group for additional service parts

1шт.

43

143107C2

FLEXIBLE HOSE

HOSE ASSY, chassis liquid, Includes o-ring, 359158R1

1шт.

44

1255749C1

CLAMP

CLIP, hose, chassis front

1шт.

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

BOLT, M8 x 12 phc class 10.9

1шт.

934309R1

LOCK WASHER,M8

LOCK WASHER, M8

1шт.

30167R1

NUT,M8, Cl 10

NUT, M8 phc class 10

1шт.

45

143130C4

HOSE

HOSE ASSY, chassis section, Includes two caps, 118188C1 and o-ring, 371544R1

1шт.

46

118188C1

CAP

CAP

3шт.

47

392910R1

BUMPER

SPARE PART BUMPER, heater hose

1шт.

1250585C1

CLAMP

CLIP, hose chassis lines, rear

1шт.

1262082C1

CLAMP

CLIP, double hose

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

2шт.

1255739C1

CLAMP

CLIP, hose, under platform, rear

1шт.

30284R1

NUT,M10, Cl 10

NUT, M10 class 10

1шт.

933965R1

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

TAPE, insulation, Use 94 in. from bulk roll marked 118468C1

1шт.

Выбрано товаров: 76
