Запчасти Case IH 3788 (08-09) - ELECTRICAL, SWITCHES, FUSES AND JUNCTION BLOCK (06) - ELECTRICAL

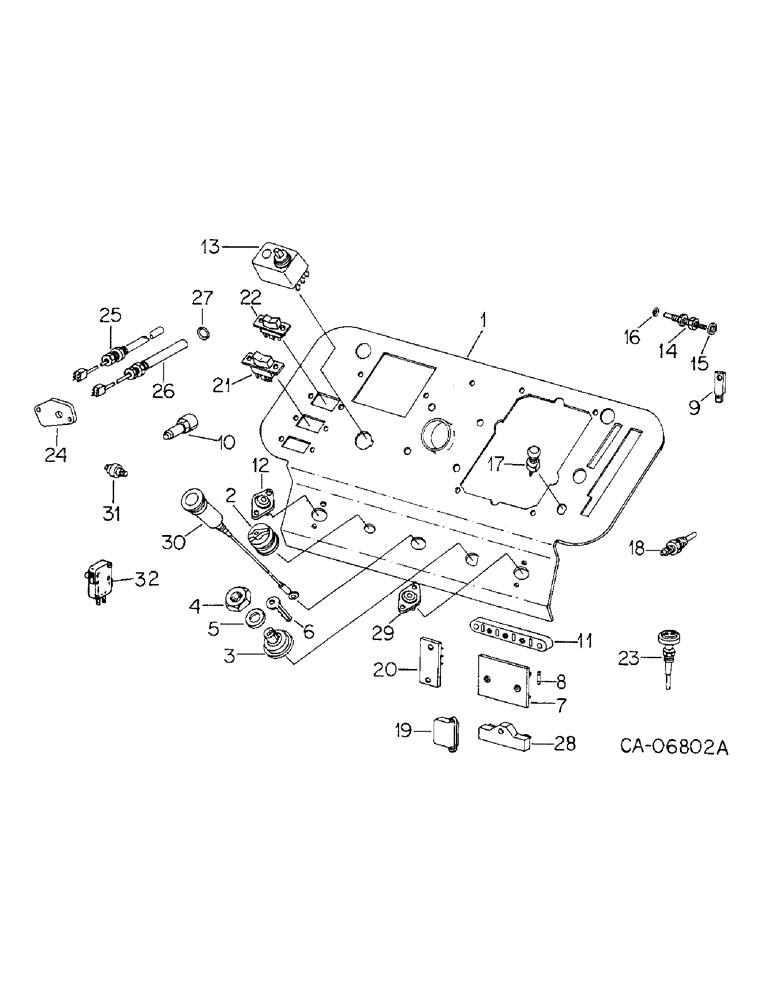

Схема запчастей Case IH 3788 - (08-09) - ELECTRICAL, SWITCHES, FUSES AND JUNCTION BLOCK (06) - ELECTRICAL
19
9
11
3
20
29
22
6
17
5
32
13
26
8
4
31
21
16
23
18
10
7
27
25
1
28
2
14
12
30
15
24

Артикул

Название

Примечание

Количество

1

PANEL, instrument, refer to group 11

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

3

107682C1

SWITCH

ASSY, key start

1шт.

4

365502R1

NUT

switch mounting

2шт.

5

375431R1

LOCK WASHER

switch mounting

1шт.

6

131313C1

KEY, IGNITION

switch

1шт.

7

107356C3

BOX

ASSY, fuse, block

1шт.

160052

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

no. 10 - NF x 5/8 znp p/hdcr mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

5шт.

8

9426331

FUSE CARTRIDGE,30 Amp, Type 3AG

FUSE, cartridge type 3AG-30, lt. green, headlights

1шт.

8

9426333

FUSE,15 Amp, Type 3AG

cartridge type 3AG-15, lt. blue, warning lights

1шт.

8

9426868

FUSE,5 Amp, Type 3AG

cartridge type 3AG-5 gage cluster

1шт.

9

384396R1

SPADE TERMINAL,Male

TERMINAL, oil & coolant switches, str

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

121629C2

SWITCH

ASSY, neutral starting

2шт.

11

107355C1

BLOCK

ASSY, junction

2шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

4шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

12

397940R93

SWITCH

ether solenoid push button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, 10 - NF x 1/2 polyseal

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

13

131066C91

SWITCH

FLASHER ASSY, comb. & turn signal, Stewart Warner or

1шт.

13

131209C91

SWITCH

FLASHER ASSY, comb. & turn signal, Lucas Ltd.

1шт.

14

130979C1

SWITCH

brake warning

2шт.

15

121814C1

RETAINER

., switch boot

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

16

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, For brake warning switch

2шт.

17

121705C91

SWITCH

ASSY, inst light dimmer, Consists of

1шт.

146566C1

KNOB

1шт.

109311H

JAM NUT

1шт.

18

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

19

121770C2

TRANSMITTER

MODULE ASSY, low coolant level

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

20

130977C1

RECTIFIER

ASSY, indicator light

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

21

131319C1

SWITCH

ASSY, rocker lower & rear lights

2шт.

22

131320C1

SWITCH

ASSY, rocker headlight, 3 prongs, 195605C1 has 5 prongs, auxiliary switch goes in bottom of three holes

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW, #6 x 3/8 polyseal

6шт.

23

130898C2

ELECTRICAL GAUGE

GAGE, exhaust thermocouple

1шт.

24

121786C2

COVER

RPM transducer mtg

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

2шт.

25

130908C2

TRANSMITTER

RPM transducer

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

26

121869C2

TRANSMITTER

MPH transducer

1шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext lock

1шт.

27

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

28

107558C1

RESISTOR

25 ohm

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

29

397940R93

SWITCH

ASSY, horn button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, 10NF x 1/2 polyseal

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

30

382671R91

CIGAR LIGHTER

PARTS ACCESSORY, cigar lighter

1шт.

31

376855R92

SWITCH

transmission oil pressure

1шт.

32

NOT USED THIS APPLICATION

1шт.

1265486C1

FUSE

150 amp, these are flat steel straps with glass fuse in the middle

1шт.

1265485C1

FUSE

80 amp, these are flat steel straps with glass fuse in the middle

1шт.

121756C2

SENSOR

SENDING UNIT temperature

1шт.
