Запчасти Case IH 3788 (08-07) - ELECTRICAL, CLIPS (06) - ELECTRICAL

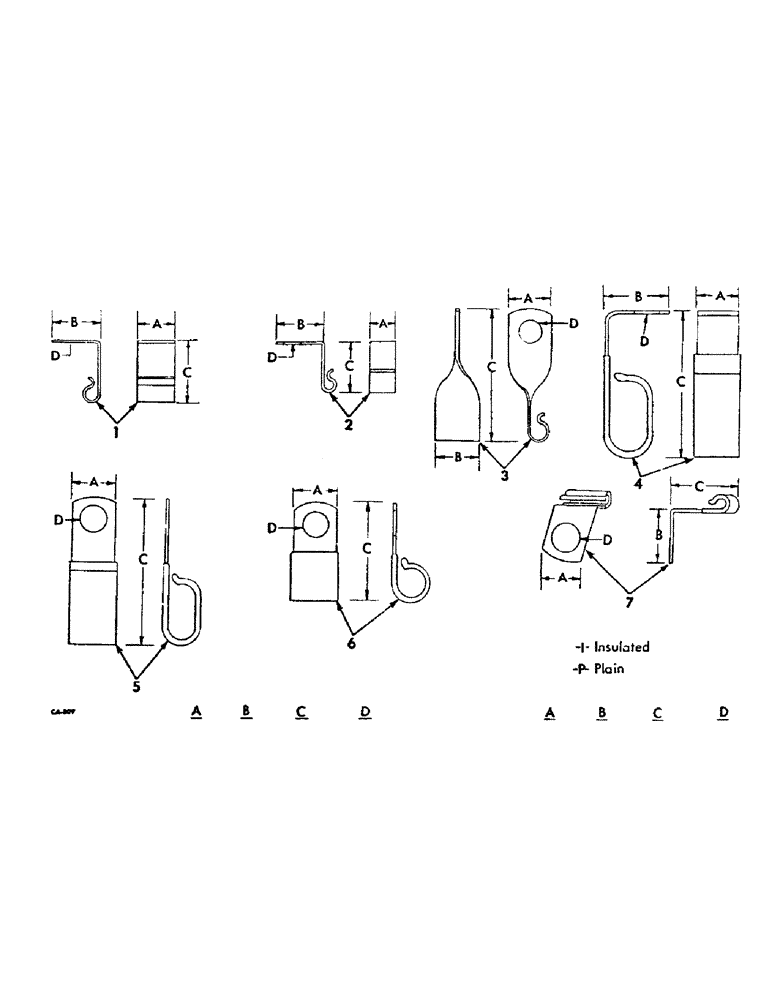

Схема запчастей Case IH 3788 - (08-07) - ELECTRICAL, CLIPS (06) - ELECTRICAL
3
6
4
2
5
7
1

Артикул

Название

Примечание

Количество

1

370383R1

CLIP

alternator cable, twisted

1шт.

INSULATED, 3/4, 15/16, 1-3/4, 15/32

1шт.

1

370383R1

CLIP

solenoid switch cables

1шт.

INSULATED, 3/4, 15/16, 1-3/4, 15/32

1шт.

1

365584R1

CLIP

7 pole connector cables

2шт.

INSULATED, 5/8, 1, 1, 13/32

1шт.

2

365524R1

CLAMP

CLIP, neutral start cable

1шт.

INSULATED, 7/8, 1-5/16, 15/16, 17/32

1шт.

2

146422C1

CLAMP

CLIP, battery cable long

1шт.

INSULATED, 3/4, 7/8, 2-1/2, 13/32

1шт.

3

363660R1

CLIP

main harness, twisted

1шт.

INSULATED, 3/4, 3/4, 2-5/8, 13/32

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3

363660R1

CLIP

main cable harness, twisted

1шт.

INSULATED, 3/4, 3/4, 2-5/8, 13/32

1шт.

363660R1

CLIP

alternator cable, twisted

1шт.

INSULATED, 3/4, 3/4, 2-5/8, 13/32

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, neutral start cables

1шт.

INSULATED, 3/4, 1-9/16, 13/32

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front cable harness

7шт.

INSULATED, 3/4, 1-9/16, 13/32

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, engine harness

2шт.

INSULATED, 3/4, 1-9/16, 13/32

1шт.

6

362121R1

CLIP

alternator & thermocouple cables

2шт.

INSULATED, 3/4, 1-5/8, 9/32

1шт.

6

146421C1

CLAMP

CLIP, battery cable short

1шт.

INSULATED, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

front cable harness

2шт.

INSULATED, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

solenoid switch cables

1шт.

INSULATED, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

alternator & thermocouple cables

2шт.

INSULATED, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

engine harness

1шт.

INSULATED, 3/4, 2-1/8, 15/32

1шт.

6

362126R1

CLIP

main harness

1шт.

INSULATED, 3/4, 3-5/8, 13/32

1шт.

6

362126R1

CLIP

main cable harness

1шт.

INSULATED, 3/4, 3-5/8, 13/32

1шт.

6

362126R1

CLIP

park lock neutral switch cable

1шт.

INSULATED, 3/4, 3-5/8, 13/32

1шт.

6

383622R1

CLIP

brake wear warning cables

1шт.

INSULATED, 1, 1-11/16, 17/32

1шт.

6

384557R1

CLIP

main harness

1шт.

INSULATED, 3/4, 1-5/8, 9/32

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

6

384557R1

CLIP

front cable harness

1шт.

INSULATED, 3/4, 1-5/8, 9/32

1шт.

7

384556R1

CLAMP

CLIP, transmission oil switch cable

1шт.

INSULATED, 3/4, 1, 1-61/64, 15/32

1шт.

104393C2

CLAMP

CLIP, main cable harness

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

104389C1

CLIP

instrument light cables

2шт.

406123R1

CLAMP

CLIP, alternator cable

1шт.

Выбрано товаров: 61
