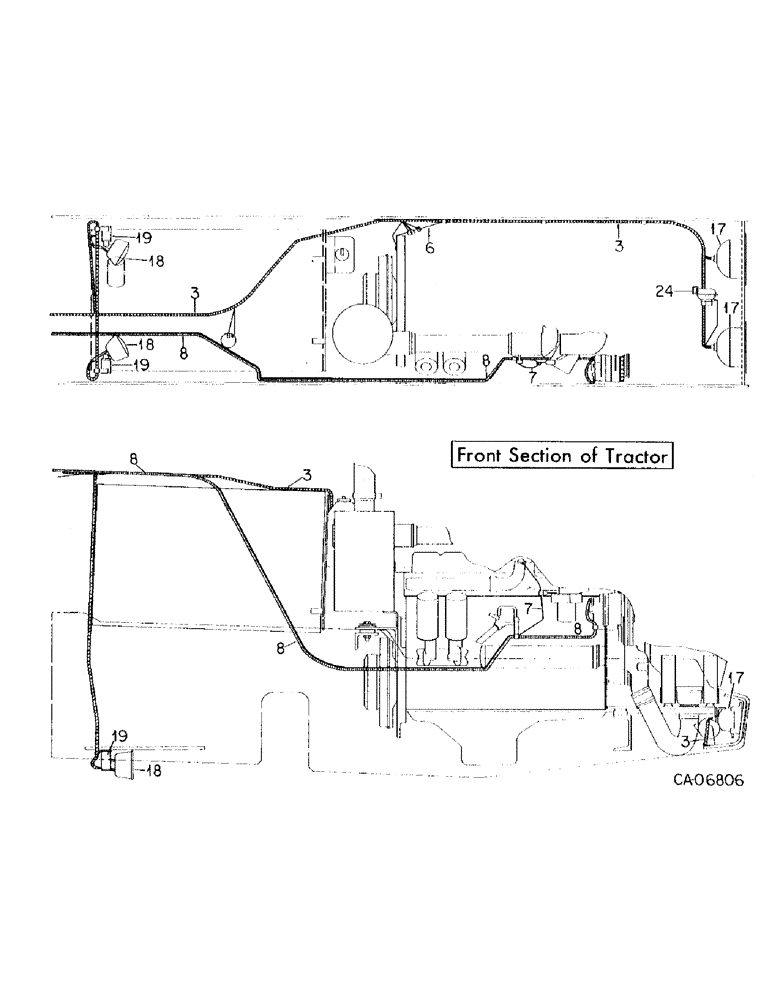

Запчасти Case IH 3788 (08-02[B]) - ELECTRICAL, STARTING AND LIGHTING, FRONT SECTION OF TRACTOR (06) - ELECTRICAL

3

132533C3

HARNESS

HARNESS ASSY, front cable

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Lock front harness

15шт.

6

132683C2

CABLE

CABLE ASSY, engine, Serial Range: grd-chassis

1шт.

7

131292C92

HARNESS

HARNESS ASSY, digital data monitor

1шт.

223-36

FUSE,2 Amp, Type 3AG

FUSE, type agc 2 amp, furnished as part of 131292C91

2шт.

8

131196C92

CABLE

CABLE ASSY, alternator, Replaces 138758C91

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 131196C91, Used on cranking motor solenoid switch, s, terminal

1шт.

17

131199C91

LIGHT

LIGHT ASSY, rectangular head, only serviceable item is:

2шт.

The overall dimensions for part numbers 131199C91 and 146512C91 are identical. The assembly also takes the same sealed beam.

1шт.

8-2 refer #17 (P/N 131199C91) - only serviced part is lamp assy A139458. (set screws [adj.] NSS)

1шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 3388, Serial Range: -10490

1шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 3588, Serial Range: -13053

1шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 3788, Serial Range: -10409

1шт.

17

146512C91

INTERIOR LIGHT

LIGHT ASSY, rectangular head, only serviceable item is:

2шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 3388, Start Serial: 10491

1шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 33588, Start Serial: 13054

1шт.

131423C1

LAMP

LAMP ASSY, sealed beam unit, 3788, Start Serial: 10410

1шт.

27118R1

SCREW, no. 10 x 1 phc o/hdcr mach

4шт.

157190

SCREEN

SCREW, no. 10 x 1-1/2 phc o/hdcr mach

4шт.

18

131367C94

LIGHT, WARNING

LIGHT ASSY, front axle flood, only serviceable items are lamp, 131348C1 and shield, 65003C2

2шт.

19

141895C1

BRACKET

BRACKET, lamp

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051)

4шт.

24

411949C91

HORN

HORN ASSY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.
