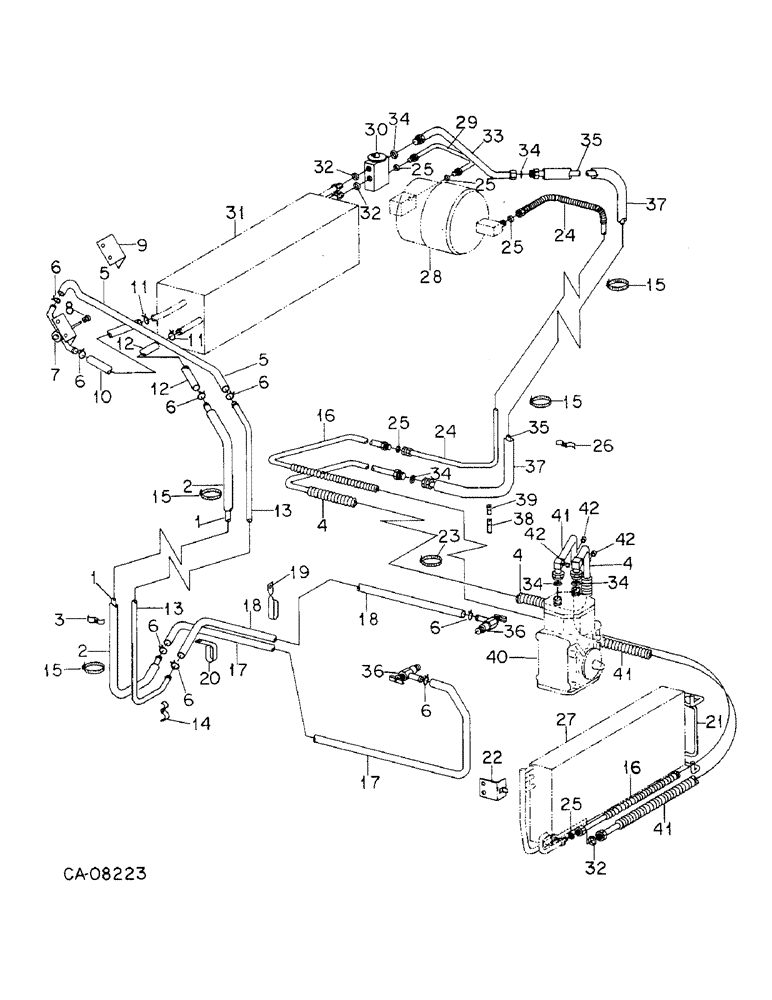

Запчасти Case IH 3788 (13-36) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONER CONNECTIONS, CABS WITH SERIAL NO. 107807 AND ABOVE (05) - SUPERSTRUCTURE

1

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

2

143327C1

INSULATOR

INSULATION, heater inlet tube

1шт.

3

143410C1

CLIP

one hole double

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

118461C1

COVER

molded rubber tip

2шт.

4

1267664C1

HOSE

ASSY, chassis suction, service parts are

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

1шт.

118188C1

CAP

1шт.

5

HOSE, valve outlet to outlet tube, Use 23 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

8шт.

7

111221C4

VALVE

heater control

1шт.

8

111282C1

KNOB

heater control

1шт.

9

109134C1

BRACKET

heater control valve

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10 x 3/8 polyseal tap

1шт.

1276054C1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal mach

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 znd reg lock

2шт.

10

HOSE, heater core to control valve, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

11

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, no. 14 type E spring wire hose

1шт.

12

HOSE, heater inlet tube to core, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

13

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

14

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

111619C1

STRAP

adjustable

5шт.

16

1250492C3

HOSE

ASSY, chassis liquid, service parts are

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

118188C1

CAP

1шт.

17

HOSE, heater inlet, Use 158 in. of 5/8 I.D. heater hose from bulk roll marked 117724C1

1шт.

18

HOSE, heater outlet, Use 208 in. of 5/8 I.D. heater hose from bulk roll marked 117724C1

1шт.

19

1250507C1

CLIP

twisted double hose

1шт.

20

1250508C1

CLAMP

CLIP, double hose

1шт.

21

127361C2

ROD

HINGE, condenser

1шт.

938117R1

NUT

5/16-18 flange lock

2шт.

22

NOT USED THIS APPLICATION

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP, adjustable tie

1шт.

24

143114C1

TUBE

ASSY, liquid

1шт.

25

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

5шт.

26

143411C1

CLAMP

a/c tubes

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

27

118316C2

CONDENSER

ASSY

1шт.

28

RECEIVER-DRYER, refer to evaporator-heater core this group for components

1шт.

29

1250438C1

TUBE ASSY.

TUBE ASSY, receiver-dryer

1шт.

30

118321C1

VALVE

bulbless expansion, 1/2 ton

1шт.

30

118321C1GV

VALVE

bulbless expansion, 1/2 ton

1шт.

31

CORE, comb evaporator-heater, refer to evaporator-heater core, this group for components

1шт.

32

3752711R

O-RING, 7/16 x 9/16 class 5

3шт.

33

143267C3

TUBE,0.625" OD, 196 mm Length

ASSY, evaporator discharge

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

5шт.

35

143115C1

TUBE,0.625" OD, 1735 mm Length

ASSY, suction

1шт.

36

301803R91

VALVE

ASSY, heater inlet/outlet shutoff

2шт.

37

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

38

1250580C1

CLAMP

closed one hole

1шт.

39

1250581C1

CLAMP

liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

COMPRESSOR ASSY, air conditioner, refer to compressor, pulleys, and belts this group for additional service parts

1шт.

41

118327C1

HOSE,10.32mm ID x 1295mm L

ASSY, compressor discharge

1шт.

REF ITEM 41- WE ARE MISSING THE VALVE ASSEMBLY, DISCHARGE HOSE P/N 118329C91 THAT CONNECTS THE HOSE TO THE COMPRESSOR. THIS DESIGN WAS THE UPGRADE FROM THE HOSE ASSEMBLY P/N 1250493C4 WHICH PICTORIALLY IS SHOWN AS ITEM 41. 7/16/96 JBEDFORD.

1шт.

42

118188C1

CAP

3шт.

TAPE, insulation, Use 94 in. from bulk roll marked 118468C1

1шт.
