(13-31) - SUPERSTRUCTURE, BLOWER ASSY, CAB WITH SERIAL NO. 107806 AND BELOW

Запчасти Case IH 3788 (13-31) - SUPERSTRUCTURE, BLOWER ASSY, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

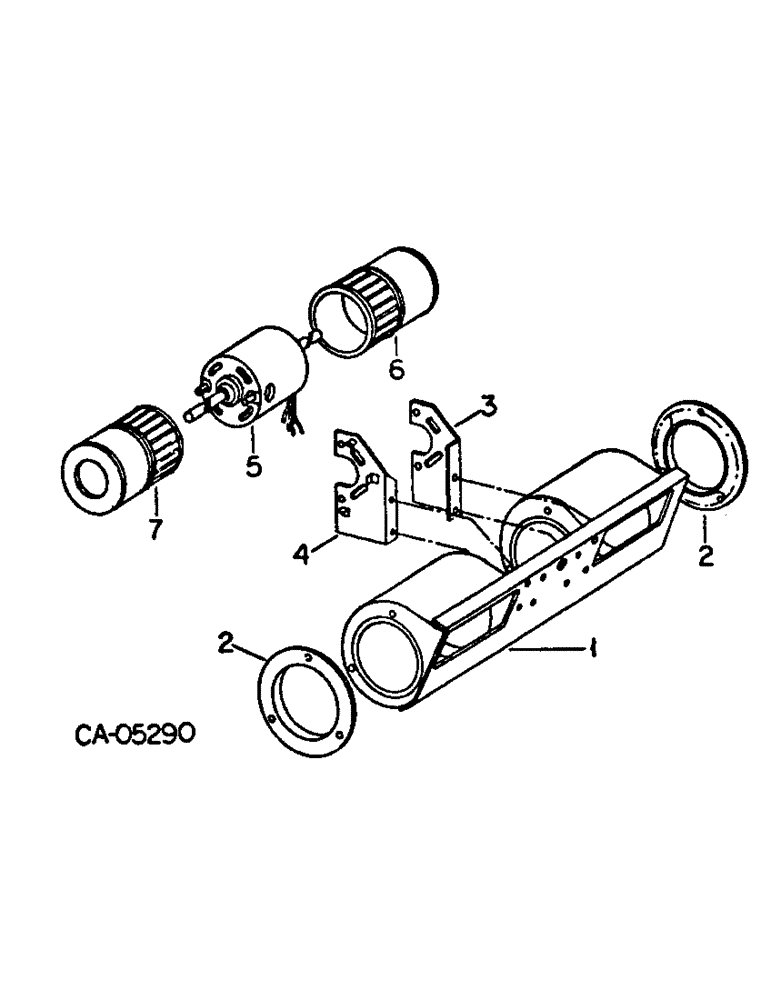

Схема запчастей Case IH 3788 - (13-31) - SUPERSTRUCTURE, BLOWER ASSY, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE
3
5
7
6
2
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

109246C94

BLOWER

ASSY, pressurizer, SGM Co.

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSY, weldment

1шт.

2

65010C1

RETAINER

inlet

2шт.

3

539017R1

SUPPORT

motor

1шт.

4

539019R2

SUPPORT

BRACKET ASSY

1шт.

5

117784C5

MOTOR, ELECTRIC

MOTOR, DC blower

1шт.

6

539018R2

FAN

wheel LH

1шт.

7

539077R2

FAN

wheel RH

1шт.
