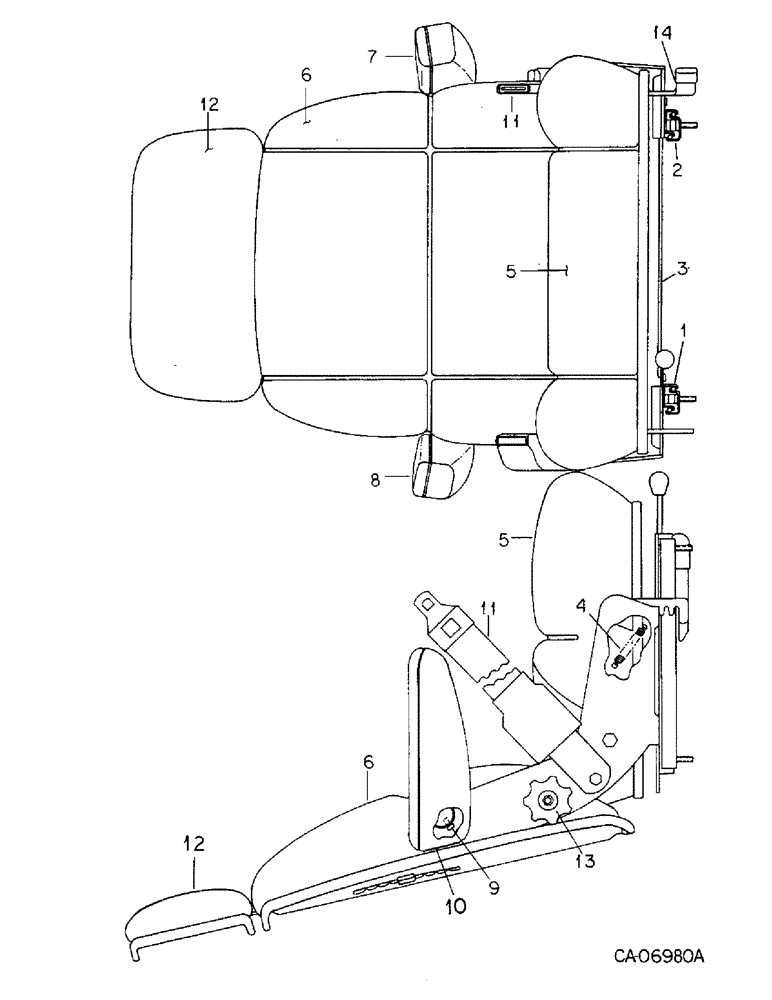

Запчасти Case IH 3788 (13-12) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, SEARS (05) - SUPERSTRUCTURE

118591C91

SEAT

ASSY, burgundy hyd, optional w/143357C91

1шт.

143358C91

SEAT

ASSY, western hyd, optional w/143331C91

1шт.

120196C1

SPACER

1шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

139062C1

SLIDE

ASSY, w/handle

1шт.

2

139064C1

SLIDE

ASSY, w/o handle

1шт.

3

139066C1

ROD

latch connecting

1шт.

4

64926C1

SPRING

slide adjuster

2шт.

5

143430C1

SEAT

CUSHION, seat

1шт.

For burgundy seats only.

1шт.

5

143436C1

CUSHION

seat

1шт.

For western seats only.

1шт.

6

143431C1

SEAT

CUSHION, back

1шт.

For burgundy seats only.

1шт.

6

143437C1

CUSHION

back

1шт.

7

143432C1

ARM

REST ASSY, LH

1шт.

For western seats only.

1шт.

7

143438C1

ARM

REST ASSY, LH

1шт.

For western seats only.

1шт.

8

143433C1

KIT

ARMREST ASSY, RH

1шт.

For burgundy seats only.

1шт.

8

143439C1

ARM

RETS ASSY, RH

1шт.

For western seats only.

1шт.

9

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

2шт.

10

139071C1

PLATE

cover LH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 phc p/hdcr tap

1шт.

10

139072C1

PLATE

cover RH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 phc p/hdcr tap

1шт.

11

143434C1

BELT

Seat

1шт.

For burgundy seats only.

1шт.

11

143440C1

SEAT BELT

SAFETY BELT

1шт.

For western seats only.

1шт.

12

143435C1

CUSHION

upper backrest

1шт.

For burgundy seats only.

1шт.

12

143441C1

CUSHION

upper backrest

1шт.

For western seats only.

1шт.

13

1267543C1

KNOB

ASSY, backrest adj.

2шт.

14

1267544C1

LEVER

ASSY, seat tilt

2шт.
