Запчасти Case IH 3788 (07-54) - DRIVE TRAIN, TORQUE AMPLIFIER, GEAR DRIVE TRACTORS, 3788 TRACTORS (04) - Drive Train

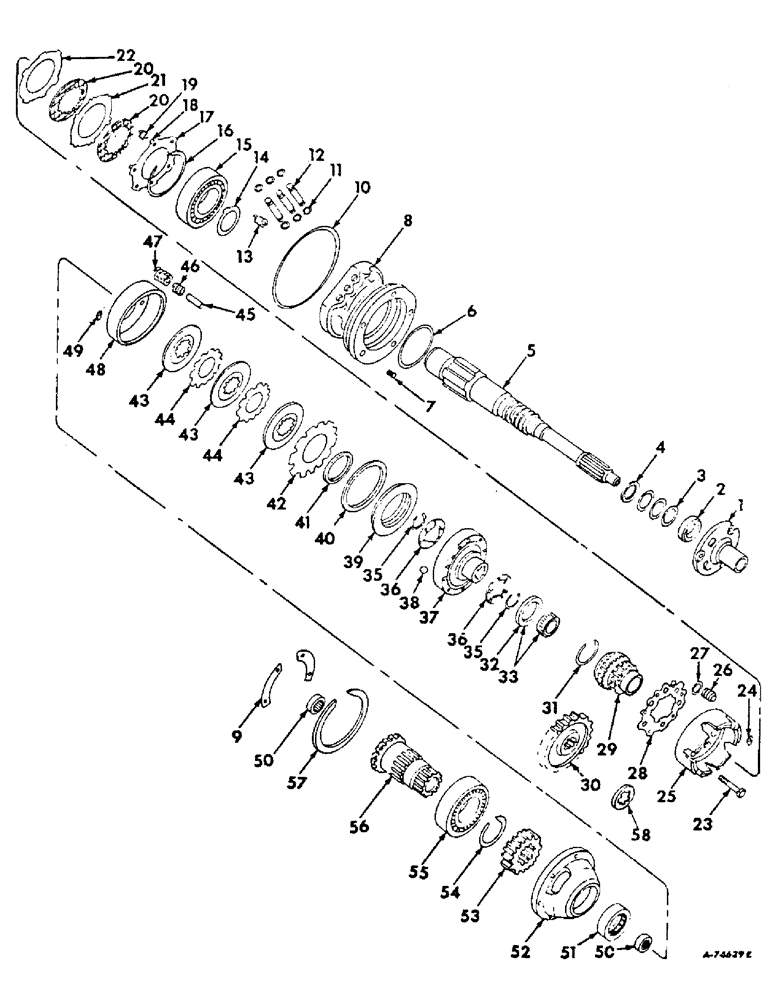

Схема запчастей Case IH 3788 - (07-54) - DRIVE TRAIN, TORQUE AMPLIFIER, GEAR DRIVE TRACTORS, 3788 TRACTORS (04) - Drive Train
16
57
35
35
49
53
52
8
31
51
22
11
20
43
36
21
7
12
13
26
9
18
33
43
39
1
46
58
47
6
17
5
44
37
42
44
50
29
23
43
54
27
45
30
14
10
3
32
15
20
3
19
40
55
56
24
25
50
38
41
36
4
48
28

Артикул

Название

Примечание

Количество

234572A2

REMAN-TORQUE AMPLIF

IER

1шт.

1944039C2

CORE-TORQUE AMPLIF

Return Part Number

1шт.

1944096C2R

REMAN-TORQUE AMPLIF

IER

1шт.

1944113C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

1944096C1R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944097C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8 pln type 5

3шт.

1

67837C1

CAGE

CAGE, PTO drive shaft bearing

1шт.

2

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

SEAL, IPTO oil shaft brg cage

1шт.

3

380234R1

RING

RING, clutch shaft seal

3шт.

4

384182R1

RETAINER

RETAINER, PTO drive shaft brg

1шт.

5

SHAFT W/THREE SCREWS, 222459, clutch

1шт.

Not service separately, Order package, 1251699C91 or 1277207C91.

1шт.

6

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING, 5 x 5-1/4 x 1/8, bearing cage sealing

1шт.

7

222459

SCREW

SCREW, 5/16-18 x 5/16 f-pt set

3шт.

8

68136C1

CARRIER

CARRIER ASSY, torque amplifier and PTO drive

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8 x 7/8 pln type 5

5шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

BOLT, 3/8 x 1-1/8 pln type 5

4шт.

10

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

O-RING, 7-1/2 x 7-3/4 x 1/8, torque amplifier and PTO drive carrier

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, 1/2 x 5/8 x 1/16, oil inlet tube

6шт.

12

382353R1

HYD TUBE,0.625" OD, 4.32" Length

TUBE, oil inlet

3шт.

13

382337R1

SPRING

SPRING, torque amplifier drive gear lub baffle

2шт.

14

380238R4

BAFFLE

BAFFLE, torque amplifier drive gear lub

1шт.

15

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, torque amplifier drive gear

1шт.

16

382346R1

RING, SNAP

RING SNAP RING, torque amplifier lock-up clutch internal snap

1шт.

17

PLATE ASSY, torque amplifier lock-up clutch backing

1шт.

Not serviced separately, Order package, 75036C92.

1шт.

18

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

6шт.

19

382666R1

VALVE SPRING

SPRING, lock-up clutch

6шт.

20

PLATE, torque amplifier lock-up clutch driving

2шт.

Not serviced separately, Order package, 75036C92.

1шт.

21

PLATE, torque amplifier lock-up clutch driving

1шт.

Not serviced separately, Order package, 75036C92.

1шт.

22

PLATE, torque amplifier lock-up clutch piston backing

1шт.

Not serviced separately, Order package, 75036C92.

1шт.

23

860300R1

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

BOLT, 7/16-20 x 2-3/4 znd hex-hd

1шт.

24

382339R1

LOCK WASHER

WASHER, torque amplifier clutch carrier lock

3шт.

25

CARRIER, torque amplifier lock-up clutch

1шт.

Not service separately, Order package, 1251699C91 or 1277207C91.

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

BOLT, Hex, 5/16"-24 x 11/16", G5, Full Thd

3шт.

26

382341R1

PISTON

PISTON, torque amplifier lock-up clutch

6шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING, 3/4 x 1 x 1/8, lock-up clutch piston

6шт.

28

382340R2

GASKET

GASKET, torque amplifier lock-up clutch carrier

1шт.

29

GEAR ASSY, torque amplifier drive, 25T

1шт.

Not service separately, Order package, 1251699C91 or 1277207C91.

1шт.

30

68142C2

GEAR

GEAR, torque amplifier drive, 47T

1шт.

31

382665R1

RING

RING, one way clutch retainer internal snap

1шт.

32

381086R1

RING

RING, sprag clutch seal

1шт.

33

73935C91

PACKAGE

PACKAGE, torque amplifier one way clutch, Includes ref. 32

1шт.

34

NOT USED THIS APPLICATION

1шт.

35

336000R1

SNAP RING,#175, 1.640", Ext

RING, hyd clutch carrier snap

2шт.

36

380240R1

THRUST WASHER

WASHER, hyd clutch carrier thrust

2шт.

37

CARRIER ASSY, hyd clutch

1шт.

Not service separately, Order package, 1251699C91 or 1277207C91.

1шт.

38

17006R1

BALL

BALL, 3/16 cr-stl

1шт.

39

380242R1

PISTON

PISTON, hydraulic clutch

1шт.

40

380244R1

SEALING RING

RING, hyd clutch piston outer seal

1шт.

41

380243R1

RING

RING, hyd clutch piston inner seal

1шт.

42

PLATE, hyd clutch piston backing

1шт.

Not serviced separately, Order package, 75036C92.

1шт.

43

PLATE, hyd clutch driven

3шт.

Not serviced separately, Order package, 75036C92.

1шт.

44

PLATE, hyd clutch driving

2шт.

Not serviced separately, Order package, 75036C92.

1шт.

45

380245R2

PIN

PIN, hyd clutch spring guide

9шт.

46

380246R1

SPRING

SPRING, hyd clutch small

9шт.

47

380247R1

SPRING

SPRING, hyd clutch large

9шт.

48

PLATE, hyd clutch backing

1шт.

Not service separately, Order package, 1251699C91 or 1277207C91.

1шт.

49

382347R2

LOCK WASHER

WASHER, hyd clutch backing plate lock

3шт.

50

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, clutch shaft rear needle

2шт.

50

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING, main shaft needle front

1шт.

51

380078R91

NEEDLE BEARING

BEARING, drive gear front

1шт.

52

68138C1

CAGE

CAGE, drive gear bearing

1шт.

53

68042C1

GEAR

GEAR, constant mesh drive, 28T

1шт.

54

68623C1

RING

RING, drive gear external snap

1шт.

55

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, drive gear ball

1шт.

56

68139C1

SHAFT

SHAFT, constant mesh gear quill

1шт.

57

392683R1

RING

RING, drive gear internal snap

1шт.

58

71147C2

SPACER

SPACER, TA driver gear

1шт.

75036C92

KIT

PACKAGE, torque amplifier hyd clutch driven plate overhaul, Consists of ref nos 3, 6, 10, 11, 14, 17, 20, 21, 22, 24, 27, 28, 32, 40, 41, 42, 43, 44 and 49

1шт.

1277207C91

PACKAGE

PACKAGE, TA assy, service, new or

1шт.

1251699C91

PACKAGE

PACKAGE, TA assy service, renewed, Consists of ref nos 3, 5, 7, 8, 10, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, and 49

1шт.

Выбрано товаров: 84
